6. Mechanical installation

WARNING
Electric shock
Death or serious personal injury
‐
A damaged product must be
repaired or replaced by Grundfos
or a service workshop authorized
by Grundfos.
CAUTION
Crushing of feet
Minor or moderate personal injury
‐
Wear safety shoes when opening
the box and handling the product.
CAUTION
Sharp element
Minor or moderate personal injury
‐
Wear protective gloves.
The pump must always be installed
with a horizontal motor shaft within ±
5°.
The pump is a non-submersible pump.
Due to interference of the
touchscreen, keep a distance of
minimum 5 mm from the front of the
operating panel to all conductive
materials, for example, metal cabinets
and cables.

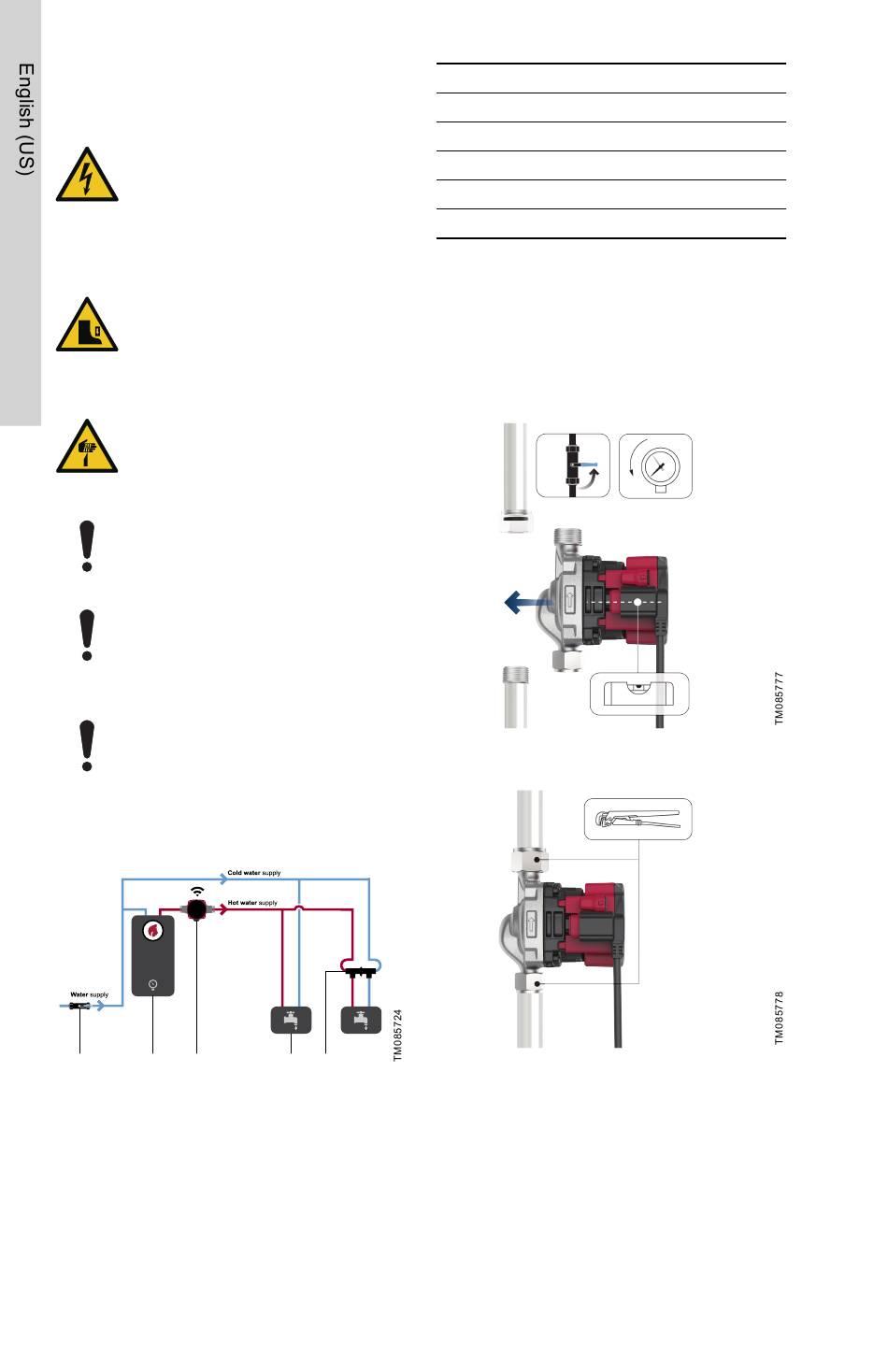

6.1 Installation diagram

A B C
Diagram of ALPHA COMFORT SYSTEM
installation
10

6.2 Mounting the product

The arrows on the pump housing indicate the flow
direction through the pump.
1. Fit the two gaskets supplied, if applicable, with
2. Tighten the fittings.
D E
Pos. Description
A Shut-off valve, cold water supply
B Heater
C ALPHA COMFORT SYSTEM
D Faucet
E Comfort Valve
the pump when you mount the pump in the
pipe. Make sure to install the pump with a
horizontal motor shaft within ± 5°.
