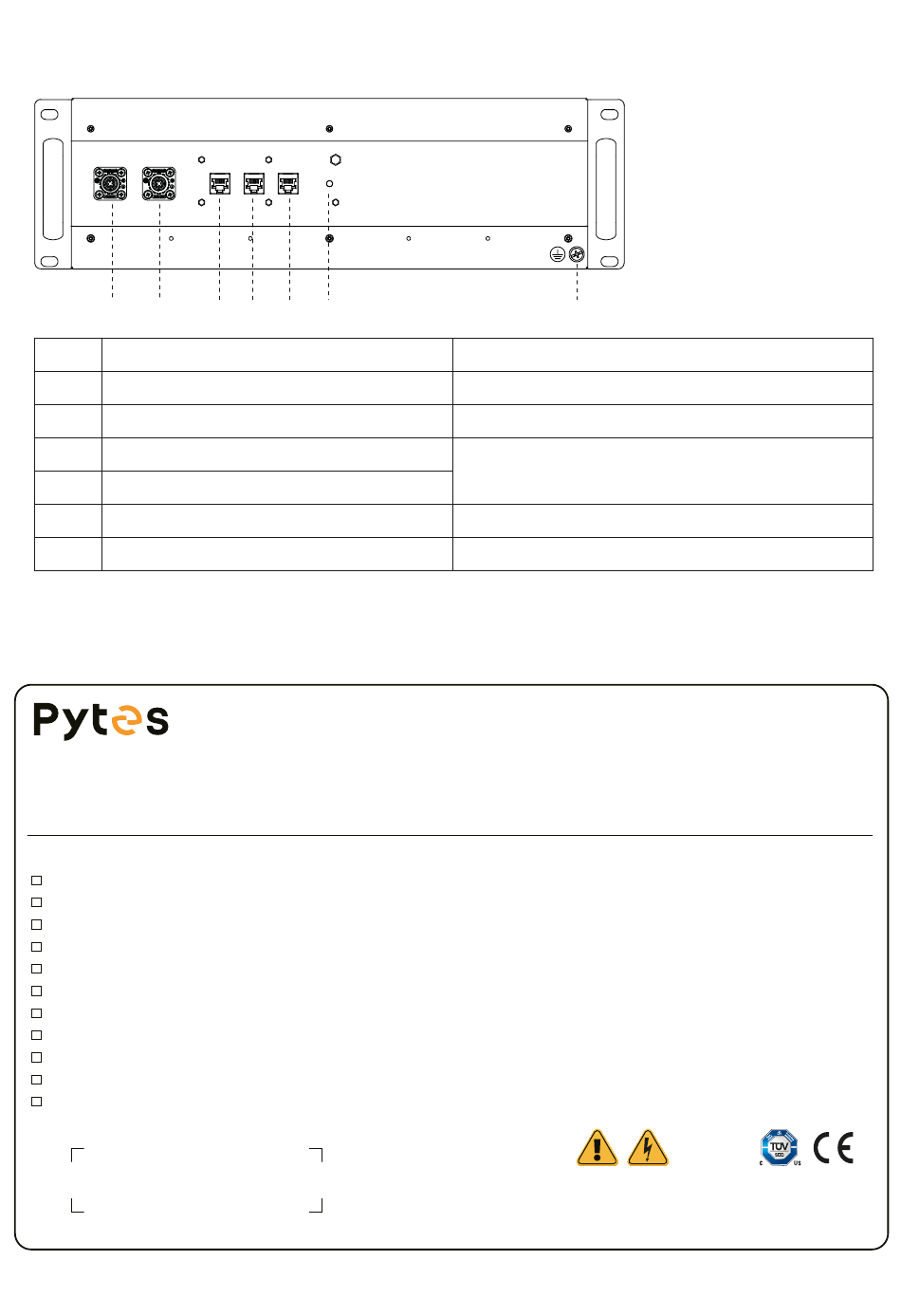

2.2.2 Battery Module

1 2
1 Battery Power Terminal (Positive)
2 Battery Power Terminal (Negative)
3 Console Port
4 Link 0 Port
5 Link 1 Port
6 RUN indicator
7 Grounding Port

2.3 Label Description

Battery Control Unit
Product Model: HV48100 BCU
Ingress Protection Code: IP20
Rechargeable Li-ion Battery System
Battery Model
HV48100 BMU-5
HV48100 BMU-6
HV48100 BMU-7
HV48100 BMU-8
HV48100 BMU-9
HV48100 BMU-10
HV48100 BMU-11
HV48100 BMU-12
HV48100 BMU-13
HV48100 BMU-14
HV48100 BMU-15
S/N:
Date:
3 4 5 6
Protection Class: Class Ⅰ
Rated/Maximum Current: 50A
Short-circuit Current: 4500A@1ms
Nominal Voltage Operating Voltage Range
256V 237.5V~288V
307.2V 285V~345.6V
358.4V 332.5V~403.2V
409.6V 380V~460.8V
460.8V 427.5V~518.4V
512V 475V~576V
563.2V 522.5V-633.6V
614.4V 570V~691.2V
665.6V 617.5V~748.8V
716.8V 665V~806.4V
768V 712.5V~864V
7
To connect with Battery in series.
To connect with Battery in series.
RJ45 port, following RS232 protocol.
To connect with battery module. RJ45
port, following CAN protocol.
To show running condition.
To connect grounding cable
Rated Energy
25.6kWh IFpP54/150/120[((8S)2S)5S]E/-10+50/95
30.72kWh IFpP54/150/120[((8S)2S)6S]E/-10+50/95
35.84kWh IFpP54/150/120[((8S)2S)7S]E/-10+50/95
40.96kWh IFpP54/150/120[((8S)2S)8S]E/-10+50/95
46.08kWh IFpP54/150/120[((8S)2S)9S]E/-10+50/95
51.2kWh IFpP54/150/120[((8S)2S)10S]E/-10+50/95
56.32kWh IFpP54/150/120[((8S)2S)11S]E/-10+50/95
61.44kWh IFpP54/150/120[((8S)2S)12S]E/-10+50/95
66.56kWh IFpP54/150/120[((8S)2S)13S]E/-10+50/95
71.68kwh IFpP54/150/120[((8S)2S)14S]E/-10+50/95
76.8kWh IFpP54/150/120[((8S)2S)15S]E/-10+50/95
17
Rated Capacity：100Ah
Designation Code
MADE IN CHINA
Shanghai PYTES Energy Co., Ltd.
