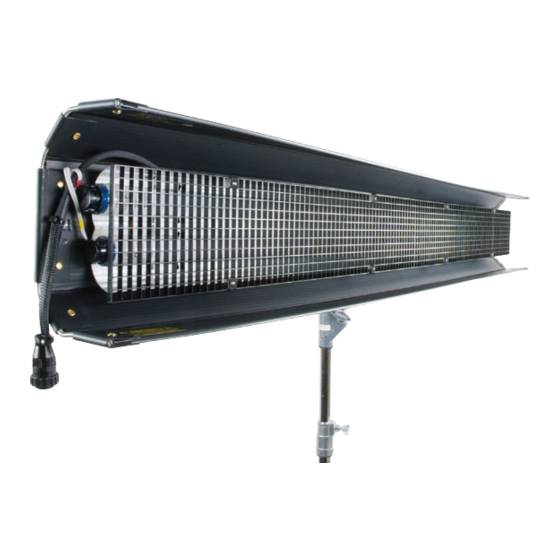

- Page 1 Operation Manual Mega Double & Single Part No. 3100059 Rev A 09-18-2013...
- Page 2 Mega Double System CFX-9602 8ft Mega Double Fixture CFX-7202 6ft Mega Double Fixture MTP-KM Kino 81 “Slide-On” Mount w/ Junior Pin (28mm) X09-25M Mega Double Extension, 25ft BAL-215-M120 Mega Double Ballast, 120VAC BAL-215-M230 Mega Double Ballast, 230VAC...
- Page 3 Mega Single System CFX-9601 8ft Mega Single Fixture CFX-7201 6ft Mega Single Fixture MTP-KM Kino 81 “Slide-On” Mount w/ Junior Pin (28mm) X07-25M Mega Single Extension, 25ft BAL-105-M120 Mega Single Ballast, 120VAC BAL-115-M230 Mega Single Ballast, 230VAC Each System consists of:...
- Page 4 The lamps can operate independent of the fixture allowing them to be built into sets or custom soft boxes or hand-held as a single tube for an eye-light. WARNING: Always use safety-coated lamps to avoid injury if lamp breaks.
- Page 5 Inserting Lamps Locking Lamp Connector: Depress both tabs on lamp connector and apply to lamp pins. Match the Harness color-codes at each end of the lamp. Push lamps into the fixture’s Lamp Holder Clips. Note: Mega 4Bank fixture is shown for example purposes only. Gelling the Fixture Restricting the airflow around the lamps can cause the lamps to operate hotter.
-
Page 6: Mounting The Fixture
Mounting the Fixture Align the four shoulder rivets on the mounting plate (MTP-KM) to the holes in the mating plate and slide down. The locking pin will snap into place when the plate is properly seated. The Silver Rings provide attachment points for a safety chain. -
Page 7: Extension Cable
Extension Cable to split a Mega Double run into two Mega Singles. This allows for greater rigging flexibility. A Combiner can connect smaller ballasts to a larger fixture. For example, two Mega Single Ballasts can be combined to a Mega Double Extension or Fixture. - Page 8 Ballast can be turned on. Load Considerations Kino Flo Mega ballasts are not power factor corrected. They will draw double the current on the neutral from what is being drawn on the two hot legs. On large installations it may be necessary to double your neutral run so as not to exceed your cable capacity.
- Page 9 Mega Double Control Panel A) Circular Output Connector: Provides electrical power to the lamp head with the use of an extension cable. B) Fuse: Provides circuit protection. Note: If Fuse is “blown” or “open”, replace with same type of fuse rating as marked. C) Manual Switches: Turns lamps on and off manually.
-
Page 10: Manual Operation
Manual Operation The Ballast operates remote from the fixture. Connect the Extension cable to the Ballast and the Lamp Harness. After the lamps are properly installed, the Ballast can be turned on. Each switch controls one lamp. The color bands on the lamp harness correspond to the switches as illustrated. Yellow Lamp Select Feature The Mega Ballasts have an HO/Std switch. -
Page 11: System Components
System Components CFX-9602 8ft Mega Double Fixture CFX-9601 8ft Mega Single Fixture CFX-7202 6ft Mega Double Fixture CFX-7201 6ft Mega Single Fixture MTP-KM Kino 81 “Slide-On” Mount w/ Junior Pin (28mm) X09-25M Mega Double Extension, 25ft X07-25M Mega Single Extension, 25ft... -
Page 12: Accessories And Parts
8ft Mega Single Reflector REF-9602 6ft Mega Double Reflector REF-9601 6ft Mega Single Reflector X09-A7M Mega Double to Mega Single Splitter X09-A19M Mega Double to Mega 4Bank Combiner X07-A9M Mega Single to Mega Double Combiner X07-A19M Mega Single to Mega 4Bank Combiner... - Page 13 Expendables EXP-LHC-T12 Lamp Holder Clips, T12 (24pk) EXP-M&T Adhesive Mounts & Releasable Ties (25pk) PRT-HLC Kino Locking Lamp Connector (1pk) PRT-HLC/50PK Kino Locking Lamp Connector (50pk) See our website at www.kinoflo.com for more repair parts. Cases KAS-96L KAS-KFC KAS-96 Part Number Description Dimensions Weight...
-
Page 14: Fixture Specifications
8ft Mega Double 97” 7.5” 3.5” 3.5” 10 lbs 6ft Mega Double 73.5” 7.5” 3.5” 3.5” 9.2 lbs Kino Flo Mega Single Fixture Dimensions Fixture Style Length Width Depth Barndoor Weight w/ Width Lamps 8ft Mega Single 97” 4.5” 3.5”... - Page 15 Output Switching: HO/Std Ballast Size: 9.5 x 9 x 3” (24 x 23 x 7.6cm) Weight: 4.2 lb (1.9kg) BAL-105-M120 Mega Single Ballast, 120VAC Input Voltage: 120VAC 50/60Hz Output Frequency: 25kHz Amperage: F120/2.2A, F100/1.6A Lamp Switching: 1~off Output Switching: HO/Std Ballast Size: 11 x 2.5 x 2.5”...
- Page 16 This product is made of recyclable materials and should be disposed of in accordance with governmental regulations. Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
