AETEK H40-044-30-150-V3 Quick Installation Manual

Model Description
H40-044-30-150-V3 4xGbE 30W PoE + 2xGbE RJ45 + 2xGbE SFP
H40-044-90-250-V3 4xGbE 95W PoH PoE + 2xGbE RJ45 + 2xGbE SFP
H40-044-91-250-V3 4xGbE 90W bt PoE + 2xGbE RJ45 + 2xGbE SFP
H40-082-30-250-V3 8xGbE 30W PoE + 2xGbE SFP
PACKAGE CONTENTS
* 1x PoE switch
* 1x T25 L-wrench, 4x wall anchors
IMPORTANT:
1. Install the PoE switch in a ventilated and dry place that is free of
electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the switch are not blocked.
3. Use CAT5 or 5e UTP/STP cables.
4. AC input (100~240V/AC, 50~60Hz) or DC input (12~56VDC)
5. Although housing is IP67 rating , this is not suitable for water jets.
LED DEFINITIONS
Power Green ON
PW1/PW2
SFP port
Green ON
Green
Grren Flashing Data is being transmitted / received.
LAN ports Green ON
Green
Grren Flashing Data is being transmitted or received.
PoE ports Amber ON
Amber
Amber OFF
RESET
Reset the switch
H40-044-30-150-V3 / H40-044-90-250-V3 / H40-044-91-250-V3
DC input
Reset button
LEDs
AC on/off switch
100~240VAC power input
H40-044-30-DC / H40-044-90-DC / H40-044-91-DC
Reset button
Power LED
DC on/off switch
12~56VDC
Input

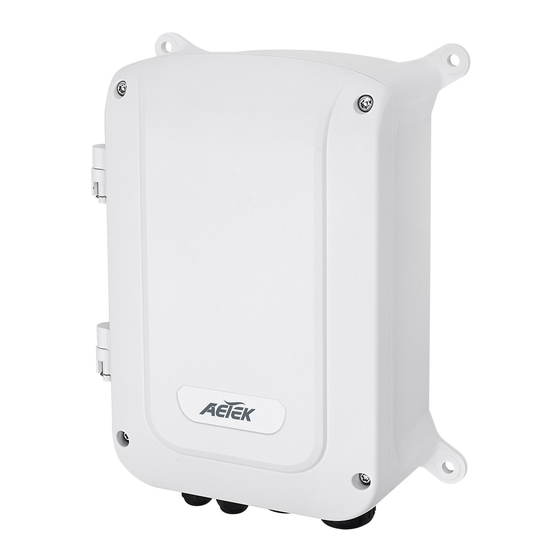

Outdoor Gigabit Ethernet PoE Switch
Quick Installation Guide
Power is on and normal.
Fiber is aeeached.
TX link is detected.
PSE is activated and PD is detected.
PoE OFF
3 seconds
GbE RJ45
GbE RJ45
PoE ports
Data ports
GbE RJ45
GbE RJ45
PoE ports
Data ports
12~56VDC
Output
Model
H40-044-30-DC 4xGbE 30W PoE + 2xGbE RJ45 + 2xGbE SFP
H40-044-90-DC 4xGbE 95W PoH PoE + 2xGbE RJ45 + 2xGbE SFP
H40-044-91-DC 4xGbE 90W bt PoE + 2xGbE RJ45 + 2xGbE SFP
H40-082-30-DC 8xGbE 30W PoE + 2xGbE SFP
* 1x Quick Installation Guide
6.The cabinet must be grounded using a ground wire
between the ground screw and earth ground.
Blinking Green All LEDs off
H40-082-30-250-V3
AC on/off switch
GbE SFP
Data ports
H40-082-30-DC
DC on/off switch
GbE SFP
Data ports
Description
DC input
Reset button
LEDs
GbE RJ45
100~240VAC power input
PoE ports
Reset button
Power LED
GbE RJ45
PoE ports
12~56VDC 12~56VDC
Input Output
P/N: A625014200G
GbE SFP
GbE RJ45
Data ports
Data ports
GbE SFP
GbE RJ45
Data ports
Data ports
