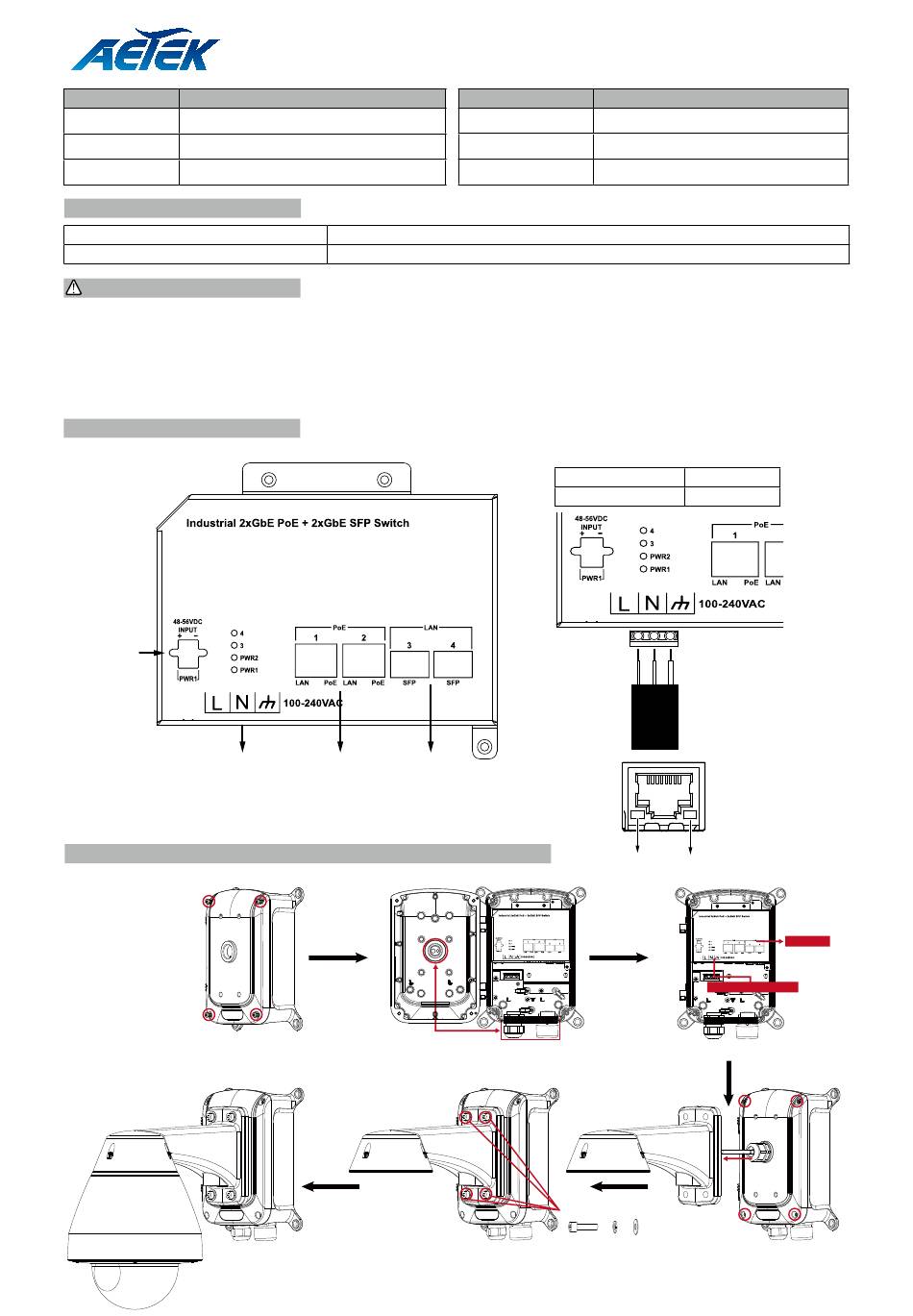

AETEK H40 Series Quick Installation Manual

Model Description
H40-022-90-120 2xGbE 95W PoH PoE + 2xGbE SFP
H40-022-91-120 2xGbE 90W bt PoE + 2xGbE SFP
H40-022-90-120-A 2xGbE 95W PoH PoE + 2xGbE SFP
PACKAGE CONTENTS
* 1x PoE switch
* 1x T25 L-wrench
IMPORTANT:
1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the switch are not blocked.
3. Use CAT5 or 5e UTP/STP cables.
4. AC input (100~240V/AC, 50~60HZ)
5. IP67 rated housing
6. Although housing is IP67 rating , this is not suitable for water jets.
CONNECTION
48-56VDC
Input
100~240VAC
Power Input
H40-022-90-120-A / H40-022-91-120-A / H40-022-91-120-A-V2 only
1. Loosen the screws
6. Install dome camera

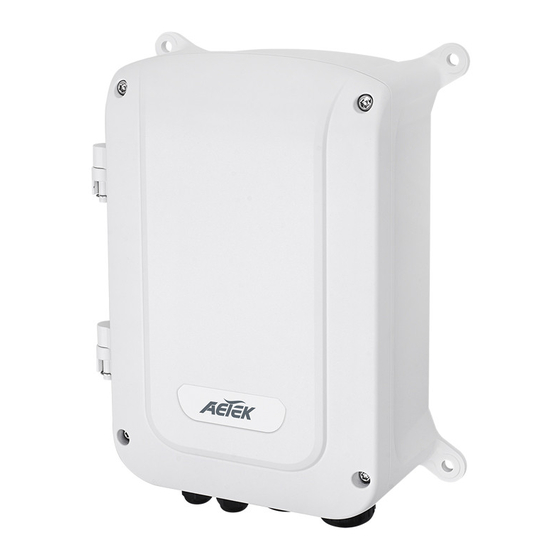

H40 Series Outdoor PoE Switch
Quick Installation Guide
* 1x Quick Installation Guide
GbE RJ45 GbE SFP Ports
PoE Ports
5. Fixed pendant wall mount
Model
H40-022-91-120-A
H40-022-91-120-V2
H40-022-91-120-A-V2
AC Power Cable Spec.
Wire Size
Wire Strip Length
2. Install the cable glands
(M8x27mm+Spring Washer
+Flat Washer screws) x4pcs
P/N: 5019943701
Description
2xGbE 90W bt PoE + 2xGbE SFP
2xGbE 90W bt PoE + 2xGbE SFP
2xGbE 90W bt PoE + 2xGbE SFP
10~18AWG
8mm
8mm
AC Power Cable
Link/Act LED PoE LED
Power cord & Lan cable
3. Connect the cables
+ +
4. Tighten the screws
LAN Cable
