2.3 Inside Front Panel Components

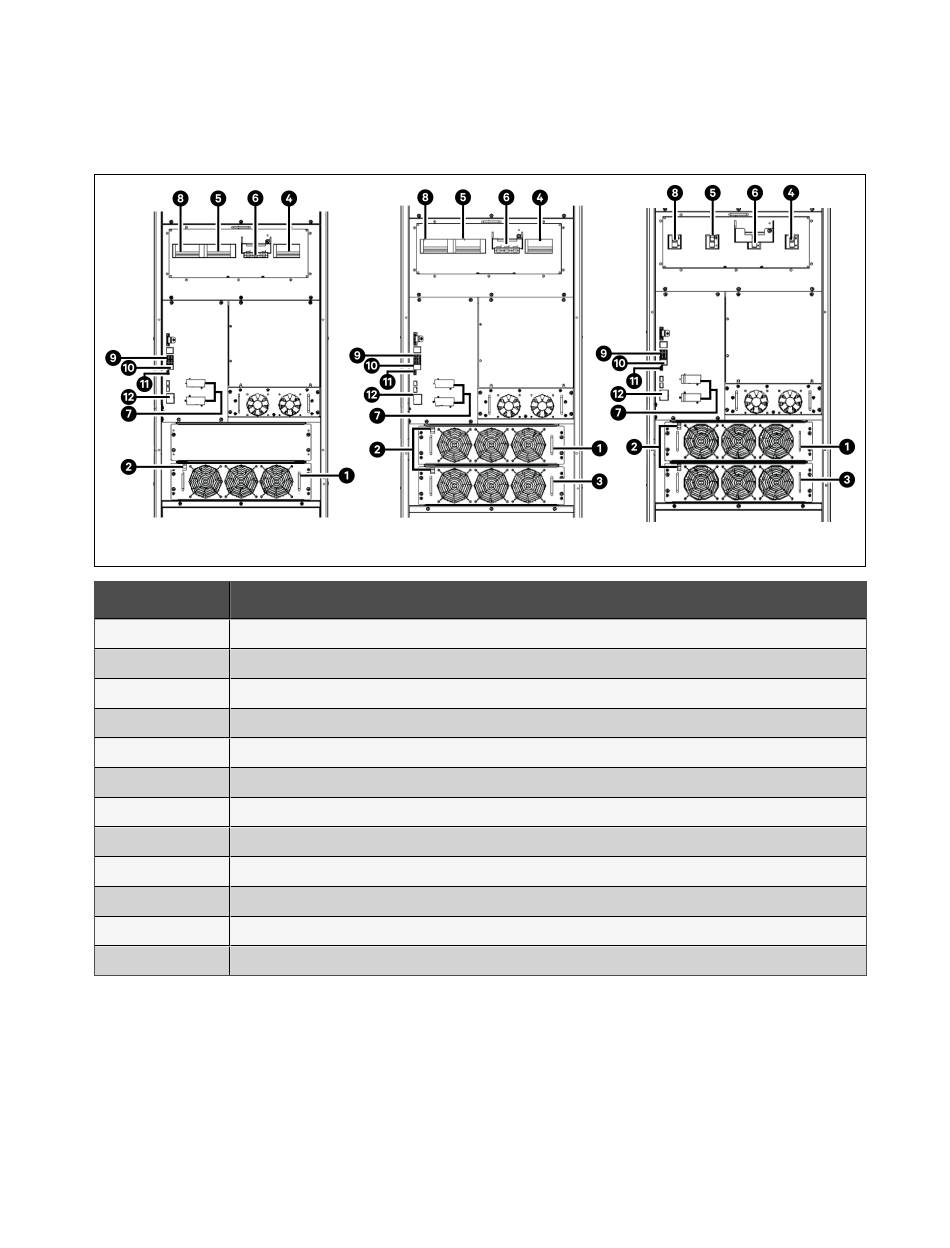

Figure 2.2 Components and Ports Inside the Front Door
Item
1
2
3
4
5
6
7
8
9
10
11
12
2 Product Description
15-20 K
Description
Power module 1
Battery start button
Power module 2
Maintenance isolation breaker (MIB)
Bypass input breaker (BIB)
Maintenance bypass breaker (MBB)
Vertiv™ Liebert® IntelliSlot™ ports
Rectifier input breaker (RIB)
Dry contact inputs
Remote emergency power off (REPO) port
Dry contact outputs
Parallel/LBS ports
