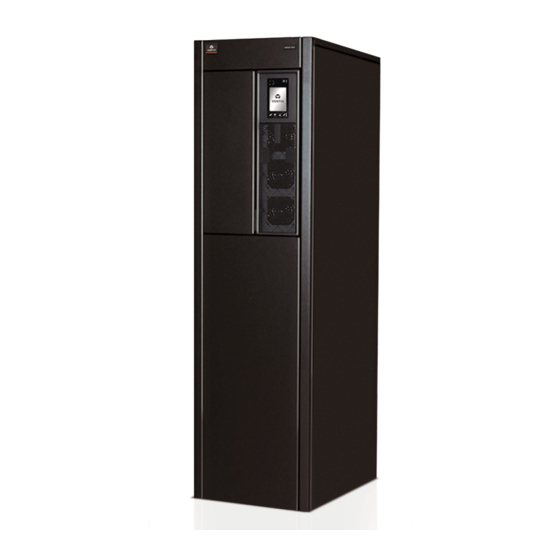

Vertiv Liebert EXS 10kVA User Manual

Standard ups/with side cabinet
Hide thumbs
Table of Contents

Advertisement

Quick Links

Liebert® EXS 10-20kVA
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Liebert EXS 10kVA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vertiv Liebert EXS 10kVA

Summary of Contents for Vertiv Liebert EXS 10kVA

  • Page 1 Liebert® EXS 10-20kVA User Manual...
  • Page 2 EXS 10-20kVA UNINTERRUPTIBLE POWER SUPPLY USER MANUAL 10H52260UM60 – rev. 1...
  • Page 3 All rights, including rights of translation, reproduction in any form or other usage of this document, or any part of it, are reserved. Transgressors will be liable for damages. All rights, including rights deriving from the granting of patent or registration of utility, model or design, are reserved.
  • Page 4 It is exposed to heat sources or strong electro-magnetic interference  Disclaimer VERTIV may not be held accountable or responsible for defects and malfunctions arising for the following reasons: Application range or operating environment outside the specified limits  Unauthorized modification, incorrect installation or operation ...
  • Page 5 Used for instructions that the user must read carefully and observe, even if failure to do so may not result in damage. This manual contains information concerning the installation and operation of single UPS modules and parallel systems of the Vertiv EXS 10kVA-20kVA UPS. Read this manual thoroughly before installing, using and servicing the UPS.
  • Page 6 General safety precautions (For users) Like other types of large power equipment, the UPS and battery circuit breaker box/battery cabinet contain high voltages. This equipment meets the IP20 standard, and other safety panels are fitted inside the equipment. The UPS may be operated in complete safety, provided the general instructions and the steps recommended in this manual are followed.
  • Page 7 EXS 0010kTH1AFN01 Liebert EXS 15kVA (Standard UPS) EXS 0015kTH1AFN01 Liebert EXS 20kVA (Standard UPS) EXS 0020kTH1AFN01 Liebert EXS 10kVA (UPS with side cabinet) EXS 0010kTH1AFN02 Liebert EXS 15kVA (UPS with side cabinet) EXS 0015kTH1AFN02 Liebert EXS 20kVA (UPS with side cabinet) EXS 0020kTH1AFN02 User Manual 10H52260UM60 - Rev.

  • Page 8: Table Of Contents

    Contents Chapter 1 Overview ......................................... 9 1.1 Features ......................................................9 1.2 Design Concept ..................................................9 1.3 Parallel System ..................................................12 1.4 Operating Modes ..................................................13 1.5 Battery Management ................................................15 1.6 Battery Protection .................................................. 16 Chapter 2 Mechanical Installation .................................... 17 2.1 Precautions ....................................................
  • Page 9 6.7 Battery Installation and Connections ........................................69 6.8 Designing the Battery Room ............................................70 6.9 Battery Maintenance ................................................70 6.10 Disconnecting or Connecting Internal Battery Terminals ................................71 6.11 Disposal of Used Batteries ............................................. 72 Chapter 7 Parallel System and LBS System ................................73 7.1 General ......................................................

  • Page 10: Chapter 1 Overview

    Chapter 1 Overview This section provides a short introduction to the Liebert EXS 10kVA - 20kVA UPS (hereafter referred to as “the UPS”), covering features, design concept, parallel system, operating mode, battery management and battery protection. 1.1 Features The UPS is connected between a critical load (e.g. a computer) and the mains power supply to provide high quality power for the loads.
  • Page 11 Input Output Maintenance bypass switch Maintenance bypass Static switch Bypass input Bypass input switch Rectifier Inverter UPS output Mains input Rectifier input switch Output switch Automatic inverter switch Battery Battery charger Figure 1-1 Block diagram illustrating the working principle of a UPS single module The UPS has its own battery charger and adopts advanced temperature compensation technology to effectively prolong the battery service life.
  • Page 12 Should this condition occur, please contact your local VERTIV customer service centre for technical support. (Parallel System) In the event of a fault on a UPS module, it will automatically exit the parallel system. If the system is still capable of providing the power required by the load, the remaining modules will continue to supply the load without interruptions.

  • Page 13: Parallel System

    Maintenance bypass The UPS is equipped with a second bypass circuit, known as the maintenance bypass, which provides a safe working environment for the engineers to carry out regular maintenance or repair the UPS system, while providing unregulated mains supply to the loads. The maintenance bypass can be activated manually selected by closing the maintenance bypass switch, and disconnected by setting the switch to OFF.

  • Page 14: Operating Modes

    Parallel System Features 1. The hardware and software of a parallel system are identical to those of the individual modules. The parallel system is configured by modifying the respective settings in the configuration software or via the control panel. 2. Parallel cables are connected in a ring, providing both system reliability and redundancy. LBS cables are connected between any two UPS modules of each bus.
  • Page 15 Battery mode As shown in Figure 1-4, the operating mode where the battery provides the backup power supply to the loads through the rectifier and inverter is called battery mode. In the event of a mains failure, the system will transfer automatically to battery mode with no interruption in the power supply to the load.

  • Page 16: Battery Management

    Never use batteries having different brands, type or capacities in the same system. Common battery string mode is suitable for parallel systems only, and is not compatible with LBS mode. 1.5 Battery Management The following battery management functions are set by the service engineer using the VERTIV setting software. Normal Function 1. Constant current boost charge Uses a constant current (within battery charging limit) to charge the battery.

  • Page 17: Battery Protection

    9. Maximum boost charge protection time To protect against the battery overcharge damage caused by long time boost charge, it is essential to set-up a protection time a protect time limit This limit value is set-up by the service engineer using the VERTIV setting software.

  • Page 18: Chapter 2 Mechanical Installation

    Chapter 2 Mechanical Installation This section provides a brief introduction to the UPS mechanical installation procedures, including the precautions, initial inspection before installation, environmental requirement, mechanical requirement and installation diagram. 2.1 Precautions This section describes the environmental and mechanical requirements and mechanical considerations that must be taken into account when planning the positioning and cabling of the UPS equipment.

  • Page 19: Tools

    2.3 Tools Warning 1. For reasons of safety, all installation tools used on live components must be insulated. 2. The tools listed in Table 2-1 are for reference only; please adapt to the actual requirements for on-site installation and connection. Table 2-1 Tools Name Drawing...

  • Page 20: Unpacking

    2.4 Unpacking Unpack the UPS and battery packages under the supervision of an authorized service engineer. Proceed as follows: 1. Remove the carton. Remove the packing strap and lift the whole carton upwards, as shown in Figure 2-1. Removing carton from standard UPS Removing carton from UPS with side cabinet Figure 2-1 Removing cartons 2.
  • Page 21 Inserting Inserting Remove the fixing Remove the fixing direction direction structural parts structural parts Standard UPS UPS with side cabinet Figure 2-2 Removing the bottom pallet 3. After moving the cabinet to the installation site, you raise the adjustable feet and use the castors to move the cabinet to its final installation position, finally, rotate the adjustable feet until they are in contact with the floor.

  • Page 22: Initial Inspection

    2.5 Initial Inspection Before installing the UPS, carry out the following inspections: 1. Ensure that the UPS equipment room meets the environmental requirements specified in the product technical specifications, especially the ambient temperature, ventilation conditions, and the levels of dust. 2.

  • Page 23: Mechanical Requirements

    Warning Recharge the battery at regular intervals during storage in accordance with the manufacturer’s instructions. During the charge process, connect the UPS temporarily to the mains and activate the battery by recharging it. 2.7 Mechanical Requirements Moving the Cabinet Warning 1.

  • Page 24: Installation Drawings

    2.8 Installation Drawings Figure 2-4 Front/side/bottom view of the standard UPS (unit: mm) User Manual 10H52260UM60 - Rev. 1 - 10/2017...
  • Page 25 Figure 2-5 Front/side/bottom view of the UPS with side cabinet (unit: mm) User Manual 10H52260UM60 - Rev. 1 - 10/2017...

  • Page 26: Chapter 3 Electrical Installation

    Chapter 3 Electrical Installation This section principally introduces the UPS electrical installation procedures, including the power cable and signal cable connecting procedures and methods. Once the mechanical installation procedure is complete, it is necessary to connect the power and signal cables to the UPS.
  • Page 27 2. Non-linear load (like switch power) affects the design of output and bypass neutral line. The neutral line current may exceed the rated phase current, at most 1.5 times of the rated phase current. Recommended CSA of UPS Cables The recommended CSA of the UPS cables is listed in Table 3-2. Table 3-2 Recommended CSA of the UPS cable (unit: mm , ambient temperature: 25°C) Model...
  • Page 28 1. The protective earth cable dimension shall be selected according to the AC power failure level, cable length and protection type. The grounding wire connection must use the shortest possible connection route. 2. In the case of cables that are required to handle large current, it may be easier to use multiple smaller cables in parallel.
  • Page 29 Figure 3-1 RCCB symbols The UPS is fitted with an internal EMC filter, therefore the protective earth cable leakage current is 0 - 1000mA. We recommend confirming the RCD sensitivity of the upstream input power distribution and downstream power distribution (to the load) lines. External battery The circuit breaker must be installed in order to protect external battery.
  • Page 30 Figure 3-3 Power cables wiring diagram (rear cable access) Warning 1. Before connecting the cables, make sure that all the external and internal UPS power switches are set to OFF, and post the appropriate warning signs to prevent inadvertent operation of the switches. 2.
  • Page 31 Note Note that the common input copper shorting bars are fitted before delivery. Figure 3-4 3-in 3-out, common input configuration cable connection (factory default) 2. 3-in 3-out, split bypass configuration Refer to Figure 3-5, remove the three copper shorting bars between the rectifier input terminals (mA-mB-mC) and the bypass input terminals (bA-bB-bC).

  • Page 32: Wiring The Signal Cables

    output copper shorting bars (oA-oB-oC), oN and the load. Refer to Table 3-1 for the tightening torque values. Make sure that the phase rotation is correct. Warning Prior to the service engineer's visit, if the load is not ready to be connected to the power supply, it is important to ensure the terminals of the output cables are insulated safely Connecting the batteries If the external battery is required, ensure correct polarity between the battery string terminals and the circuit...
  • Page 33 Dry Contact Port The UPS provides five dry contact ports. The silkprints of the five dry contact ports are 1 - 12. The pin layout of each dry contact port is shown in Figure 3-7, and the port description is shown in Table 3-5. Figure 3-7 Pins of dry contact ports Table 3-5 Description of the dry contact ports Silkscree...
  • Page 34 Activating the UPS EPO will deactivate the rectifier, inverter and static bypass, but does not disconnect the UPS from the mains input. If you wish to disconnect the UPS completely, it is also necessary to open the input MCB installed upstream of the UPS when activating the EPO.
  • Page 35 The multifunction port uses the standard RJ45 port, which supports the Modbus/Jbus protocol and can be used to connect the VERTIV temperature/temperature & humidity sensor. The user can enable Modbus/Jbus protocol function or sensor function via the 'Settings' on the LCD.

  • Page 36: Chapter 4 Operator Control And Display Panel

    Chapter 4 Operator Control and Display Panel This chapter introduces the functions and use of the components on the UPS operator and display panel, and provides LCD display information, including the LCD screen types, detailed menu messages, prompt windows message and UPS alarm list. 4.1 Introduction The operator and display panel is located on the front panel of the UPS.
  • Page 37 Table 4-1 Description of LED indicators Indicator Colour State Meaning UPS output present Run indicator Green Blinking Inverter is starting UPS output not present, inverter is starting Yellow Alarm active Alarm indicator Fault present No alarms, no faults Audible Alarm (Buzzer) UPS operation is accompanied with the following two different kinds of audible alarms, as described in Table 4-2.
  • Page 38 Figure 4-2 LCD screen The LCD includes a user-friendly interface and a 320 × 240 dot matrix image display. Thanks to the user-friendly, menu-oriented LCD it is possible to browse easily through the UPS input, output, load and battery parameters, obtain information about the current UPS status and alarm messages, as well as performing functional setting and control operations.
  • Page 39 Figure 4-4 Initial Start-up Guide (2) Battery parameter page On this page, you can set-up the battery cell number and total Ah. The available settings are 24, 32 and 40. See the right hand diagram in Figure 4-5. Figure 4-5 Initial Start-up Guide (3) If there is an external battery module, the 'Local battery total Ah' will not appear, see Figure 4-6.
  • Page 40 Figure 4-7 Initial Start-up Guide (4) Note In the case of the output page, the REPO terminal (forcible output shut-down) must be unplugged when carrying out the settings, otherwise the interface shown in Figure 4-8 will appear. Figure 4-8 Prompt for removing REPO terminal End page The interface shown in Figure 4-9 will appear.

  • Page 41: Lcd Menu Structure

    4.2 LCD Menu Structure Figure 4-10 LCD menu structure 4.3 LCD Screen Types Start Screen When the UPS is started up it performs a system self-test, during which the Start Screen is displayed for approximately 10 seconds, as shown in Figure 4-11. Figure 4-11 Start screen Flow Screen Once the UPS self-test is complete, the flow screen shown in Figure 4-12 will appear.
  • Page 42 Figure 4-12 Flow screen Press the key on the flow page to access the primary screen. Main Menu Screen The main menu screen consists of six icons: Status, Settings, Control, Log, About, Maintain. As shown in Figure 4-13. Figure 4-13 Main menu screen Press the key on the main menu screen to return to the flow screen.
  • Page 43 Settings page The Settings page can be used to access the Output, Battery, Parallel, Monitor, System, and Outlet settings. For details about the setting up the parameters, refer to Appendix 1 . See below: User Manual 10H52260UM60 - Rev. 1 - 10/2017...
  • Page 44 User Manual 10H52260UM60 - Rev. 1 - 10/2017...
  • Page 45 Control page The Control page may be used to access the Turn ON/OFF/to BYPASS, Manual battery test, etc. functions. See below: Log page The Log page can be used to access a list of current and historical UPS events. See below: About page The About page contains information about the Product, Network, and Efficiency.
  • Page 46 Maintain page Note The Maintain page is password protected and reserved for use by VERTIV service engineers only. Default Screen During the UPS operation, if there is no alarms for two minutes, the display will revert to the default as shown in Figure 4-14.

  • Page 47: Prompt Window

    4.4 Prompt Window A prompt window is displayed while the system is in operation to alert you to certain conditions and/or request you to confirm a command or other operation. Table 4-4 lists the prompts and the associated meanings. Table 4-4 Prompts and meanings Prompt Meaning System setting is different, please check...
  • Page 48 Alarm message Description The AC input mains N line has not been detected. Please check whether the input N line has been interrupted Input neutral lost or disconnected Input ground lost Check whether the PE line is connected securely, and that the alarm can be cleared on line The mains AC input phase is reversed.
  • Page 49 Alarm message Description Output pending Remote shut-down has been enabled, and the system will be switched off The system is in the standby state, and the shut-down dry contact has been enabled Check whether the shut- Output disabled down dry contact has been enabled or not Version incompatible The monitoring board and DSP board versions are incompatible Electrical leakage...
  • Page 50 This alarm occurs when the model identification is incorrect. Solution: Contact service manager If the alarm is generated as the result of a software value set-up by an authorised VERTIV engineer, and you wish to modify the setting, please get in touch with your local VERTIV customer service centre.

  • Page 51: Chapter 5 Operating Procedures

    Chapter 5 Operating Procedures This section introduces the operating precautions and describes the UPS operating procedures in detail. 5.1 Brief Introduction Precautions Important The user may only carry out the operations described in this section once the authorised service engineer has switched the UPS on for the first time and completed the commissioning tests Warning: hazardous mains and/or battery voltage 1.

  • Page 52: Ups Start-Up Procedures

    Figure 5-1 UPS power switch 5.2 UPS Start-up Procedures Check Before Start-Up 1. Check and confirm that the UPS and POD power distribution mode (if configured) is correct, that the power and signal cables are connected correctly, and there are no short circuits. 2.
  • Page 53 Figure 5-2 Start-up interface Start-up Procedures In Normal Mode Warning 1. These procedures result in mains voltage being applied to the UPS output terminals. 2. If any loads are connected to the UPS output terminals, check with the user that it is safe to apply power. If the load is not ready to receive power, please disconnect the downstream load switch, and apply a warning label at the load connection point.
  • Page 54 Figure 5-4 Output interface 4. After setting up the corresponding parameters, press the power button for two seconds so that the dialogue box shown in Figure 5-5 appears on the LCD screen. Figure 5-5 Switching the UPS on After selecting 'YES', the run indicator (green) blinks, the inverter starts, and the run indicator switches on. 5.

  • Page 55: Procedures For Transferring Between Operating Modes

    Figure 5-6 Switching the UPS on After selecting 'YES', the inverter starts, and the run indicator (green) is illuminated. 5.3 Procedures for Transferring Between Operating Modes Note The Inverter operating modes include Normal mode and Battery mode. Transfer from Normal Mode to Battery Mode When the mains supply is interrupted, the UPS will transfer to Battery mode.
  • Page 56 Figure 5-8 Bypass normal interface In Inverter mode, press and hold the power button. If the bypass is abnormal, then the interface shown in Figure 5-9 will appear, select 'YES' to shut down the UPS output. Figure 5-9 Bypass abnormal interface Note In Bypass mode, the load is directly fed by the mains power instead of the pure AC power from the inverter.
  • Page 57 Figure 5-10 ECO mode not enabled Select 'Turn on UPS' and click OK to transfer to Inverter mode, see Figure 5-11. Select 'Turn off UPS' and click OK to shut down the UPS output. Figure 5-11 Bypass to inverter mode If ECO mode is enabled, the interface shown in Figure 5-12 will appear.
  • Page 58 Transfer From Normal Mode To Maintenance Bypass Mode When the UPS is running in Normal mode, you can use this procedure to transfer the load from inverter output to maintenance bypass. Caution Before performing this procedure, you should check the LCD information first, and make sure the bypass is normal and synchronized with the inverter.

  • Page 59: Ups Shut-Down Procedures

    It is important to close the bypass switch (Q2) before opening the maintenance bypass switch; otherwise the power supply to the load will be interrupted. 5. Set internal maintenance bypass switch Q3 to off. Return the Q3 baffle to its original position, then fasten the retaining screws.

  • Page 60: Automatic Restart

    5.6 Automatic Restart In the event of a mains power failure, the UPS draws power from the battery in order to supply the load until the batteries are discharged, at which point the UPS will shut down. The UPS will restart automatically and resume supplying power to the load: Once the mains power supply is restored.

  • Page 61: Changing The Current Date And Time

    Figure 5-16 Language selection 4. Press the key to select your required language, then press the key to confirm. At this point the LCD information will be displayed in your selected language. See Figure 5-17. Figure 5-17 Changing Language 5. Press the key several times to return to the main menu screen.

  • Page 62: Setting The Password

    Figure 5-19 Monitor interface 3. Press the key, followed by the key to highlight the date and time, see Figure 5-20. Figure 5-20 Selecting date and time 4. Press the key, move the cursor and press the key to change the date and time as required. See Figure 5-21.
  • Page 63 Figure 5-22 Main menu 2. Press the key, the interface shown in Figure 5-23 will appear. Figure 5-23 Entering the password To change the password, proceed as follows: 1. Press the key to move the cursor to the 'Monitor’ page, see Figure 5-24. Figure 5-24 Monitor interface 2.
  • Page 64 Figure 5-25 Changing the settings password 3. Press the key, the interface shown in Figure 5-26 will appear. Figure 5-26 Settings password 4. Enter the current password and press the key to confirm; at this point requests the user to enter a new password.
  • Page 65 Figure 5-28 Confirming the new password 6. After the confirming the new password, press the key; at this point a system prompt appears indicating that the password has been changed successfully, see Figure 5-29. Figure 5-29 Password changed successfully 7. Press the key several times to return to the main menu screen.

  • Page 66: Chapter 6 Battery

    Chapter 6 Battery This section introduces the battery, providing information about safety, installation and maintenance, and the battery protection function. 6.1 Introduction The UPS battery string consists of a number of batteries connected in series, and provides rated DC input voltage for the UPS inverter.
  • Page 67 Warning: hazardous battery voltage present behind covers 1. No user-serviceable parts are located behind the protective covers that can only be removed by using tools. Only qualified service personnel are authorized to remove such covers. 2. Before working on the copper bars connected to the external battery, please ensure they are disconnected from all power supplies. Proper connection mode Improper connection mode Applying too little or too much torque may result in poor connections.

  • Page 68: Ups Battery

    Warning: hazardous battery voltage present behind covers may be caused. i) Clean the battery enclosure with a damp cloth. To avoid any static or arcing, do not use dry cloths or dusters to clean the batteries. Do not use the organic solvents (such as thinners, gasoline, volatile oil) to clean the batteries. Otherwise, the battery enclosure may be cracked.

  • Page 69: Precautions For Installation Design

    6.4 Precautions For Installation Design Note 1. The precautions that must be applied when installing, using and servicing the batteries are described in the respective battery manual provided by the battery manufacturer. 2. The safety precautions described in this section include important matters that must be taken into account when designing the installation.

  • Page 70: Battery Protection

    Number Of Batteries The number of batteries, EOD voltage, and float charging voltage must be consistent with the voltage selection (380V/400V/415V), as shown in Table 6-2. Table 6-2 Number of batteries Parameter 380V/400V/415V Number of cells (standard) 192, 240 EOD voltage 1.60Vdc/Cell - 1.85Vdc/Cell, 1.62V/cell recommended Float charging voltage 2.2Vdc/Cell - 2.3Vdc/Cell, 2.27V/cell recommended...

  • Page 71: Designing The Battery Room

    Battery Connections 1. All the battery cabinets or battery racks must be connected and properly grounded. 2. When multiple battery strings are used, they shall be connected first in series and then in parallel. Before switching the UPS on and connecting it to the load, check that the total voltage of the batteries is as specified. The negative and positive poles of the batteries must be connected to the negative and positive battery terminals of the UPS, in accordance with the labels on the battery and UPS.

  • Page 72: Disconnecting Or Connecting Internal Battery Terminals

    2. Make sure that all the safety devices are present, in good condition and that they function correctly, and make sure that the battery management parameter settings are correct 3. Measure and log the air temperature in the battery room. 4.

  • Page 73: Disposal Of Used Batteries

    Once the maintenance work is complete, please wear arc protective gloves and arc protective clothing when reconnecting the cabinet battery terminals and internal battery terminals. To reconnect the internal batteries in the standard UPS, simply restore the connection terminals between W101 and W107, W102 and W106, W103 and W108; to reconnect the internal batteries in the UPS with side cabinet, simply restore the connection terminals between W101 and W107, W102 and W106, W103 and W108 first, and then the connection terminals between W201 and W207, W202 and W206, W203 and W208.

  • Page 74: Chapter 7 Parallel System And Lbs System

    Warning To achieve coordinated operation of the modules in the parallel system, each module must be configured separately using the VERTIV setting software. This must be done by VERTIV service personnel. Cabinet Installation Place the UPS modules side by side and interconnect them as shown in Figure 7-1. The output distribution mode (Q1EXT, Q2EXT must be configured) shown in Figure 7-1 is recommended to facilitate maintenance and system testing.
  • Page 75 Figure 7-1 Circuit diagram of typical parallel system (with common input, separate batteries and output) Power Cables The power cable wiring is similar to that of the UPS module. Refer to 3.1 . The bypass and rectifier input supplies must be use the same neutral line input terminal. If the input is fitted with a current leakage protection device, the device must be fitted upstream of the neutral line input terminal.

  • Page 76: Operating Procedures For Parallel Systems

    Figure 7-2 Parallel signal cable connections (Parallel system) Note 1. VERTIV parallel cables must be used for the parallel system. 2. If a parallel communication fault occurs during parallel commissioning or operation, switch the system off and check whether the parallel cables are connected correctly.
  • Page 77 1. These procedures result in mains voltage being applied to the UPS output terminals. 2. If any loads are connected to the UPS output terminals, check with the user that it is safe to apply power. If the load is not ready to receive power, please disconnect the downstream load switch, and apply a warning label at the load connection point.
  • Page 78 Procedures for Isolating One UPS Module from a Parallel System Important These procedures may only be carried out by VERTIV service personnel, or under their supervision. Warning Before operation, confirm that the system capacity has sufficient redundancy to avoid system shut down due to overload.

  • Page 79: Lbs System

    Procedures For Completely Powering Down the UPS In order to shut the UPS down completely and disconnect the power supply to the load, proceed as follows: All power switches, isolating switches and breakers are switched to off, and the UPS no longer supplies power to the load.
  • Page 80 Bypass Bypass Rectifier Rectifier Q2 Q3 To load Figure 7-3 LBS system (UPS module) Bypass Bypass Rectifier Rectifier Rectifier Rectifier UPS 1 ..UPS 4 UPS 1 ..UPS 4 Q2 Q3 Q2 Q3 Q2 Q3 Parallel Parallel cable cable To load Figure 7-4 LBS system (parallel system) Note...
  • Page 81 Power Cables The power cable of dual-bus power system is similar to that of single system. Refer to 3.1 Connecting the Power Cables LBS Cable Note 1. The appearance of the LBS port is the same as the parallel port (see Figure 3-6). 2.
  • Page 82 Figure 7-6 LBS parameter settings interface The LBS is the load synchronisation system, and is used to synchronise the output voltage phases of the two sections of the UPS system. The two sections of the UPS system may consist of two single UPS units, or two UPS parallel systems.

  • Page 83: Chapter 8 Options

    8.2 Option Introduction Internal Battery Kit VERTIV provides two kind of internal battery kits for the user when UPS internal battery or corresponding kits are required. Kit A: 32-block internal battery kit (2-group, factory installation), or the required battery cables, battery trays, screws (site installation);...
  • Page 84 Note 1. No batteries are supplied with the internal battery kit (site installation). 2. Battery cables and battery trays are designed according to the specifications of valve-regulated lead acid batteries 12V- 9Ah. If internal battery kits are required for site installation, please purchase batteries having the same specifications. Preparation 1.
  • Page 85 c) Insert four battery trays into the battery compartment (from bottom to top, see Figure 8-4). Connect cables W106, W107 and W108 as shown in Figure 8-2, then use the screws (accessories) to secure the battery trays. d) Connect the cables W101, W102 and W103 to the Bat+, N and Bat- terminals, respectively. Note The user must remove the insulating film before connecting the cables, and replace the insulating film after the connection procedure is complete...
  • Page 86 Installing internal batteries on UPS with side cabinet a) Remove the corresponding covers, as shown in Figure 8-3. Do not throw the screws away Front view Rear view Figure 8-3 Removing the corresponding covers b) Remove the four battery trays for the standard UPS (accessories) and install batteries on their respective trays. Connect cable W104 and cable W105, insert the four battery trays into the battery compartment (from bottom to top, see Figure 8-4).
  • Page 87 Note The user must remove the insulating film before connecting the cables, and replace the insulating film after the connection procedure is complete. e) Connect the cables: W101 and W107, W102 and W106, W 103 and W108, then connect cables: W201 and W207, W202 and W206, W203 and W208.
  • Page 88 Figure 8-4 Installing battery trays and cable connections Battery Temperature Sensor Kit The battery temperature sensor is used for measuring the battery temperature. The battery temperature sensor is installed next to the battery in order to measure the respective temperature. The sensor signal output cable is connected to the multifunctional port, see port 8 (RJ45 port) in Figure 3-6.
  • Page 89 1. Shut down the UPS completely. a) Disconnect the load b) Refer to 5.6.1 Procedures For Completely Shutting Down the UPS for single UPS module shut down, and 7.3.5 for parallel system shut down. c) All the LCDS are off, wait five minutes for the internal UPS DC bus capacitors to discharge fully. 2.
  • Page 90 Figure 8-7 Installing and connecting the battery temperature sensor 5. Position the cables in order. Note that the cables should be routed separately from the power cables to avoid EMI. User Manual 10H52260UM60 - Rev. 1 - 10/2017...
  • Page 91 8.2.3 Relay Card The UPS is available with a relay card that enables users to use dry contact signals to monitor the UPS. It is hot pluggable for easy installation. The relay card can provide up to four digital relay output signals for connection to remote monitoring devices. These signals are: UPS on Battery, Battery Low, UPS on Bypass or in Standby, UPS Faulty.
  • Page 92 Pin 13 GND, common GND Others Cable options VERTIV provides three cable options for connections to the DB25 connector of the relay card, depending on the user’s requirements Figure 8- - Figure 8- show the appearance and wiring principle of each cable.
  • Page 93 DB25 male (pin-type) DB25 male (pin-type) X14J7A plug (pin-type) X14J7A plug (pin-type) Figure 8-1 Appearance and wiring diagram of cable 2 (UFDRY21SL2) This end is labelled 'UPS' This end is labelled "UPS" 560 ohm/1W 560 ohm/1W DB25 male (pin-type) DB25 male (pin-type) DB25 male (pin-type) DB25 male (pin-type) Figure 8-1...
  • Page 94 Table 8-4 Setting the UPS switch-on and switch-off signal input function Bit 8 Function UPS switch-on and switch-off signal input function enabled UPS switch-on and switch-off signal input function disabled 2. Insert the relay card into the UPS. Note The relay card is hot-pluggable, therefore it may be installed without shutting the UPS down. a) Remove the Intellislot port cover (see Figure 3-6) on the front panel.
  • Page 95 (common input configuration), bypass input (split-bypass configuration), and output terminals together. Note The UPS is set to 3-in 3-out mode by default. If you need to convert it to 3-in 1-out mode, contact VERTIV authorized personnel for the corresponding settings. Always observe the following procedures: Power distribution mode 1.
  • Page 96 Figure 8-1 3-in 1-out, common input configuration (2) c) Connect the phase A input cables to the input copper shorting bars, and connect the input N line to the neutral terminal 'N' in the cabinet. Connect the phase B and phase C cables respectively to terminals mB and mC, and then connect the I/O earth cables to the PE terminal in the cabinet.
  • Page 97 C) Connect the phase A, phase B and phase C input cables to terminals (mA, mB and mC), and connect the bypass input cables to the bypass input copper shorting bar. Connect the input N line to the neutral terminal 'N' in the cabinet, then connect the I/O earth cables to the PE terminal in the cabinet.
  • Page 98 8.2.7 Protective Devices For Short Circuit Withstand Current This kit contains three bypass fuses (one fuse for each phase) designed to guarantee the UPS withstand short circuit at 30kA. If this kit is installed, please refer to Figure 8-2 for the fuse blow-out curve when choosing the UPS downstream switch and transformer load.

  • Page 99: Chapter 9 Service And Maintenance

    Chapter 9 Service And Maintenance This section focuses on UPS maintenance, including fan maintenance, battery maintenance, UPS cleaning, UPS state checks, and UPS function checks. Note Never attempt to carry out maintenance on the UPS while it is on line. Ensure that the UPS has been switched off completely when performing any internal maintenance operations on it.

  • Page 100: Cleaning The Ups

    VERTIV may not be held liable for the environmental impact resulting from the failure to comply with the guidelines set out in this section, or to use the waste battery recycling system offered by VERTIV.

  • Page 101: Chapter 10 Specifications

    Chapter 10 Specifications This section lists the UPS specifications. 10.1 Conformity and standards The UPS has been designed to comply with the European and international standards listed in Table 10-1. Table 10-1 European and international standards Item Reference Standards General safety requirements for UPS IEC/EN62040-1+A1:2013/AS62040-1 EMC requirements for UPS IEC/EN62040-2:2006/AS62040-2...

  • Page 102: Electrical Specifications (Input Rectifier)

    10.4 Electrical Specifications (Input Rectifier) Table 10-4 Rectifier AC input (mains) Rated power (kVA) Item Unit 10kVA-20kVA Rated AC input voltage 380/400/415, 3-phase 4-wire (+PE) TN/TT power distribution system Input voltage range 305 - 499 Frequency 50/60 (range: 40 - 70) kW/kVA, full load Power factor 0.99 (0.98)

  • Page 103: Electrical Specifications (Inverter Output)

    10.6 Electrical Specifications (Inverter Output) Table 10-6 Inverter output (to critical load) Rated power (kVA) Item Unit 10kVA-20kVA 380/400/415 (3-phase 4-wire, with neutral reference to the bypass neutral) (3-in 3-out) Rated AC voltage 220/230/240 (1-phase 2-wire, with neutral reference to the bypass neutral) (3-in 1-out) Frequency 50/60...

  • Page 104: Appendix 1 Lcd Parameter Settings

    Appendix 1 LCD Parameter Settings Menu Item Setting range Default setting Auto restart Disable, Enable Enable Auto restart delay 0～999 seconds 10; Single unit only Guaranteed shut-down Disable, Enable Disable Remote control Disable, Enable Enable Remote power on delay 0～999 seconds Remote shut-down delay 0～999 seconds Redundant...
  • Page 105 Menu Item Setting range Default setting Sunday, Monday, Tuesday, Battery test weekday Wednesday, Thursday, Friday, Wednesday Saturday Battery test time HH:MM:SS 0:00:00 Battery series 24, 32, 40 Discharge protect time 1～4320 (min) 4320 Equal charge enable YES, NO Temperature compensation Enable, Disable Disable Replace battery...

  • Page 106: Appendix 2 Glossary

    Appendix 2 Glossary Alternating current Battery circuit breaker Cross sectional area Direct current External interface board Electromagnetic compatibility Electromagnetic interference End-of-discharge Emergency power off Input/output IGBT Integrated gate bipolar transistor Load bus synchronizer Liquid crystal display Light-emitting diode Personal computer Protective earth RCCB Residual current circuit breaker...

  • Page 107: Appendix 3 Hazardous Substances And Content

    Appendix 3 Hazardous Substances And Content Hazardous substances Parts Lead Mercury Cadmium Chrome PBDE (Pb) (Hg) (Cd) (Cr (VI)) (PBB) (PBDE) ○ ○ ○ ○ ○ Hex copper stud × ○ ○ ○ ○ ○ PCBA × ○ ○ ○ ○...
  • Page 108 VertivCo.com | Asia-Pacific © 2017 Vertiv Co. All rights reserved. Vertiv and the Vertiv logo are trademarks or registered trademarks of Vertiv Co. All other names and logos referred to are trade names, trademarks or registered trademarks of their respective owners. While every precaution has been taken to ensure accuracy and completeness herein, Vertiv Co.
