Vertiv Liebert EXL Operation And Maintenance Manual
  1. Manuals
  2. Brands
  3. Vertiv Manuals
  4. UPS
  5. Liebert EXL
  6. Operation and maintenance manual

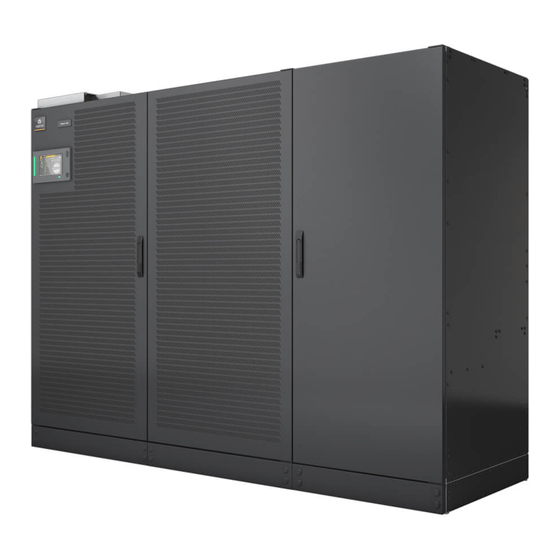

Vertiv Liebert EXL Operation And Maintenance Manual

625-1200kva, 60hz, three-phase, single & multi-module
Hide thumbs Also See for Liebert EXL:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Installation Manual
Liebert
EXL
Uninterruptible Power System
®
™
Operation and Maintenance Manual—625-1200kVA, 60Hz, Three-Phase, Single &
Multi-Module

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Liebert EXL and is the answer not in the manual?

Questions and answers

Joshua Chilando
April 15, 2025

How to switch off vertical liebert when you want to change the batteries

0
1 comments:
Mr. Anderson
April 15, 2025

To switch off the Vertiv Liebert EXL to change the batteries, follow these steps:

1. Touch “Inverter Off” on the touch screen (system enters Bypass Mode).
2. Switch the battery breaker to the OFF position.
3. Switch QS3 (if available) to the ON position.
4. Switch QS4 to the OFF position (system enters Service Mode / Maintenance Bypass).
5. Switch QS1 and QS2 to the OFF position (UPS completely de-energized).

Note: Some breakers may not be available for all ratings.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Vertiv Liebert EXL

Summary of Contents for Vertiv Liebert EXL

  • Page 1 Liebert Uninterruptible Power System ® ™ Operation and Maintenance Manual—625-1200kVA, 60Hz, Three-Phase, Single & Multi-Module...

  • Page 3: Table Of Contents

    Shutdown—Single Module UPS ..............28 ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual...
  • Page 4 Battery Operation................55 ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual...
  • Page 5 Liebert EXL inverter overload curve........
  • Page 6 ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...

  • Page 7: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS This manual contains important instructions that should be followed during installation and maintenance of the Liebert EXL uninterruptible power system and DC source. WARNING Risk of electric shock. Can cause equipment damage, injury or death.
  • Page 8 One person should never work alone. A second person should be standing by to assist and summon help in case an accident should occur. This is particularly true when work is performed on the DC source. ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...

  • Page 9: Battery Cabinet Precautions

    Contact Vertiv Services for information or repair service in the United States at 1-800-2378. For repair or maintenance service outside the 48 contiguous United States, contact Vertiv Services, if available in your area. For areas not covered by Vertiv Services, the authorized distributor is responsible for providing qualified, factory-authorized service.

  • Page 10: Introduction

    The Liebert EXL provides continuous, high-quality AC power to business-critical equipment, such as telecommunications and data processing equipment. The Liebert EXL supplies power that is free of the disturbances and variations in voltage and frequency common to utility power, which is subject to brownouts, blackouts, surges and sags.

  • Page 11: Figure 2 Main Component Locations-625Kva, 750Kva And 800Kva (Typical)

    Control Output Drawer Busbars Motor Operated Circuit Breaker (CB1) Module Output Circuit Breaker Input (CB2) Ground DOORS AND INNER SKINS NOT SHOWN U46-8C-2000 Rev. 5 ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...

  • Page 12: Figure 3 Main Components For Remote Breaker Configuration-Single Module With Static Bypass Or 1+N

    Ground Busbar Input Ground Motor Operated Output Circuit Breaker Busbars (CB1) Module Output Circuit Breaker (CB2) U46-12C-2000 Rev. 3 DOORS AND INNER SKINS NOT SHOWN ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...

  • Page 13: Modes Of Operation

    1.2.2 Bypass Mode When the Liebert EXL is in bypass mode, the load is directly supported by utility power and is without DC source backup protection. The Liebert EXL’s inverter and bypass static switch will shift the load from the inverter to bypass mode without an interruption in AC power if the inverter is synchronous with the bypass and any of the following occurs: •...

  • Page 14: Eco Mode

    1.2.4 Eco Mode The Liebert EXL 800 and 1200 and derate single module systems have Eco Mode available for user configuration. Eco Mode is a standard feature of the Liebert EXL system and is factory-installed. The feature must be enabled in the field through the configuration menu on the UPS control screen as described in this document.

  • Page 15: Options

    A number of options are available from Vertiv for the Liebert EXL. (Some options are not available for all ratings.) ® Described below are the most frequently provided options. Other options are available. Contact your Vertiv representative for more information. •...

  • Page 16: Lcd Touchscreen

    LCD TOUCHSCREEN The Liebert EXL is equipped with a microprocessor-based human-machine interface (HMI) designed for convenient and reliable operation. The display is driven by an easy-to- follow, menu-prompted software. EATURES The Liebert EXL HMI enables the operator to perform such tasks as: •...

  • Page 17: Touchscreen Navigation

    Several menu items can be accessed from the main display screen (see Figure 6). These menu items are detailed in subsequent sections. 2.2.2 Configuration Menu Rating (Config) This menu item will display a popup showing the following parameters. These parameters are entered during commissioning when the UPS is installed by Vertiv Services ® ™ Figure 7 Configuration menu ™...
  • Page 18 When Battery Equalize is activated, the module will charge the batteries to the Equalize Voltage for the length of Equalized Time. • Equalize Voltage, VPC—2.30 to 2.45 (default: 2.3) • Equalize Time, hours—0 to 200 hours (default: 0) • DC Source Temperature ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...

  • Page 19: Reports

    NOTE DC Source Temperature values should be set by Vertiv Services according to the battery manufacturer's requirements. • Battery Temp Warning—30°C to 50°C (default: 40°C) • Battery Temp Limit—35°C to 60°C (default: 50°C) • Disconnect—Enable/Disable (default: disabled) NOTE If Disconnect is set to Enable and the Battery Temp Limit is met, the Battery breaker will open.

  • Page 20: Metering

    DC bus amps • Bypass/Inverter sync window. • Output volts (line-line) per phase Figure 8 System Meter menu ™ Liebert EXL © 2016-2017 Vertiv VERTIV 800kVA UPS Module Mar 14, 2017 10:15:40 Inlet Air Temp: 26°C / 78°F Input Output...

  • Page 21: Operation Menu

    Figure 9 Battery Meter menu ™ Liebert EXL © 2016-2017 Vertiv VERTIV 800kVA UPS Module Mar 14, 2017 10:15:40 Inlet Air Temp: 26°C / 78°F Battery # DC Volts Temp C Batteries Reset Silence Closed Time Remaining Charge AH Consumed...

  • Page 22: Reset

    System View will display the status of each of the system breakers (MOB’s, MIB, MBB). It will display the system output information including the voltage, current, kVA/kW, frequency and number of modules in the system. Figure 11 Status View—1+N systems only ™ Liebert EXL © 2016-2017 Vertiv VERTIV 800kVA UPS Module Mar 14, 2017 10:15:40...

  • Page 23: Remote Breaker Display

    2.2.9 Remote Breaker Display The Liebert EXL 800 and 1200 remote breaker option has remote circuit breakers for CB1 and BFB. The remote circuit breakers are referred to as Rectifier Input Breaker (RIB) and Remote Backfeed Breaker (RBB). Figure 12 Main display screen—Remote breaker configuration...

  • Page 24: Operation

    INGLE ODULE YSTEMS The Liebert EXL is designed to function while unattended by an operator. The system control logic automatically handles many important functions, as explained in 3.4 - Automatic Operations. Other procedures must be performed manually. Manual procedures available to the operator include startup, load transfers and shutdowns. These procedures are performed by using the touchscreen and some manually operated circuit breakers and switches.
  • Page 25 100A. The maximum allowable recharge current for any unit depends on the kVA rating and the DC source recharge current limit. ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...

  • Page 26: Startup For A Single-Module System With Remote Breakers

    NOTICE Risk of equipment damage. If an abnormal situation occurs during this startup procedure, open the input circuit breaker and investigate the problem. Call Vertiv Services if help is required. WARNING Risk of electric shock, explosive reaction, hazardous chemicals and fire. Can cause equipment damage, personal injury and death.
  • Page 27 If the system was shut down in response to an Emergency Off, there may be alarm messages on the touchscreen that describe system conditions before (or at the time of) the shutdown. Some or all of the alarm conditions may have been resolved. Contact Vertiv Services for assistance in clearing any remaining alarm messages. WARNING Risk of electrical shock and high short circuit current.

  • Page 28: Load Transfer And Retransfer-Single Module System

    NOTICE Risk of equipment damage. If an abnormal situation occurs during this startup procedure, open the input circuit breaker and investigate the problem. Call Vertiv Services if help is required. WARNING Risk of electric shock, explosive reaction, hazardous chemicals and fire. Can cause equipment damage, personal injury and death.

  • Page 29: Maintenance Bypass Load Transfers-Single Module System

    If the maintenance bypass cabinet or switchboard has an optional two-key interlock system, replace the key into the solenoid. If UPS bypass shutdown is required, following instructions in Section 3.1.16 - Shutdown—Single Module UPS. ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...

  • Page 30: Maintenance Bypass Load Transfers-Single Module System: If Load Is On Maintenance Bypass

    • Excessive Eco Mode Suspension event is not set. • Conditions to automatically activate have been satisfied for the full duration of Restart Delay setting. ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...

  • Page 31: Conditions To Suspend Eco Mode

    Bypass is within the slew limits per Bypass Tracking Slew Rate setting Minimum: 0.1Hz/s Maximum: 3.0Hz/s Iteration 0.1Hz/s • Bypass Sync Error event is not active. Bypass input phase differential is greater than 8 degrees ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...

  • Page 32: 3.1.10 Critical Bus Disqualification For Eco Mode

    It assumes that the module has been started and is operating in Normal Mode. ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...

  • Page 33: Eco Mode-Scheduled Operation

    Login as User by entering the applicable password. The default is exl, but may have been changed on-site. Select Config>Setpoints>ECO Mode. A Settings popup will be displayed. ™ Liebert EXL © 2016-2017 Vertiv VERTIV 800kVA UPS Module Mar 14, 2017 10:15:40...

  • Page 34: 3.1.14 Eco Mode-Manual Start

    Reports Operation Config When the Liebert EXL exits Eco Mode, a popup will ask whether the UPS should return to Eco Mode. If the UPS should operate in another mode, select Exit on the prompt. 3.1.16 Shutdown—Single Module UPS Perform a Module Shutdown to remove power from a UPS module.
  • Page 35 Press Yes to shutdown system. Press Cancel to abort shutdown. Once shutdown is complete, a message Shutdown complete will appear. Press Exit to return to main screen. ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...

  • Page 36: Manual Operations-1+N Systems

    If the system was shut down in response to an Emergency Off, there may be alarm messages on the touchscreen that describe system conditions before (or at the time of) the shutdown. Some or all of the alarm conditions may have been resolved. Contact Vertiv Services for assistance in clearing any remaining alarm messages. WARNING Risk of electrical shock and high short circuit current.

  • Page 37: Load Transfer-1+N System: Remove A Ups From System (Collective)

    UPS units in the system. To isolate the UPS from the critical bus, open the MOB breaker. ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...

  • Page 38: Load Transfer-1+N System: Add A Ups To The System (Collective)

    NOTE The Transfer all modules to Inverter command will not be activated if the UPS is not synchronized with the other units in the system. ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...

  • Page 39: Maintenance Bypass Load Transfers-1+N Module System

    If UPS bypass shutdown is required, follow the instruction in 3.2.8 - Shutdown—1+N UPS: UPS Module System Shutdown (Remove UPS Module from the Collective) ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...

  • Page 40: Shutdown-1+N Ups: Ups Module Inverter Shutoff

    A pop-up window will appear with the message Proceed with This Module’s UPS Shutdown? Press Yes to continue shutting down the UPS. Open the module MOB. ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...

  • Page 41: Shutdown-1+N Ups: Ups Module System Shutdown (Remove Ups Module From The Collective)

    Open all the MOB breakers to isolate the UPS units from each other. 10. To isolate the system, open all the breakers and utility feeds to the bypass and rectifier inputs. ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...

  • Page 42: Startup For 1+N System With Remote Breakers

    If the system was shut down in response to an Emergency Off, there may be alarm messages on the touchscreen that describe system conditions before (or at the time of) the shutdown. Some or all of the alarm conditions may have been resolved. Contact Vertiv Services for assistance in clearing any remaining alarm messages. WARNING Risk of electrical shock and high short circuit current.

  • Page 43: Shutdown For Systems With Remote Breakers

    UTOMATIC PERATIONS The Liebert EXL is designed to function while unattended by an operator. The system control logic monitors the performance of the UPS, the availability of power sources and the current required by the critical load. The system control logic: •...

  • Page 44: Overloads

    Bypass conditions are outside the range for a manual transfer or the current load would cause the inverter(s) to be in an overload condition. The UPS module rectifier or inverter is not operating. ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...
  • Page 45 0 to 5. Selecting a value from 1 through 5 will limit the number of retransfers permitted in an hour to the chosen value. Selecting 0 means that there is no limit on the number of retransfers per hour. The default is ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...

  • Page 46: Options

    SOLATOR OARD The Input Contact Isolator Board (ICI) provides a Liebert EXL module interface for up to eight external user alarm or message inputs to be routed through the EXL’s alarm network. The eight contacts are normally open dry contacts. When a contact closes, an event is triggered.

  • Page 47: Figure 14 Optional Input Contact Isolator Board

    Pin # Reduced Rect ILimit None Reduced Batt ILimit None Stop Battery Charge None None None EcoMode Suspended None None None None None None None ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...

  • Page 48: Programmable Relay Board

    The Programmable Relay Board (PRB) provides a means to trigger an external device when an event occurs in the Liebert EXL. Each PRB has eight channels. Each channel has Form-C dry contacts rated at 1A @ 30VDC or 125VAC @ 0.45A.

  • Page 49: Configuring The Programmable Relay Board Settings

    The RAS also includes: • An audible alarm • Lamp Test/Reset push button to test the LED indicators • Audio Reset push button to silence an audible alarm ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...

  • Page 50: Lamp Test/Reset Push Button

    LED indicator that has been triggered by a condition at the load or UPS. To test the LEDs, press the Lamp Test/Reset push button. This lights all of the LED indicators for visual inspection. If an LED indicator does not respond to the lamp test, contact your local Vertiv representative for assistance. ®...

  • Page 51: Master System

    All systems on UPS will follow the first Slave’s LBS Sync Pulse • All other Slave systems on Bypass will follow their own local Bypass Source. ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...

  • Page 52: Maintenance

    Keep the UPS cabinets free of foreign materials such as solder, wire cuttings, etc. Call Vertiv Services if you are not sure of the procedures to follow or if you are not familiar with the design or operation of the equipment.
  • Page 53 En cas d’incendie impliquant de l’équipement électrique, n’utiliser que des extincteurs au dioxyde de carbone ou autres extincteurs approuvés pour combattre des incendies d’origine électrique. ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...

  • Page 54: Routine Maintenance

    Inspect installations in new buildings more often, then alter the inspection period as experience dictates. All Liebert EXL models have a replaceable air filter inside the front doors. These filters can be changed while the UPS is in operation.

  • Page 55: Limited Life Components

    Limited Life Components The Liebert EXL has a design life well in excess of 10 years. Well-maintained units can continue to provide economic benefits for 20 years or more. Long-life components are used in the UPS wherever practical and cost- effective.

  • Page 56: Battery Maintenance

    DC fuses operate at the rated battery voltage at all times. A blown DC bus fuse indicates a serious problem. Serious injury or damage to the equipment can result if the fuse is replaced without knowing why it failed. Call Vertiv Services for assistance. AVERTISSEMENT Risque de secousse électrique et de courrant élevé...
  • Page 57 • After replacing battery jars in a battery cabinet, replace the retaining straps that hold the jars in place on the shelves. This will limit accidental movement of the jars and connectors should the cabinet ever need to be repositioned or relocated. ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...
  • Page 58 Consult the battery manufacturer’s manual for specific information about equalize charging. The equalizing charge time is adjustable from zero to 200 hours and can be initiated automatically or manually. ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...

  • Page 59: Torque Requirements

    If a problem occurs within the UPS, review all alarm messages along with other pertinent data. This information should be given via telephone to the Vertiv Services dispatcher. This information can also be automatically sent by telephone modem. Call 1-800-543-2378 to report a problem or to request assistance.

  • Page 60: Upstream Feeder Circuit Breaker Setting Inspections

    NOTE While Vertiv can provide typical guidelines, the responsibility for the proper breaker trip settings outside the Liebert-manufactured UPS equipment resides with the owner. Contact Vertiv Services at 1-800-543-2378 for further details.

  • Page 61: Specifications

    Vertiv sales representative or call Vertiv Services at 1-800-543-2378. Exercise care during installation to ensure unimpeded airflow through the UPS. For operation at higher elevations, consult your Vertiv sales representative or call Vertiv Services at 1-800-543-2378. ™ Vertiv | Liebert®...

  • Page 62: Table 7 Electrical Specifications And Standards

    CSA 22.2 107.3 FCC Part 15, Class A (with option filter installed) Standards & Conformities IEC62040-2, Level 4, Criteria A ANSI C62.41, Category A3 &B3 ISTA WEEE ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...
  • Page 63 Width dimensions are with side panels attached. Subtract 1.4" (35mm) for dimensions with both side panels removed. The depth dimensions include the front door and rear panel. ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...

  • Page 64: Disclosures With Regard To Embedded Software Licensed From

    It is User’s responsibility to ascertain the suitability of Sublicensed Software for any situation or application. ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...

  • Page 65: Appendix A - Inverter Overload Curve

    Appendix A - Inverter Overload Curve Figure 17 Liebert EXL inverter overload curve ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...

  • Page 66: Appendix B - Ups Alarm And Status Messages

    With the rectifier enabled and the disconnect closed, one or more of the input line-to-line CLEAR - Input Undervoltage Clr voltages are less than minimum required. ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...
  • Page 67 With the load on bypass static switch, at least one phase of the RMS current has reached the CLEAR - BPSS Overload Clr RMS Current versus Time curve. ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...
  • Page 68 SET - Inv Overload Shutdn At least one phase RMS Current has reached the RMS Current versus Time curve. CLEAR - Inv Overload Done ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...
  • Page 69 Battery testing has been inhibited (See Parametric Data or Testing Start Conditions for more CLEAR - detail). SET - Batt Test Passed The battery has passed a battery test. CLEAR - ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...
  • Page 70 SET - Parallel Comm Warn One of the paralleling control communication busses is no longer communicating within the CLEAR - Parallel Comm Warn Clr system. ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...
  • Page 71 Shutdown-UPS Command or Shutdown-System Command is present. CLEAR - SET - Config Modified One or more settings on the configuration screen have been modified. CLEAR - ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...
  • Page 72 Any bypass fuse indicates that it is failed. CLEAR - SET - Batt Fuse Fail One or more of the battery fuses indicates it is open. CLEAR - Batt Fuse Fail Clr ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...
  • Page 73 SET - SBB Close Fail Bypass Breaker (SBB) closed signal did not transition to a TRUE state within a specified delay. CLEAR - SBB Close Fail Clr ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...

  • Page 74: Table

    Input contact channel signal is active. Pre - Assigned: Inhibit Intelligent Paralleling Custom: Input Contact 2.2 Input contact channel signal is active. Pre - Assigned: None ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...
  • Page 75 CLEAR - BPSS Ovtemp Warn Clr SET - BPSS Ovtemp Limit Bypass static switch semiconductor heat sink temperature exceeds a specified value. CLEAR - BPSS Ovtemp Limit Clr ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...
  • Page 76 SET - Auto Restart Fail With Auto Restart Initiated active, the conditions for automatic restart have failed. See CLEAR - Conditions to Terminate Auto Restart ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...
  • Page 77 Remove module (Xfer to Bypass) command is active. CLEAR - SET - Manual Add Module Add module (Xfer to UPS) command is active. CLEAR - ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...
  • Page 78 NOTES ™ Vertiv | Liebert® EXL™ 625-1100kVA Operation and Maintenance Manual | Rev. 8 | 02/17...
  • Page 79 TECHNICAL SUPPORT / SERVICE Web Site www.vertivco.com Monitoring liebert.monitoring@vertivco.com 800-222-5877 Outside North America: +00800 1155 4499 Three-Phase UPS & Power Systems 800-543-2378 Outside North America: 614-841-6598 LOCATIONS United States 1050 Dearborn Drive P.O. Box 29186 Columbus, OH 43229 Europe Via Leonardo Da Vinci 8 Zona Industriale Tognana 35028 Piove Di Sacco (PD) Italy +39 049 9719 111...
  • Page 80 © 2016 Vertiv Co. All rights reserved. Vertiv and the Vertiv logo are trademarks or registered trademarks of Vertiv Co. All other names and logos referred to are trade names, trademarks or registered trademarks of their respective owners. While every precaution has been taken to ensure accuracy and completeness herein, Vertiv Co. assumes no responsibility, and disclaims all liability, for damages resulting from use of this information or for any errors or omissions. Specifications are subject to change without notice.
