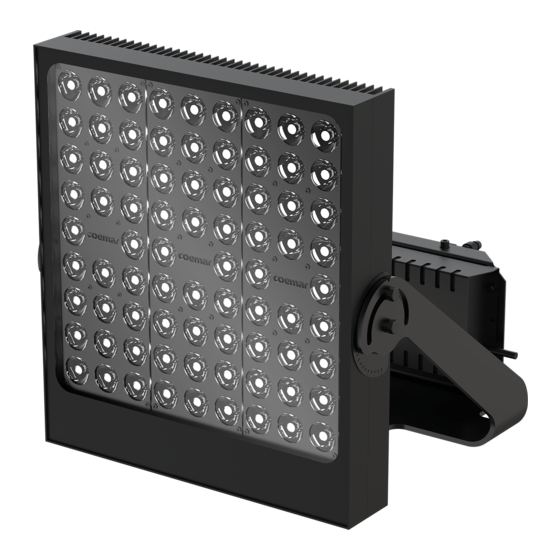

Coemar Panorama ACL Manual

Daylight
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Panorama ACL
Daylight
PRELIMINARY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Panorama ACL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Coemar Panorama ACL

Summary of Contents for Coemar Panorama ACL

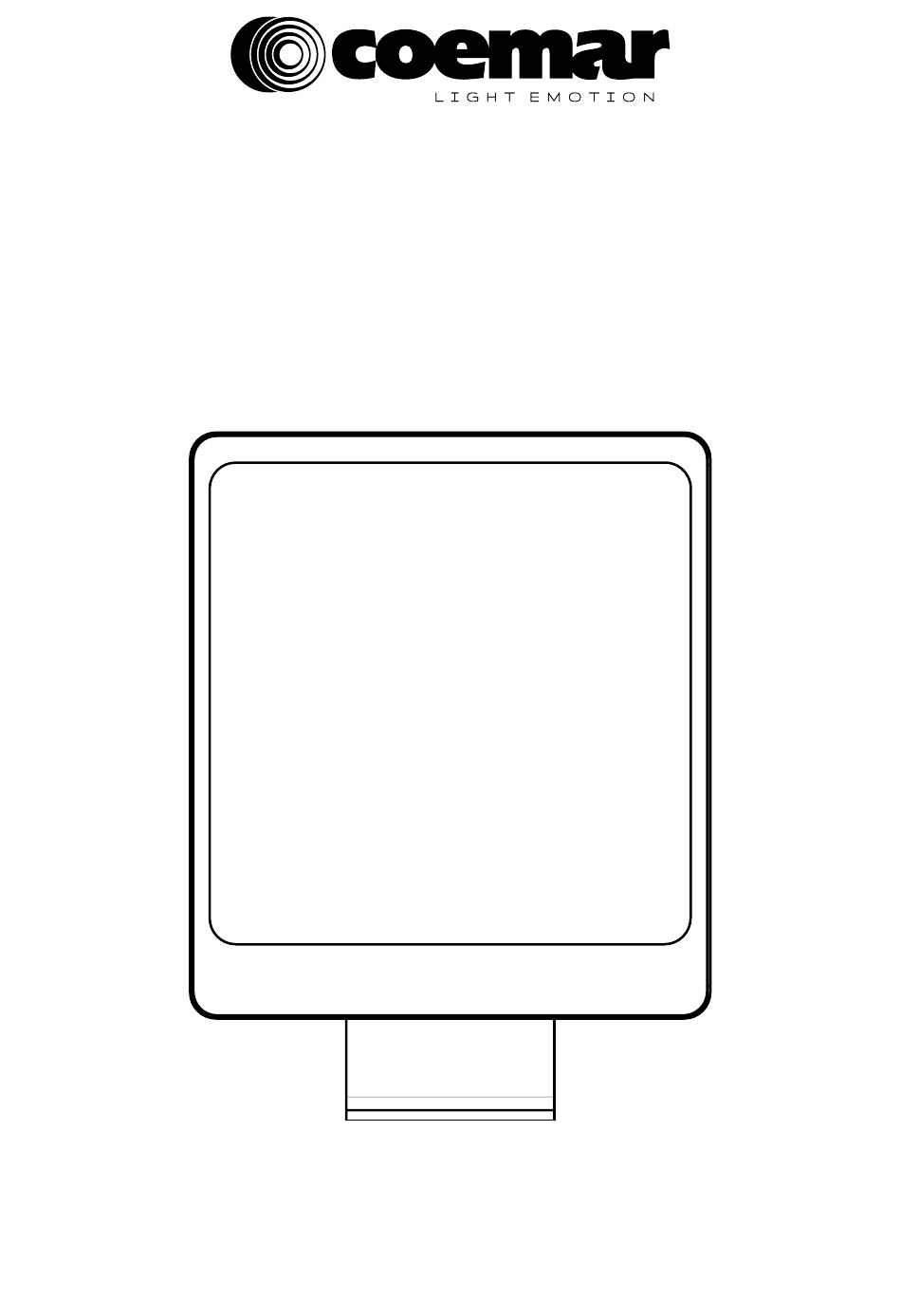

  • Page 1 Panorama ACL Daylight PRELIMINARY...
  • Page 2 Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your Panorama ACL Daylight: this information will assist us in providing spare parts, repairs or in answering any technical enquiries with the utmost speed and accuracy.

  • Page 3: Table Of Contents

    Index 1. Packaging and transportation ..........................Pag. 5 1.1 Packaging ................................Pag. 5 1.2 Transportation ..............................Pag. 5 2. General information ............................... Pag. 5 2.1 Safety informations ............................Pag. 5 2.2 Warranty conditions ............................Pag. 6 2.3 EC norms ................................. Pag. 6 3. Product specifications .............................Pag. 7 3.1 Technical characteristics ...........................Pag.

  • Page 4: Packaging And Transportation

    Packing list Ensure the packaging contains: 1 Panorama ACL Daylight 1 Instruction manual Transportation The Panorama ACL Daylight should be transported in either its original packaging or in an appropriate flight case. . General information Safety informations Fire prevention: 1. Never locate the fixture on any flammable surface.

  • Page 5: Warranty Conditions

    3. The level of technology of Panorama ACL Daylight requires the use of specialised per- sonnel for all service applications; refer all work to your authorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the projector.

  • Page 6: Product Specifications

    Product specifications Technical characteristics Power supply 90-305 V AC, 50-60 Hz - Auto-sensing Max power consumption 450 W Color temperature Daylight Leds 5.700K Weight 10 Kg / 22.04 lbs (incl.PSU) Operating temperature from - 40° C to + 45° C IP Rating IP66 Dimensions...

  • Page 7: Unit's Main Components

    Unit’s main components Components description PCB led + optics Base plate Locking screw for yoke D Cooling system...

  • Page 8: Installation

    Mechanical installation Panorama ACL Daylight may be hung from an appropriate structure in any position or on tripod. If hanging the fixture from a lighting truss or similar, we recommend the use of an appropriate clamp “A”, as shown in the following diagram.

  • Page 9: Powering Up

    The unit may operates at voltages ranges from 90 to 305 V AC at a frequency of 50 or 60 Hz. It is not needed to effect any setup procedures: Panorama ACL Daylight will automatically adjust its operation to suit any fre- quency or voltage within this range.

  • Page 10: Control Signal Connections

    DMX 512 data. The connection must be serial, using connectors XL5 male and female located on the back of Panorama ACL Daylight labelled DMX512 IN e OUT (see diagram). Connectors equipped on Panorama ACL Daylight are IP rated, which ensures protection against water and dust.

  • Page 11: Setup Via Rdm

    . Setup via RDM Quick guide to menu The Panorama ACL Daylight range is compatible with RDM (Remote Device Management). Using an RDM- compliant DMX controller, you can communicate with all the fixtures on a data link without needing to connect to each fixture individually.

  • Page 12: Dmx Chart

    LED control frequency tuning 5.000 Hz 212 - 217 83% - 85% no effect 218 - 240 85% LED control frequency tuning 20.000 Hz 241 - 255 95% - 100% Chart name: DMX512 function Projector: Panorama ACL Daylight Edition: 1 Date: 08.06.2021...

  • Page 13: Spare Parts

    . Accessories and spare parts All the components of Panorama ACL Daylight are available as spare parts from your Coemar dealer or Service. Accurate description of the fixture, model number and type will assist us in providing for your requirements in an efficient and effective manner.
  • Page 14 Wrong DMX address: • Check the DMX Address setting and the output signal of the controller; DMX signal may not reach Panorama ACL Daylight: Panorama ACL Daylight • Inspect the cable connection, correct poor connections or is not responding to DMX inefficient repair or replace damaged cables;...
  • Page 15 User notes ......................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 16 Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
  • Page 17 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italy phone. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to change specifications without prior notice...
