TM

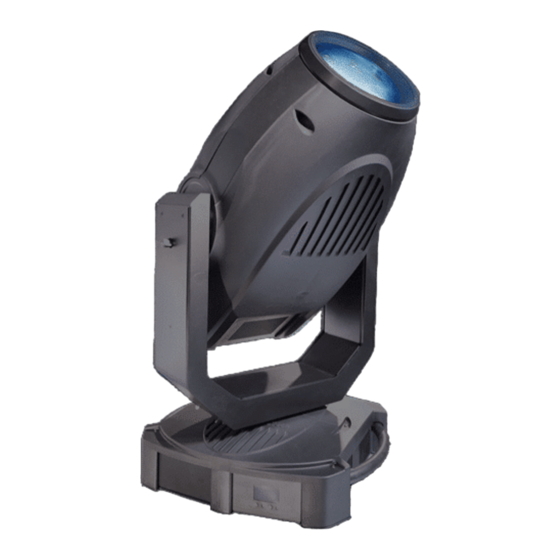

FullSpectrum 6
USER MANUAL
vrs. 1.1 - 28.11.2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LEDko FullSpectrum 6 and is the answer not in the manual?

Questions and answers

Related Manuals for Coemar LEDko FullSpectrum 6

Summary of Contents for Coemar LEDko FullSpectrum 6

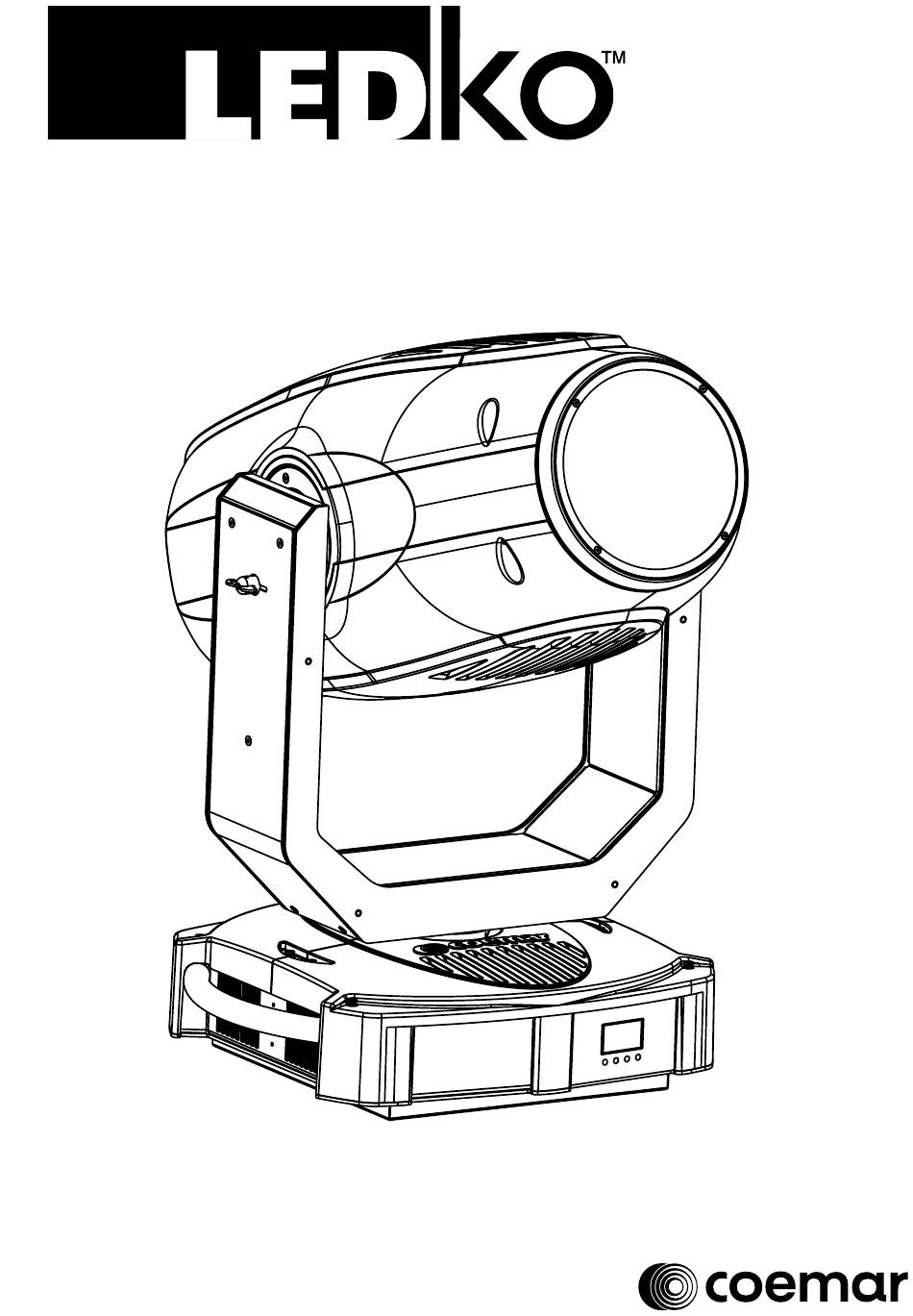

  • Page 1 FullSpectrum 6 USER MANUAL vrs. 1.1 - 28.11.2023...
  • Page 2 Coemar ®. If you are downloading files from our web pages for your personal use, make sure to check for updated versions. Coemar ® cannot take any liability whatsoever for downloaded files, as technical data are subject to change without notice.

  • Page 3: Table Of Contents

    Index 1. Packaging and transportation ..................Pag. 5 1.1 Packaging ............................Pag. 5 1.2 Transportation ......................Pag. 5 2. General information ....................... Pag. 5 2.1 Safety informations ....................Pag. 5 2.2 Warranty conditions ....................Pag. 6 2.3 EC norms ........................Pag. 6 3. Product specifications ....................Pag. 7 3.1 Technical characteristics ...................Pag.
  • Page 4 9. Display panel functions ....................Pag. 20 9.1 Quick guide to menu ....................Pag. 20 9.2 Rapid count ......................Pag. 20 9.3 Display Setup Menu ....................Pag. 21 9.4 Main Function Menu ....................Pag. 23 9.5 Measures Menu ...................... Pag. 26 10.

  • Page 5: Packaging And Transportation

    Packaging and transportation Packaging Open the packaging and make sure that no part of the equipment has suffered any damage dur- ing the transportation. In case of damage to the fixture, contact your currier and your supplier immediately by telephone, fax or e-mail, and inform them you will formally notify them in writing through registered letter.

  • Page 6: Warranty Conditions

    3. The level of technology of LEDko TM Profile FullSpectrum 6 requires the use of specialised personnel for all service applications; refer all work to your authorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the projector.

  • Page 7: Product Specifications

    Product specifications Technical characteristics Power supply 90-230Vac, 50-60Hz Maximum current 1.74 A @ 230 Vac, 4.44 A @ 90 VaC Power factor Cosϕ = 0.9 Power consumption 400 W Color temperature Red, Green, Blu, White, Lime, Amber color mixing Weight (without optic) 36.0 Kg - 79.0 lbs Minimum ambient temperature -20 °C / -4 °F...

  • Page 8: Unit's Main Components

    Unit’s main components Components description Body case Front lens Locking handle Yoke Base handle Display panel...

  • Page 9: Back Panel Description

    Display panel & Power panel description Display Menu Botton Minus Botton *Display panel Enter Botton Plus Botton DMX In PowerCon Out DMX Out PowerCon In *Power panel...

  • Page 10: Installation

    . Installation Mechanical installation LEDko TM Profile FullSpectrum 6 may be floor mounted or it can be hunged from an appropriate structure in any position. The unit is provided with four rubber feet mounted on its base, allowing it to be placed on a flat surface. For installations on a reticular structure, we recommend to use specific “A”...

  • Page 11: Optical Installation

    The safety chain must pass through the hole “B” and then fixed to the structure itself. If using steel cables and chains not Coemar’s production, make sure they are suitable to support the weight of the unit according to normative UL/ETL (required: the weight of 6 complete devices for at least one hour).

  • Page 12: Powering Up

    Note: in case of cable replacement, similar cable with comparable thermal resistant qualities must be used exclusively (cable 3 X 1,5 ø external 10 mm, rated 300/500V, tested to 2 KV, operating temperature -40°C + 180°C, Coemar cod. GKIT02). Connection to mains power LEDko TM Profile FullSpectrum 6 is equipped with two power connectors, one as input and one as output, which can be used to feed up to 6 (at 230 VAC) or 3 (90 VAC) fixtures.
  • Page 13 Warning!! • The use of a thermal/magnetic circuit breaker is recommended. Strict adherence to regulatory norms is strongly recommended. • LEDko TM Profile FullSpectrum 6 should not be powered through a dimmer as this may damage the internal switching power supply. •...

  • Page 14: Control Signal Connections

    . Control signal connections Control signal connection by XLR5 plugs The digital control signal is transmitted to the projector via a two pole cable screened in according to the international standards for DMX 512 data transmission. The connection must be serial, using connectors XLR5 male and female located on the back of LEDko TM Profile FullSpectrum 6.

  • Page 15: Turning On The Projector

    . Turning on the projector After having followed the preceding steps described, proceed with the power supply and turn on the projector connecting it to the mains power. The software version installed on the internal microprocessors will be shown on the display, suddenly it will show the current DMX addressing.

  • Page 16: Dmx Chart

    . DMX chart 8.1 DMX modes 32 channels channels ↓ X axis, Iris Diaphragm base movement (pan) corse X axis, Focus base movement (pan) fine Y axis, Zoom base movement (tilt) corse Y axes, Plus Zoom base movement (tilt) fine Movement Speed Frost Master Dimmer...

  • Page 17: 8.2 Dmx Chart 32 Channels

    8.2 DMX Chart 32 channels channel type of function effect decimal percentage control X axis, base proportional coarse control of the base motor proportional 0 - 255 - 100% movement movement X axis, base proportional fine control of the base proportional 0 - 255 - 100%...
  • Page 18 step no effect exalts green color and proportional 0 - 126 - 49% diminishes magenta presence green step no effect saturation exalts magenta color and proportional 128 - 254 50% - 100% diminishes green presence step no effect 100% spare step no effect 0 - 255...
  • Page 19 framing complete control over the rotation of the framing proportional 0 - 255 - 100% rotation shutters park 0 - 9 - 4% 600 Hz 10 - 84 4% - 33% step LED fan at low speed 85 - 96 33% - 38% LED fan self regulated speed 97 - 108 38% - 42%...

  • Page 20: Display Panel Functions

    Changing the preset settings made by Coemar can vary the functions of the projector so that it will respond differently to the controller;...

  • Page 21: Display Setup Menu

    Display Setup Menu DISPLAY main SETUP functions measures demo DISPLAY REVERSE: DISPLAY SETUP Set the verse of the display by choosing between - DISPLAY reverse STANDARD or REVERSE. - background color - display time out - contrast BACKGROUND COLOR: DISPLAY SETUP Set the background color of the display by choosing - DISPLAY reverse...
  • Page 22 CONTRAST: DISPLAY SETUP Set the percentage of the contrast of the display. - DISPLAY reverse - background color - display time out - contrast...

  • Page 23: Main Function Menu

    Main Function Menu DISPLAY main SETUP functions measures demo PAN/TILT: main functions Choose the PAN or TILT settings between PAN - pan/tilt DIRECTION, PAN SPEED, - dimmer faDING SPEED - GAMMA CORRECTION TILT DIRECTIO, TILT - IRIS SPEED or PAN/TILT LOCK - FAN SETTING DETECTION (ON or OFF).
  • Page 24 IRIS: main functions Set the IRIS and choose between LINEAR or PULSE. - pan/tilt - dimmer faDING SPEED - GAMMA CORRECTION - IRIS - FAN SETTING - BASE FAN VOLTS FANS SETTINGS: main functions Choose the fan settings between MAXIMUM, SILENT - pan/tilt or LOWER.
  • Page 25 FOCUS: main functions Choose MANUAL or AUTO focus. - led frequency - focus - reset - recall default setting RESET: main functions Choose what type of reset you want to implement ALL, - led frequency PAN/TILT ONLY or EFFECT - focus ONLY.

  • Page 26: Measures Menu

    Measures Menu DISPLAY main SETUP functions measures demo TEMPERATURE: measures Shows the current temperature values of the - TEMPERATURE fixture. - VOLTAGE - ALARM STATUS LED plate: shows the LED - USAGE HOURS module temperature. - SOFTWARE VERSION LED driver: shows the electronic board temperature.
  • Page 27 TEMPERATURE: measures Shows the hour counter of the fixture. - TEMPERATURE LED module life. - VOLTAGE - ALARM STATUS LED driver life: shows the - USAGE HOURS overall LED module life - SOFTWARE VERSION currently installed. UNIT LIFE: shows the overall hours of life of the fixture.

  • Page 28: Special Function And Error Messages

    LEDko TM is a very versatile fixture, optional accessories for its customization are available under request, All the components of LEDko TM are available as spare parts from your Coemar dealer or Service. Accurate description of the fixture, model number and type will assist us in providing for...

  • Page 29: Maintenance

    . Maintenance 12.1 Firmware update The firmware of LEDko TM can be updates through the RDM protocol (ANSI E1.20). Contact Coemar assistance to receive the software and the device updater (AC10011A000). 12.2 Periodic cleaning Lenses Even a thin layer of dust can reduce the luminous output and alter the consistency of the beam.
  • Page 30 • Check DMX address of the unit. Help from Coemar Technical Services If you are having difficulties and your problem is not addressed by this document, contact Coemar Technical Services directly at one of this email address: info@coemar.com / service@coemar.com...
  • Page 31 User notes ................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 32 Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
  • Page 33 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italy phone. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to change specifications without prior notice...
