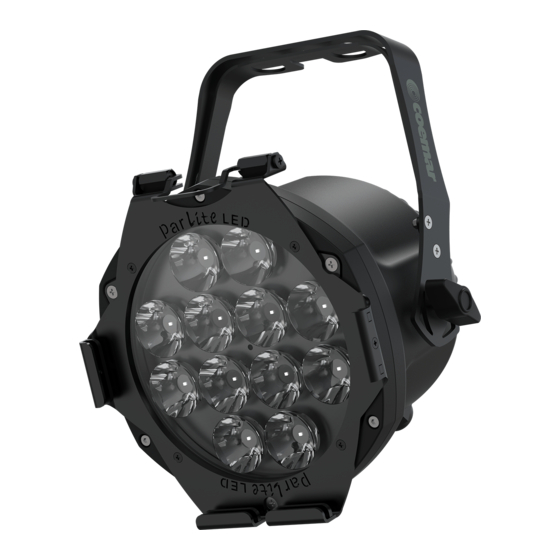

Summary of Contents for Coemar Par lite ACL

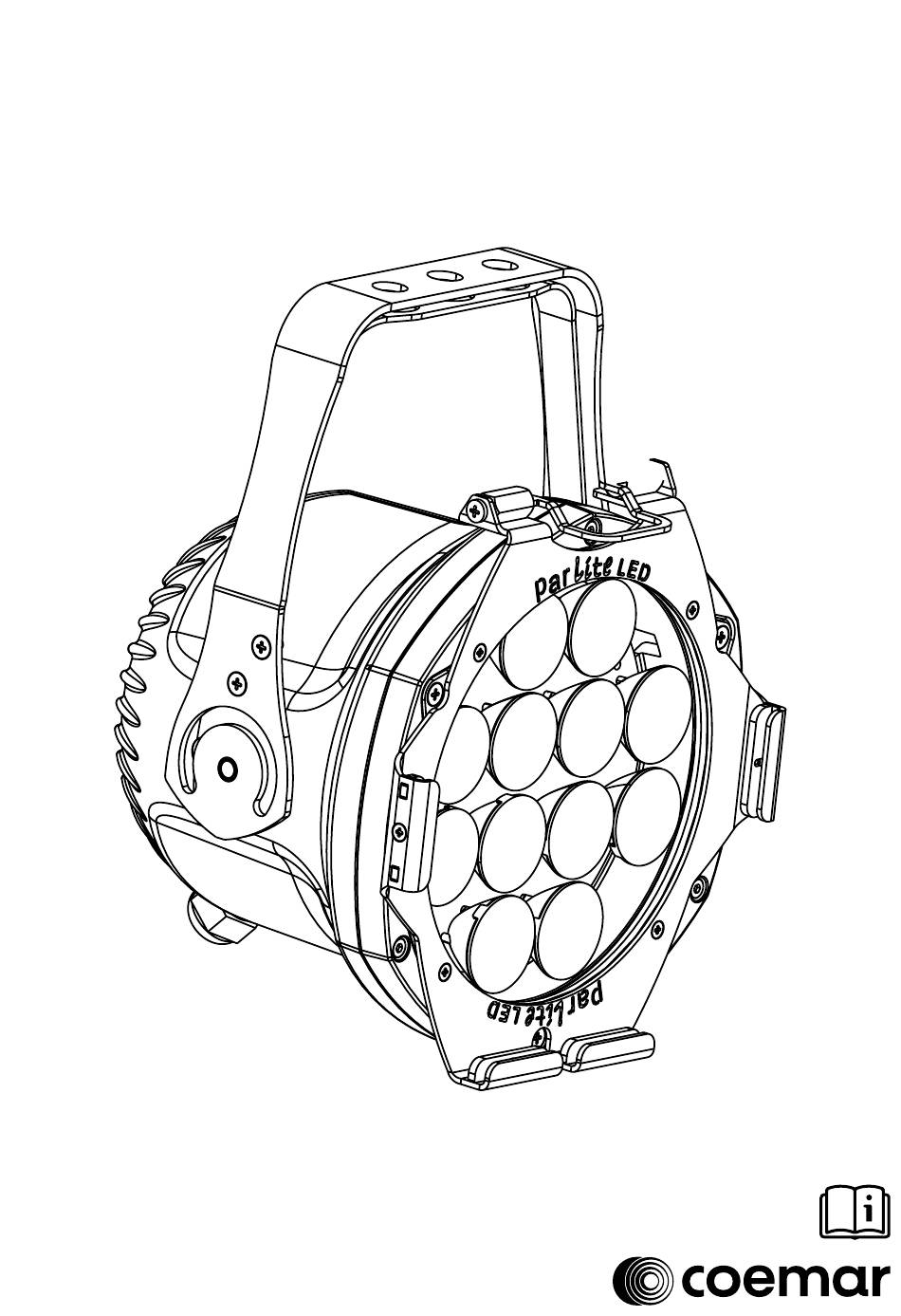

- Page 1 lite USER MANUAL vrs. 2.0 - 31.05.2023...
- Page 2 Coemar ®. If you are downloading files from our web pages for your personal use, make sure to check for updated versions. Coemar ® cannot take any liability whatsoever for downloaded files, as technical data are subject to change without notice.
-
Page 3: Table Of Contents
Index 1. Packaging and transportation................Pag. 5 1.1. Packaging......................Pag. 5 1.2. Transportation...........................Pag. 5 2. General information....................Pag. 5 2.1 Safety informations....................Pag. 5 2.2 Warranty conditions...................Pag. 6 2.3 EC Norms ......................Pag. 6 3. Product specifications ..................Pag. 7 3.1 Technical characteristics...................Pag. 7 3.2 Dimensions......................Pag. 7 3.3 Unit’s main components..................Pag. - Page 4 11. Maintenance......................Pag. 24 11.1 Firmware update..................... Pag. 24 11.2 Periodic cleaning.................... Pag. 24 11.3 Periodic controls.................... Pag. 24 11.4 Fuses....................... Pag. 24 11.5 Fuse replacement..................Pag. 24 12. F.A.Q. and answers..................... Pag. 25...
-
Page 5: Packaging And Transportation
Packaging and transportation Packaging Open the packaging and make sure that no part of the equipment has suffered any damage during the transportation. In case of damage to the fixture, contact your currier and your supplier immediately by telephone, fax or email, and inform them you will formally notify them in writing through registered letter. -
Page 6: Warranty Conditions
3. The level of technology of ParLite ACL requires the use of specialised personnel for all service applications; refer all work to your authorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the projector. -
Page 7: Product Specifications
Product specifications Technical characteristics Power supply 100-250 V, 50/60 Hz, auto-sensing Maximum current 0.22 A at 230V, 0.44 A at 115V Power factor cosφ 0.9 Power consumption 45 W Color temperature Fixed white 3.200 K Weight (without optic) 3.5 Kg - 7.72 lbs. Ambient Operating Temperature -40°C - +40°C (-40°F - 104°F) IP rating IP20 or 65... -
Page 8: Unit's Main Components
3.3. Unit’s main components Components description A IP20 rear panel Projector body C Display Led control PCB Switching power supply Head G Lens group H Front frame... -
Page 9: Back Panel Description
Back panel description Display Plus button Menu button Minus button DMX In Enter button DMX Out Cable... -
Page 10: Installation
. Installation Mechanical installation ParLite ACL may be floor mounted or hanged from an appropriate structure in any position. Permanent installation Use the three holes “A” on the yoke of the ParLite ACL for robust, permanent installation. Mobile installations If hanging the fixture from a lighting truss or similar, we recommend the use of appropriate clamps “B”, affixed to the yoke in the holes “A”... -
Page 11: Safety Chain
Safety chain When hanging ParLite ACL it is recommended to use a safety chain “C”affixed to the yoke and to the suspension device. The safety chain should be either a metal wire rope or a metal chain, both suitably rated for the purpose. Adjusting beam direction The ParLite ACL can be tilted to adjust the beam output. -
Page 12: Opening And Closing Up The Projector
Opening and closing up the projector The various procedures which follow can only be performed with the projector housing removed. To gain access to the internal of the projector use a suitable screwdriver to remove the 3 screws “E” which affix the front frame and remove it. In the IP version, to access the rear area (switch panel), fully untighten the 4 screws “F”... -
Page 13: Powering Up
. Powering up Operating voltage and frequency The unit may operates at voltages ranges from 100 to 250VaC at a frequency of 50 or 60 Hz. It is not needed to effect any setup procedures: ParLite ACL will automatically adjust its operation to suit any frequency or voltage within this range. -
Page 14: Control Signal Connections
. Control signal connections Control signal connection by XLR5 plugs The digital control signal is transmitted to the projector via a two pole cable screened in according to the International standards for DMX 512 data transmission. The connection must be serial, using connectors XLR5 male and female located on the back of ParLite ACL labelled DMX512 IN e OUT. -
Page 15: Turning On The Projector
. Turning on the projector After having followed the preceding steps described, proceed with the power supply and turn on the projector connecting it to the mains power. The software version installed on the internal microprocessors will be shown on the display, suddenly it will show the current DMX addressing. -
Page 16: Dmx Chart
. DMX chart DMX chart 5, 1 channels type of channel function effect decimal percentage control 1 master dimmer proportional adjust luminous output intensity from 0 to 100% 0 - 255 0% - 100% spare channel step no effect 0 - 255 0% - 100% dimmer fine proportional fine dimmer control 16 bit... -
Page 17: Quick Guide To Menu
Changing the preset settings made by Coemar can vary the functions of the projector so that it will respond differently to the controller; therefore carefully read about the functions described here before carrying out any possible selection. - Page 18 Main functions menu Tungsten: tUnG Allows to imitate the slow dimmer curve of the tungsten lamp. Dimmer: • Allows to choose the dimmer curve; Test: Allows to manually set the DMX channels controlled by a DMX console: • Dimmer: sets the luminous intensity; dIMM •...
- Page 19 Display functions: dISP Changes the display settings: RVRS [Reverse] • Reverse: rotates the display of [Display Functions] 180°; • Auto: Sets or disables the automatic display turn off function, which hold would occour after 10 seconds of [On - Off] inactivity;...
-
Page 20: Measure (Meas)
Measures menu (MEAS) Temperature: tEMP Shows the current temperature values: t.LEd • LED: shows module [LED Temperature] temperature; [Temperature] • Board: shows the electronic board temperature. t.brd Volt: [Board Temperature] Shows the power supply voltage. vOLt DMX Input: Shows the value of the DMX channels [Supply Voltage] received by the fixture on every channel that the fixture occupies on the line. - Page 21 LED: Shows the percentage value of the LED status. Fre: Shows the operating frequency of the [LED Status] LED (611 Hz as default). Usage hours: Shows the hour counter of the fixture: • Unit: shows the overall hours of life of the fixture;...
-
Page 22: Electronic Alignment Of The Leds
The display panel of ParLite ACL allows the electronic alignment of the LEDs, this procedure is performed by Coemar at the time of testing, this procedure may be useful for special effects or in case of replacement of internal components (PCBs, LEDs, etc...). -
Page 23: Special Functions Of The Fixture
LED to the maximum light output level. . Accessories and spare parts All ParLite ACL’s components are available as spare parts from your Coemar service centers. Specifying in detail the projector model and the replacement part requested, will help the... - Page 24 . Maintenance 11.1 Firmware update The firmware of ParLite ACL can be updates through the RDM protocol (ANSI E1.20). Contact Coemar assistance to receive the software and the device updater. 11.2 Periodic cleaning Lenses Even a thin layer of dust can reduce the luminous output and alter the consistency of the beam.
- Page 25 . F.A.Q. and answers The following list shows common issues that may be simply solved. If issues persist, the unit must be repaired by a qualified personnel or just contact your Coemar service near you. Question Possible solution Projector not powered on: •...
- Page 26 User notes ............................................................................................................................................................................................................................................................................................................................................................................................
- Page 27 Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
- Page 28 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italy phone. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to change specifications without prior notice...
