SONiX 8-Bit MCU

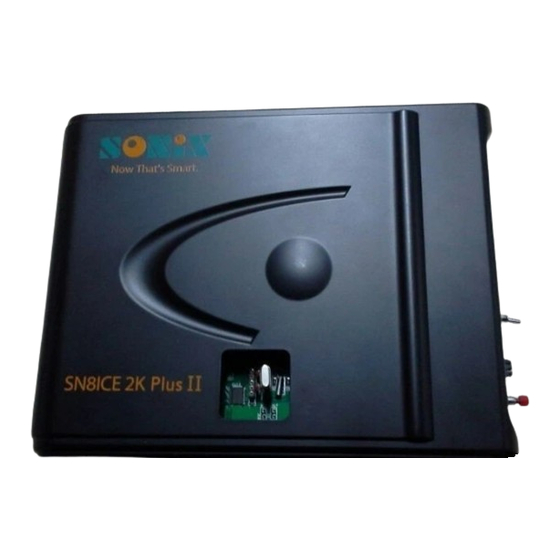

SN8ICE 2K Plus II
USER MANUAL
V1.0
SONIX reserves the right to make change without further notice to any products herein to improve reliability, function or design.
SONIX does not assume any liability arising out of the application or use of any product or circuit described herein; neither does it
convey any license under its patent rights nor the rights of others. SONIX products are not designed, intended, or authorized for us as
components in systems intended, for surgical implant into the body, or other applications intended to support or sustain life, or for any
other application in which the failure of the SONIX product could create a situation where personal injury or death may occur. Should
Buyer purchase or use SONIX products for any such unintended or unauthorized application. Buyer shall indemnify and hold SONIX
and its officers, employees, subsidiaries, affiliates and distributors harmless against all claims, cost damages, and expenses, and
reasonable attorney fees arising out of, directly or indirectly, any claim of personal in jury or death associated with such unintended or
unauthorized use even if such claim alleges that SONIX was negligent regarding the design or manufacture of the part.
SONiX TECHNOLOGY CO., LTD.
V1.0
Advertisement
Table of Contents
Related Manuals for SONIX SN8ICE 2K Plus II
Summary of Contents for SONIX SN8ICE 2K Plus II
- Page 1 SONIX reserves the right to make change without further notice to any products herein to improve reliability, function or design. SONIX does not assume any liability arising out of the application or use of any product or circuit described herein; neither does it convey any license under its patent rights nor the rights of others.
- Page 2 The guide not only helps you to be familiar with all the main functions of the SN8ICE 2K Plus II Emulator, but also makes you realize form the design principle, operation guide and the solution for trouble shooting. To use better the Emulator, please refer to the manual before using.
- Page 3 8-bit micro-controller SN8ICE2K Plus II User Manual Amendment History Version Date Comments VER1.0 July. 2009 First issue SONiX TECHNOLOGY CO., LTD. V1.0...
-
Page 4: Table Of Contents
NTRODUCTION ·······················································································································6 TEPS OF ARDWARE ONNECTION ····················································································································7 ONNECTING THE RANSITION OARD 3. INSTALLATION PROCEDURE······································································································································8 M2IDE······················································································································································8 NSTALL USB DRIVER INSTALL ······································································································································ 11 4.USAGE ATTENTION ·····················································································································································14 5.METHOD TO DEAL WITH SIMPLE MALFUNCTION ··································································································16 6.APPLICATION AND MAINTENANCE NOTICE············································································································17 SONiX TECHNOLOGY CO., LTD. V1.0... -
Page 5: Overview
SN8ICE2K Plus II User Manual 1. Overview The SN8ICE 2K Plus II is designed for the real time hardware emulate which apply to the SN8P2000 series 8-bit MCU. The Emulator provides a reliable and powerful simulation environment for project development. Because of the outstanding compatibility and friendly human interface, the Emulator can provide a convenient development platform for new products. -
Page 6: Hardware Connection
Figure 2.1 Hardware connection Power switch: Switch on/off the operation power supply of SN8ICE 2K Plus II Power LED: Red LED is lightened when the SN8ICE 2K Plus II is power on USB LED: Green LED is lightened when the USB connected successfully. -
Page 7: Steps Of Hardware Connection
Be sure to switch off the power supply of SN8ICE 2K Plus II. Insert the plug of power adapter into the SN8ICE 2K Plus II’ s jack; Connect SN8ICE 2K Plus II to PC via USB cable;... -
Page 8: Connecting The Transition Board
2.3 Connecting the Transition Board The SN8ICE 2K Plus II emulation interface provides general I/O ports of all the SN8P2000 series MCU and offers connection interface for different type chips via correct transition boards. That’s the most remarkable feature of the SN8ICE 2K Plus II. -
Page 9: Installation Procedure
Vxxx is the version of software. Please follow the steps in this section to install your M2IDE: Download the setup file from SONiX’s website http://www.sonix.com.tw, or contact the local agent for this file. Click the setup file M2IDE_V121.exe, run it (the setup file) and an introduction window shows like the picture below. - Page 10 SN8ICE2K Plus II User Manual Please click “NEXT” button and will show up the figure 3.3.This page is for selecting the installation folder. The installation path is C: \ Sonix \ M2IDE_V121. Figure 3.3 Select directory for M2IDE Continuing to click ”Next” button. This step adds the M2IDE shortcut assigning to the application program in the drop-down dialog box.
- Page 11 Just re-check it to see anything wrong. If it’s all correctly, click the “Next” button to enter next installation. At this time, it comes the figure 3.6 for installation progress Figure 3.5 Check again the installation setting Figure 3.6 installation progress SONiX TECHNOLOGY CO., LTD. V1.0...
-
Page 12: Usb Driver Install
Figure 3.7Finish installation 3.2 USB DRIVER INSTALL SONiX M2IDE with updated version already embedded in USB driver, user could install it according to steps shown below: First step: User needs to install M2IDE (Downloading and installing the last corresponding version in the website is recommended.) Second step: Utilizing USB connection wire to connect UTP with USB port, at this moment,... - Page 13 Third step: Choose “No, not for this time ” and click ”Next” to enter the dialogue box as the figure 3.9 shown below. Figure 3.9 choose the operation of interface Choose “install the software automatically”. It will enter to the figure 3.10 search the driver automatically. Figure 3.10 Search the driver automatically SONiX TECHNOLOGY CO., LTD. V1.0...
- Page 14 In the process of installation, it will show the figure 3.11 the information of install hardware. Choosing “Continue” to complete the installation .As the figure 3.12 below, click “Finish” for using, Figure3.11 installation of hardware Figure 3.12 Finish installation SONiX TECHNOLOGY CO., LTD. V1.0...
-
Page 15: Usage Attention
Be sure to install the correct oscillator circuit （via the rectangle gap area）before emulating with the SN8ICE 2K Plus II Emulator. The SN8ICE 2K Plus II Emulator provides two types of oscillator clock resource: the RC oscillator clock and the crystal oscillator clock. The following figures show the installation steps. - Page 16 8-bit micro-controller SN8ICE2K Plus II User Manual The SN8ICE 2K Plus II RC oscillator clock table is as following, just for reference; Table 3.1 RC Oscillator Clock Table There’s some difference of circuit layout in the emulator especially designed for SN8P220x series MCU, which has the shell ID of ‘SN8ICE 2K-USB’...
-
Page 17: Method To Deal With Simple Malfunction
If there’s any suspicion about the functions of SN8ICE 2K Plus II, user can program and test it. If you found that there really is same problem, Please pass your test program and the emulator to the agent, and SONiX will provide you a satisfactory solution. -
Page 18: Application And Maintenance Notice
SN8ICE 2K Plus II. So it’s strongly recommend using it carefully, especially in case of connecting the AC power to the target circuit board. Please be sure to keep the SN8ICE 2K Plus II away from the miscellaneous element or wire during using, and keep monitoring the abnormal situation might caused by the target circuit board. - Page 19 SONIX product could create a situation where personal injury or death may occur.
