- Page 1 Kit Instructions Remote Scale Display Mount (NCR 7895 Scanner/Scale) 7358-K912 Issue A...
- Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
-
Page 3: Revision Record
Revision Record Issue Date Remarks July 2021 First Issue... -
Page 5: Kit Contents

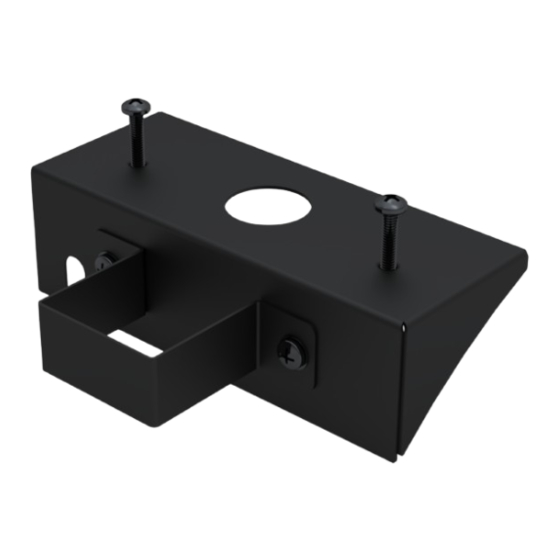

Remote Scale Display Mount (NCR 7895 Scanner/Scale) Remote Scale Display Mount (NCR 7895 Scanner/Scale) This publication provides procedure for installing a Remote Scale Display Mount (NCR 7895 Scannner/Scale) to the NCR FastLane SelfServ™ Checkout (7358) R6L Plus. Kit Contents Part Number... -
Page 6: Installation Procedure
Remote Scale Display Mount (NCR 7895 Scanner/Scale) Installation Procedure To install the Remote Scale Display Mount (NCR 7895 Scanner/Scale), follow these steps: 1. Shut down the NCR Fastlane Self-Checkout software and hardware systems. 2. Open the Tower Cabinet. Do the following: a. - Page 7 Remote Scale Display Mount (NCR 7895 Scanner/Scale) 3. Insert the Remote Scale Display Cable through the cable access hole of the Remote Scale Display Mount, as seen in the image below. 4. Secure the Remote Scale Display to the Mount using two (2) M4 screws.
- Page 8 Remote Scale Display Mount (NCR 7895 Scanner/Scale) 5. Place the Remote Scale Display with the Mount on top of the Core Hood and secure it with the corresponding Clamp using two (2) screws, as shown in the image below. 6. Insert the Remote Scale Display Cable into the Tri-Light Pole cable access hole and...
- Page 9 Remote Scale Display Mount (NCR 7895 Scanner/Scale) 7. Route excess length of cables at the back. 8. Secure the Remote Scale Display Cable with the 7895 Scanner/Scale Cable and the Color Camera Cable together on the bracket using a cable tie, as shown in the image below.
- Page 10 Remote Scale Display Mount (NCR 7895 Scanner/Scale) 9. Install the NCR 7895 Scanner/Scale by doing the following: a. Connect all the cables to the NCR 7895 Scanner/Scale.
- Page 11 Remote Scale Display Mount (NCR 7895 Scanner/Scale) b. Place the Scanner/Scale into the Scanner bucket. c. Lower the Scale Plate.
- Page 12 Insert key in the door latch lock and then turn it clockwise to lock the door. c. Remove keys. 11. Ensure that the devices are working properly by powering up the NCR FastLane SelfServ™ Checkout (7358) R6L Plus software and hardware systems.
