- Page 1 Kit Instructions Basket Shelf (Walmart) 7358-K501 Issue A...
- Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
- Page 3 Revision Record Issue Date Remarks Nov 2020 First Issue...

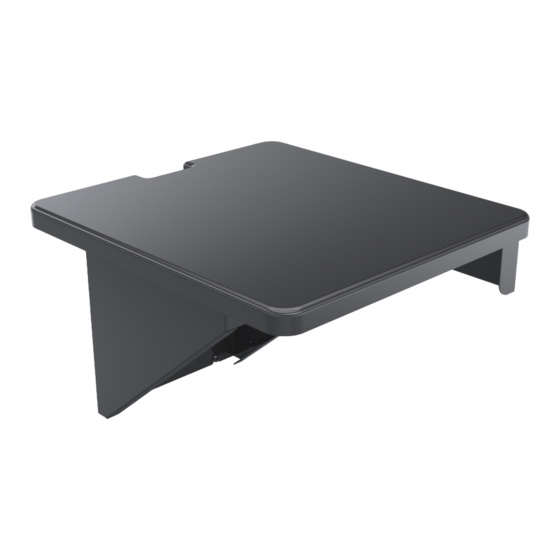

- Page 4 Basket Shelf (Walmart) This publication provides procedures for installing a Basket Shelf to an NCR FastLane SelfServ™ Checkout (7358) R6L Plus unit. Kit Contents Part Number Description 497-0528258 Kit - Walmart Input Shelf 006-8604541 Screw, 1/4-20x1/2, Pan Head, Phillips (4 pcs)
- Page 5 Basket Shelf (Walmart) Installation Procedures To install the Basket Shelf, follow these steps: 1. Insert four (4) screws into the side of the Core as an alignment guide. Leave at least 1/4 inch of the screw visible. 2. Align the Basket Shelf over the alignment screws and then slide the Shelf down onto the screws.
- Page 6 Basket Shelf (Walmart) 4. Install the Label Plate to the front of the unit using two (2) screws, as shown in the image below. Note: The Label Plate position depends on the orientation of the unit.
