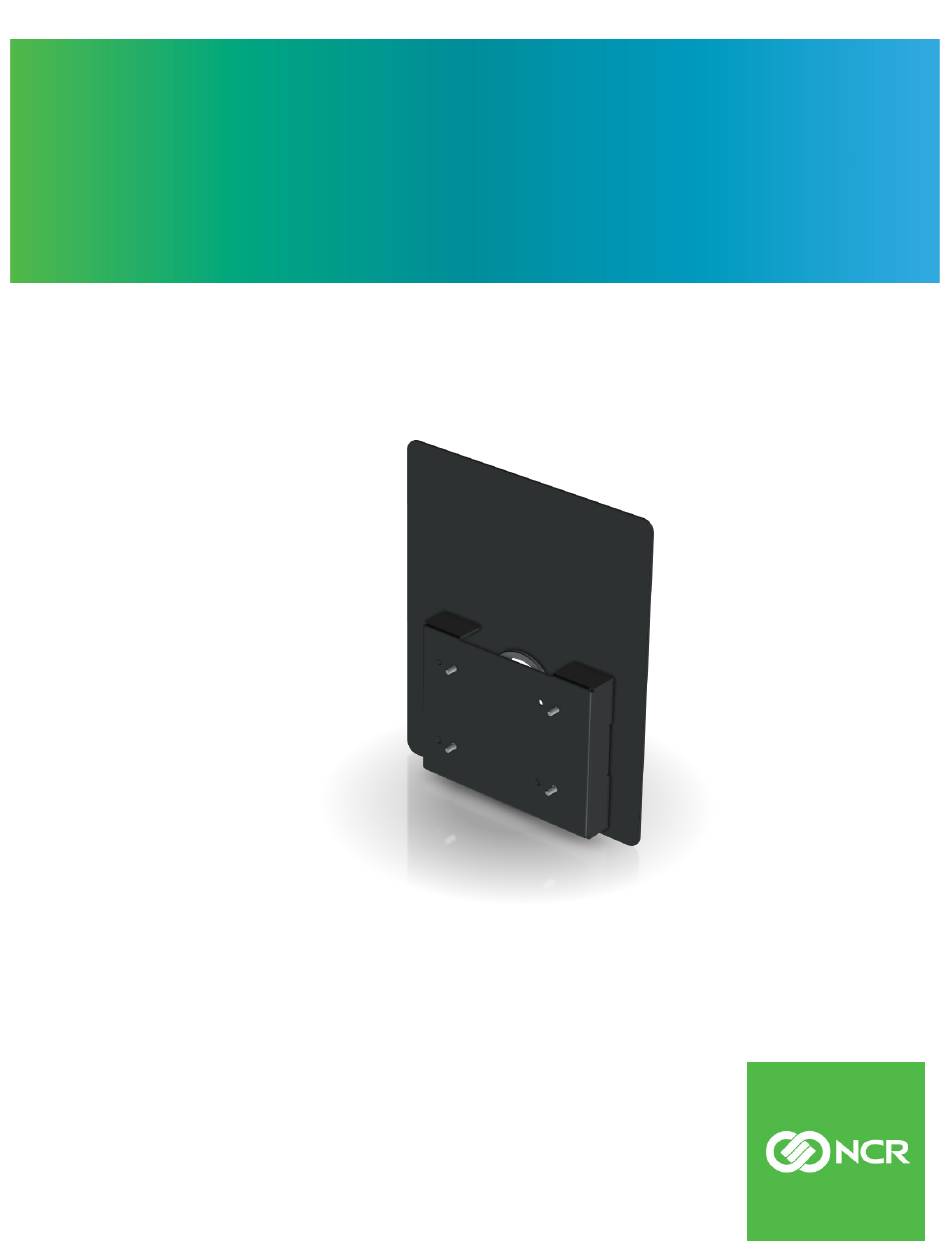

- Page 1 Kit Instructions PIN Pad Mount (Castles Saturn 1000L) 7350-K988 Issue A...
- Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Software screen images are representative, and in some cases, may not match a customer’s installed software exactly.
-
Page 3: Revision Record
Revision Record Issue Date Remarks Aug 2019 First Issue... -
Page 4: Kit Contents
Saturn 1000L device on an NCR SelfServ™ Checkout (7350). Note: The Castles Saturn 1000L device is supplied by the customer. Kit Contents Part Number Description 497-0525932 7350-K988 PIN Pad Mount (Castles Saturn 1000L) Kit 497-0525929 Castles Device Mounting Plate 497-0525930 Spacer Bracket For Castles Device 006-8624863 Screw, M4 x 6, Sems. - Page 5 PIN Pad Mount (Castles Saturn 1000L) Part Number Description 009-0007087 Serrated Nut - Self Locking (M4, 4.2) 006-8624619 Screw, M3-0.5 Pitch x 6 mm, Truss Head, Phillips, Zinc, Nylock Patch (4 pcs) 007-4581603 Nut - Wing, 6-32 Zinc Plated Steel (4 pcs) 497-0423108 Instructions Kit (Reference Sheet) * Items marked with an asterisk are not called out on the image.
-
Page 6: Installation Procedures
PIN Pad Mount (Castles Saturn 1000L) Installation Procedures To install the E-Money device mount on the NCR SelfServ™ Checkout (7350), follow these steps: 1. Open the Upper Cabinet Door. For more information, refer to Opening the Upper Cabinet Door on the next page. - Page 7 PIN Pad Mount (Castles Saturn 1000L) Opening the Upper Cabinet Door To open the Upper Cabinet Door, follow these steps: 1. Insert key into lock on door latch and turn key counterclockwise. 2. Remove key and then press the keylock to unlatch the door. Caution: Ensure that the door is pushed down while lock is pressed because the door will automatically open.
- Page 8 PIN Pad Mount (Castles Saturn 1000L) Removing PIN Pad Blanking Plate To remove the PIN Pad Blanking Plate from the Upper Cabinet Door, follow these steps: 1. Open the Upper Cabinet Door. For more information, refer to Opening the Upper Cabinet Door on the previous page.
- Page 9 PIN Pad Mount (Castles Saturn 1000L) 3. Loosen four (4) wing nuts to remove the Blanking Plate from the PIN Pad bracket, as shown in the image below.
- Page 10 PIN Pad Mount (Castles Saturn 1000L) Installing Castles Saturn 1000L PIN Pad on PIN Pad Mount To install the Castles Saturn 1000L PIN Pad mount on the SelfServ Checkout unit, follow these steps: 1. Remove the PIN Pad Blanking Plate assembly from the SelfServ Checkout unit. For more information, refer to Removing PIN Pad Blanking Plate on page 5.
- Page 11 PIN Pad Mount (Castles Saturn 1000L) 3. Secure the Castles Saturn 1000L and Spacer Bracket assembly to the Mounting Plate using two (2) screws. 4. Attach the PIN Pad and Mount assembly to the PIN Pad bracket using four (4) wing nuts.
- Page 12 PIN Pad Mount (Castles Saturn 1000L) 5. Do the following: a. Connect the PIN Pad cables to the PIN Pad device. b. Route the cables to the back of the device through the Spacer Bracket and then into the Grommet hole. Ensure that the cables pass through the P-Loop as shown in the image below.
- Page 13 PIN Pad Mount (Castles Saturn 1000L) Routing PIN Pad Cables To route the PIN Pad cables, follow these steps: 1. Tilt the E-Box Bracket forward to easily access the cables and ports. 2. From the back of the Upper Cabinet Door, do the following: a.
- Page 14 PIN Pad Mount (Castles Saturn 1000L) 3. Raise and push the E-Box back to the closed position. Note: Ensure that the cables are not caught by the rotation of the E-Box. 4. Route the PIN Pad power cable down the back of the Receipt Printer. 5.
