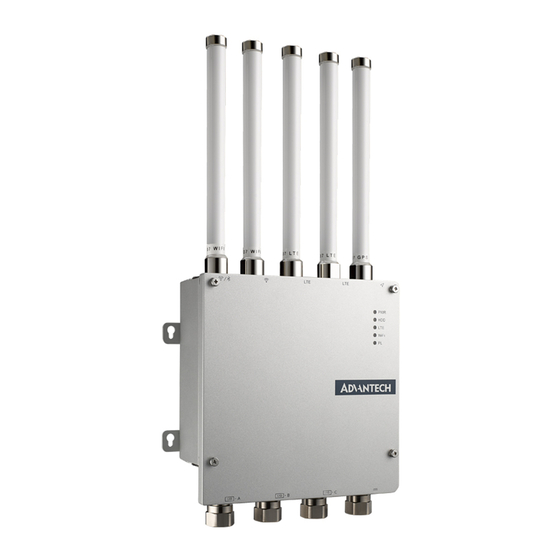

Intel atom waterproof data gateway with ip66 rating and explosion protection
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
UNO-430 電腦
UNO-430-E1H
Intel® Atom Waterproof Data
Gateway with
IP66 Rating and Explosion
Protection

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UNO-430 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech UNO-430

Summary of Contents for Advantech UNO-430

  • Page 1 User Manual UNO-430 電腦 UNO-430-E1H Intel® Atom Waterproof Data Gateway with IP66 Rating and Explosion Protection...
  • Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
  • Page 3 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
  • Page 4 這是甲類測試產品，在居住的環境中使用時，可能會造成射頻干擾，在這種情況下， 使用者會被要求採取某些適當的對策。 Technical Support and Assistance Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: –...
  • Page 5 This product is intended to be supplied by an UL certified power supply or DC source suitable for use at minimum Tma 70 degree C and output meets SELV or ES1, rated 10-36Vdc, 3-0.83A minimum to match the unit rating, if need further assistance, please contact Advantech for further information. UNO-430-E1H User Manual...
  • Page 6 Operators should wear electrostatic wrist or heel straps when they touch UNO- 430. DISCLAIMER: These instructions are provided according to IEC 704-1 standards. Advantech disclaims all responsibility for the accuracy of any statements contained herein. Safety Instructions (IECEx / ATEX) The equipment shall only be used in areas with at least pollution degree 2, as defined in IEC 60664-1.
  • Page 7 MENT CONTRÔLÉ. Assurez-vous que la tension de la source d'alimentation est correcte avant de connecter l'équipement à la prise de courant. L'équipement n'est pas adapté à une utilisation dans des endroits où des enfants sont susceptibles d'être présents. UNO-430-E1H User Manual...
  • Page 8 備。 對於使用電源線的設備，設備周圍必須有容易接觸到的電源插座。 請在安裝前確保設備放置在可靠的平面上，意外摔落可能會導致設備損壞。 當您連接設備到電源插座前，請確認電源插座的電壓符合要求。 請將電源線佈置在人們不易絆倒的位置，請勿在電源線上覆蓋任何雜物。 請注意設備上所有的警告標示。 如果長時間不使用設備，請拔除與電源插座的連結，避免設備被超標的電壓波動 損壞。 請勿自行打開設備。為了確保您的安全，請透過經認證的工程師來打開設備。 如遇下列情况，請由專業人員維修： 電源線或插頭損壞； 設備內部有液體流入； 設備無法正常工作，或您無法透過用戶手冊來正常工作； 設備摔落或損壞； 設備有明顯外觀損； 請勿將設備放置在超出建議溫度範圍的環境，即不要低於 -40°C（-40°F）或 高於 85°C（185°F），否則可能會造成設備損壞。 注意：若電池更換不正確，將有爆炸危險。因此，只可以使用製造商推薦的同一 種或者同等型號的電池進行替換。請按照製造商的指示處理舊電池。 本產品於國內裝置使用時，其電源僅限使用機架電源模組所提供直流電源輸入， 不得使用交流電源及附加其他電源轉換裝置提供電源，其電源輸入電壓及電流請 依說明書規定使用。 根據 IEC 704‐1:1982 規定，操作員所在位置音量不可高於 70 分貝。 限制區域：請勿將設備安裝於限制區域使用。 免責聲明：請安全訓示符合 IEC 704‐1 要求。研華公司對其內容之準確性不承 擔任何法律責任。 UNO-430-E1H User Manual viii...
  • Page 9 Note! Notes provide optional additional information. Caution! The earthing wire of the protective earthing conductor shall be green- and-yellow, 14AWG. Attention! Le fil de terre du conducteur de protection doit être vert et jaune, 14AWG. UNO-430-E1H User Manual...
  • Page 10 UNO-430-E1H User Manual...

  • Page 11: Table Of Contents

    2.3.1 I/O Connectors................11 Figure 2.4 UNO-430 Top I/O View..........11 Figure 2.5 UNO-430 Front LED View ........11 Figure 2.6 UNO-430 Bottom I/O View ........11 Figure 2.7 UNO-430 Box open I/O View........12 Figure 2.8 COM Connector............13 Figure 2.9 COM Connector Pin Assignments......
  • Page 12 Antenna Installation (IECEx / ATEX) .......... 30 Table 2.12:IECEx/ATEX usage N jack P/N ........ 31 2.5.5 Antenna Installation (C1D2)............31 Table 2.13:C1D2 usage Antenna certified with UNO-430 P/N... 32 2.5.6 Mounting kit Installation (Optional) ..........33 Chapter A AMI BIOS Setup.........

  • Page 13: Chapter 1 Overview

    Chapter Overview This chapter provides an overview of UNO-430 specifications. Sections include:  Introduction  Hardware specification  Chassis dimensions...

  • Page 14: Introduction

    This comprehensive protection also eliminates the need for a waterproof cabinet, allowing customers to use the UNO-430 gateway as a stand- alone data acquisition gateway. Moreover, with the provision of standard M.2 2230 Wi-Fi and M.2 3052/3042 5G/LTE sockets, the UNO-430 gateway offers expandable...

  • Page 15: Packing List

    5G/LTE: 1 x M.2 (Type 3052/3042) key B support – WIFI/Bluetooth: 1 x M.2 (Type 2230) key E support card support) – LTE: 1 x micro USB support (for MultiTech Dragonfly Cable Gland  – 4 x Cable Gland 1/2"NPT, OD 6.5~14 mm, IP66 UNO-430-E1H User Manual...

  • Page 16: Chipset

    2 x RS-422/485 (isolated), 50 ~115.2 kbps 1 x RS-232 (console), 50 ~115.2 kbps Serial ports connector: Terminal connector Intel® i210-IT Compliant with IEEE 802.1Qav, IEEE1588/802.1as,802.3az  Supports 10/100/1000 Mbps  Supports Wake on LAN  Battery backup CR2032 3V/200mAh  UNO-430-E1H User Manual...

  • Page 17: Mechanical Specifications

    Mechanical Specifications 1.6.1 Dimensions Ø4.5 Figure 1.1 Dimensions 1.6.2 Weight 3.0 kg Power Requirements 1.7.1 System power DC 10-36VDC 1.7.2 RTC battery CR2032 3V/200 mAh UNO-430-E1H User Manual...

  • Page 18: Environment Specification

    IEC 60079-31 Edition 2  IEC EN 60079-0:2018  IEC EN 60079-7:2015+A1:2018  EN 60079-31:2014  Ex marking string: II 3 G Ex ec IIC T4 Gc IP65 II 3 D Ex tc IIIC T90°C DC IP65 1.8.8 CE, FCC UNO-430-E1H User Manual...

  • Page 19: Chapter 2 H/W Installation

    Chapter H/W Installation This chapter introduces external IO and the installation of UNO-430 hardware.

  • Page 20: Introduction

    Introduction The following sections show the internal jumper settings and the external connectors and pin assignments. Figure 2.1 Motherboard Connector and jumper locations (top side) Figure 2.2 Motherboard Connector and jumper locations (rear side) UNO-430-E1H User Manual...

  • Page 21: Jumper And Switch

    Internal USB (reserved for M.2 E key 2230 for WiFi MultiTech module) CN25 DC Power Input Jumper and Switch Table 2.3: Jumper and Switch List Location Function CN1(motherboard) Clear CMOS SW1 (I/O board) RS-232 console mode function setting UNO-430-E1H User Manual...

  • Page 22: Clear Cmos

    2.2.1 Clear CMOS Configure the UNO-430 to match the needs of your application by setting jumpers. To close a jumper, you connect the pins with the clip. To open a jumper, you remove the clip. Sometimes a jumper will have three pins, labeled 1, 2 and 3. In this case you would connect either pins 1 and 2, or 2 and 3.

  • Page 23: Connectors

    Connectors 2.3.1 I/O Connectors Figure 2.4 UNO-430 Top I/O View Figure 2.5 UNO-430 Front LED View Figure 2.6 UNO-430 Bottom I/O View UNO-430-E1H User Manual...
  • Page 24 2.3.1.1 Cable Gland UNO-430 provides four 1/2"NPT cable glands (I/O-A / I/O-B / I/O-C / Power) to sup- port easy wiring/connecting to the inner terminal block and RJ45 connectors. I/O-A is use for RJ45 LAN cable. I/O-B is use for CN20/CN21 to offer RS-232 (con- sole).
  • Page 25 2.3.1.2 COM Connector The UNO-430 features 1 x RS232 (console) and 2 x 422/485 (isolated) ports in termi- nal block type, RS-232 (console) can enable/disable remote control function by switch. You can find detailed setting methods in Chapter 2.2.2. Figure 2.8 COM Connector Figure 2.9 COM Connector Pin Assignments...
  • Page 26 2.3.1.4 LAN Connector UNO-430 is equipped with two Gigabit LAN controllers. An Intel® i210 Ethernet con- troller that complies with IEEE 802.3u 10/100/1000 Base-T is used as the controller chip. The Ethernet port is a standard RJ-45 jack. Additionally, LED indicators are pro- vided on the front of the device to indicate the system's Link (off/green/orange) and Active (green) status.
  • Page 27 Table 2.6: M.2 B Key Connector Pin Assignments Signal Name Signal Name +V3.3 +V3.3 Mechanical notch B Mechanical notch B Mechanical notch B Mechanical notch B Mechanical notch B Mechanical notch B Mechanical notch B Mechanical notch B DEVSLP UNO-430-E1H User Manual...
  • Page 28 Signal Name 3V_LTE 3V_LTE M2_LTE_PWR_ON M2_LTE_USB_DP M2_LTE_W1_DISABLE_N M2_LTE_USB_DN M2_LTE_LED_WWAN# Mechanical notch B Mechanical notch B Mechanical notch B Mechanical notch B Mechanical notch B Mechanical notch B Mechanical notch B Mechanical notch B WAKE_ON_WAN# M2_LTE_W2_DISABLE_N USB_Z_SSRX1- M2_SIM1_RESET UNO-430-E1H User Manual...
  • Page 29 PCIE_A_X_TX3+ LTE_RST_GPIO# MPCIE_CLKREQ# CLK_LAN1_PCIE PCIE_WAKE# CLK_LAN1_PCIE+ M2_SIM1_DET LTE_RST_GPIO# 3V_LTE 3V_LTE 3V_LTE IO board M.2 E-key 2230 WiFi Connector (CN8) Table 2.8: M.2 E Key Connector Pin Assignments Signal Name Signal Name +V3.3_MINI USB3_B_P+ +V3.3_MINI USB3_B_P WIFI_LED# BT_LED# UNO-430-E1H User Manual...
  • Page 30 PL programmable LED for user's configurations. PWR(Power): Green means normal, orange means standby.  HDD: Flashing green means normal  LTE: Flashing green means normal  WIFI: Flashing yellow and green alternately means normal  PL: Programmable LED  UNO-430-E1H User Manual...

  • Page 31: Internal Maintenance I/O

    2.3.2 Internal maintenance I/O UNO-430-E1H User Manual...
  • Page 32 2.3.2.1 USB connector UNO-430 provides 1 x USB 3.0 and 1 x USB2.0 interface connectors, which give complete Plug & Play and hot swapping for up to 127 external devices. The USB interface complies with USB XHCI, Rev. 3.0. Please refer to the table below for pin assignments.

  • Page 33: Chassis Grounding

    Return DP_PWR Chassis Grounding The UNO-430 provides good EMI protection and a stable grounding base. There is an easy-to-connect chassis grounding point (M4 screw) to use. Note: When fix M4 grounding screw, please pay attention to the required torque value is 5±0.5 kgf.cm...

  • Page 34: Installation

    2.5.1 Cable gland installation UNO-430 provides four 1/2"NPT cable glands (I/O-A / I/O-B / I/O-C / Power) to sup- port easy wiring/connecting to the inner terminal block and RJ45 connectors. UNO-430 supports four 1/2"NPT cable glands installation. The following steps demonstrate how to install / connect to the inner terminal block and RJ45 connectors.
  • Page 35 Pass the LAN cable through the seal nut with conduit coupling and then go through the skid washer and seal. Lastly, connect the LAN cable to the I/O board through the UNO-430 bottom hole. (Metal conduit is only for C1D2 usage) UNO-430-E1H User Manual...
  • Page 36 Tighten the seal nut by hand until resistance is felt (when the seal contacts the cable). Tighten with a wrench one further turn. (Metal conduit is only for C1D2 usage) UNO-430-E1H User Manual...
  • Page 37 This step is only for C1D2 usage, you will need to use wrench to tighten the con- duit coupling. Follow step 2 to step 5 to finish the other cable glands assembling if needed. (Metal Conduit is only for C1D2 usage) UNO-430-E1H User Manual...
  • Page 38 As shown below, the two screws for hinge of top cove defined torque value is 4~4.5 kgf.cm For cable gland installation shall be compliant with IEC 60079-14 requirements, providing and maintaining degree of protection at least IP65 according to IEC 60079-0 requirements. UNO-430-E1H User Manual...

  • Page 39: Storage Installation (Optional)

    2.5.2 M.2 Storage installation (Optional) UNO-430 supports 1 M.2 (Type 2242) B key storage installation. The following steps demonstrate how to install M.2 storage. Remove 4 screws from top cover of UNO-430 then you can open it. Remove 6 screws from the shielding case on the main board.

  • Page 40: Wifi/Lte Module Installation (Optional)

    SQF SATA M.2 2242 640 256G MLC (-40~85°C) 2.5.3 M.2 WIFI/LTE Module Installation (Optional) UNO-430 supports 1 M.2 (Type 3052/3042) key B for 5G/LTE module installation and M.2 (Type 2230) key E for WIFI/Bluetooth module installation. The following steps demonstrate how to install M.2 WIFI/LTE/Bluetooth modules.
  • Page 41 Install the M.2 2230 WIFI and ? M.2 3042 LTE / 3052 5G module and then fix the screw. Note! Please adjust the right placement to fix the bracket for M.2 3042/3052 module. Recover the shielding case on I/O board and top cover and fix the screws. UNO-430-E1H User Manual...

  • Page 42: Antenna Installation (Iecex / Atex)

    Note: If you need to purchase an M.2 WIFI/LTE Module, you have to select the following models that have been C1D2 and IECEx/ATEX certified with Advantech UNO-430. IECEx/ATEX certified Description EWM-W195M201E 802.11 a/b/g/n/ac with BT4.2 968AD00590 (Quectel EM06-E ) Quectel EM06 LTE module 4G (Cat.6)

  • Page 43: Antenna Installation (C1D2)

    Antenna Installation (C1D2) When using wireless module, please install an N type plug Antenna with MHF con- nector cable that C1D2 certified with UNO-430. (As below list shown for C1D2 usage Antenna certified with UNO-430) The following steps demonstrate how to install the WIFI/Bluetooth, LTE and GPS Antenna.
  • Page 44 MHF4 connector. Note: Please use the C1D2 certified with UNO-430 N type plug Antenna. And those Antenna should meet -40 ~ 70°C ambient temperature requirements follow the defined torque value 20±0.5 kgf.cm for installation.

  • Page 45: Mounting Kit Installation (Optional)

    2.5.6 Mounting kit Installation (Optional) Wall Mounting Fix the mounting kits with 4 (M4x6L) screws Mounting kit P/N: 1960095178N001 Note! Can an only be used in fixed position with antenna facing upward when in outdoor environments. UNO-430-E1H User Manual...
  • Page 46 UNO-430-E1H User Manual...

  • Page 47: Ami Bios Setup

    Appendix AMI BIOS Setup This chapter introduces how to set BIOS configuration data.

  • Page 48: Tpm 2.0 Bios Setting

    The UNO-430 systems support TPM2.0 functionality. This can be enabled or dis- abled in the BIOS menu by following the instructions provided below. Power on the UNO-430 system and press "Delete" to enter the BIOS configura- tion menu. On the "Advanced" tab, select the "Trusted Computing" item.

  • Page 49: Cpu Turbo Mode Bios Setting

    CPU Turbo mode BIOS Setting The UNO-430 systems support CPU Turbo mode. This can be enabled or disabled in the BIOS menu by following the instructions provided below. Power on the UNO-430 system and press “Delete” to enter the BIOS configura- tion menu.
  • Page 50 Choose "enable/disable" to enable or disable the CPU Turbo mode (The default setting is to disable this function). UNO-430-E1H User Manual...

  • Page 51: Console Port Setting

    Appendix RS-232 Console Port Setting...
  • Page 52 The RS-232 console redirection has already been enabled in the BIOS by default. User can easily connect to UNO-430 by using “PUTTY” or other SSH tool. Download and install PUTTY https://www.putty.org/ in your device. Connect the RS-232 cable to UNO-430 COM1.
  • Page 53 The console port over serial port is not enabled in some Linux distribu- tion, user has to manually enable it. We take ubuntu18.04 as example, ubuntu18.04 is already installed in UNO-430, but console port is not enabled. Change GRUB terminal to console and ttyS0. This will provide one GRUB to a ...
  • Page 54 Execution result UNO-430-E1H User Manual...
  • Page 55 UNO-430-E1H User Manual...
  • Page 56 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2022...
