INSTALLATION AND CARE GUIDE

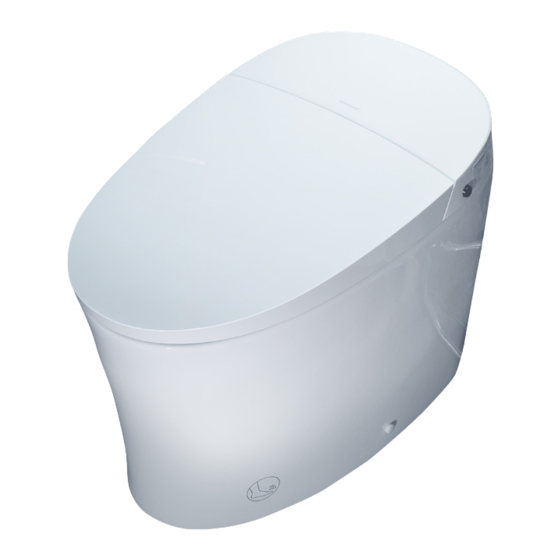

ELECTRONIC BIDET TOILET :EBT700
Compliance with the following codes & standard:
• 2015 Uniform Plumbing Code
• 2018 International Plumbing Code
• 2018 International Residential Code
• CSA B45.5 / IAPMO Z124-2017- Plastic Plumbing Fixtures
SCC Accredited
Accrédité
Customer Service Phone: 562-229-0088. (Monday - Friday 9 AM - 5 PM Pacific Time)
WOODBRIDGE
CB-P/S
ANSI
ACCREDITED
ISO/IEC 17065
OCPS
Product Certification Body
CCN
#1000
Or Email: help@woodbridgebath.com
www.woodbridgebath.com
R
( UPC )
®
( IPC )
®
®
( IPC )
PREFERED
EDUCATION
PROVIDER
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Woodbridge EBT700
Summary of Contents for Woodbridge EBT700
- Page 1 INSTALLATION AND CARE GUIDE WOODBRIDGE ELECTRONIC BIDET TOILET :EBT700 Compliance with the following codes & standard: ( UPC ) ® • 2015 Uniform Plumbing Code ( IPC ) ® • 2018 International Plumbing Code ® ( IPC ) • 2018 International Residential Code •...
-
Page 2: Tools Required For Installation
ELECTRONIC BIDET TOILET READ ALL INSTRUCTIONS BEFORE UNPACKING THE PRODUCT INSTRUCTIONS THAT, IF IGNORED COULD RESULT IN DEATH OR SERIOUS INJURY CAUSED BY INCORRECT HANDLING OR INSTALLATION OF THE PRODUCT. THESE INSTRUCTIONS MUST BE OBSERVED FOR SAFE INSTALLATION. 2 PEOPLE ARE REQUIRED TO LIFT AND DURING ENTIRE INSTALLATION OF THIS PRODUCT INSTALLATION OF THIS PRODUCTS BY AN INEXPERIENCED INSTALLER MAY RESULT... -
Page 3: Important Safeguards
ELECTRONIC BIDET TOILET IMPORTANT SAFEGUARDS When using electrical products, especially when children are present, basic safety precautions should always be followed, including the following: 1.The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. -
Page 4: Grounding Instructions
ELECTRONIC BIDET TOILET CAUTION – Failure to follow the instruction may cause body injury or property damage. 1. Do not install or use the product in wet places as in steam room etc.This product must be connected to properly grounded power outlet socket. 2. -
Page 5: Technical Specification
Technical specification Rated voltage 110V-120V, 50/60Hz Rated power 875W Main Unit Water proof IPX4 Power cord length About 1.5m Flush volume 1.6/1.1Gpf, 6.0L(full flush)/4.1L(half flush) Flushing mode Siphonic jet Rough-in 305mm Toilet Outlet outside diameter ≤100mm Drainage method S-trap Water pressure range 0.08MPA-0.8MPa (static pressure) Heating mode Instant... - Page 6 Deodorization Deodorization method Diatom Deodorization Surface temperature 6-level adjustment Heating power Open and close device Auto lid open-close Heated seat After 10 minutes of use, the seat Burn protection temperature will automatically drop slowly to a low level Seat sensor, Temperature sensor, Thermal Safety device fuse, Thermostat, Leakage protection plug Night light assembly...
-
Page 7: Dimensions/Technical Data
ELECTRONIC BIDET TOILET DIMENSIONS/TECHNICAL DATA 3 1/8″ 13 1/4 ″ Rough-in 12 ″ 11 1/4 ″ 8 ″ 19 1/2 ″ 12 ″ 27 1/8 ″ IMPORTANT INFORMATION • Measurements are +3/8" and subject to change without notice • Please note that installer(s) must be certify or warranty will be voided. •... - Page 8 ELECTRONIC BIDET TOILET DIMENSIONS/TECHNICAL DATA 3 1/8″ 11 1/4″ 2 3/8″ 2 1/8″ 13 1/4″ 1.The product drawing is for reference only, and we reserve the right to modify the appearance of the product. 2.If the appearance of the product is changed, the actual product shall prevail. www.woodbridgebath.com...
- Page 9 ELECTRONIC BIDET TOILET Installation Option 19-5/8" 15-3/4" Recommended location for remote control mounting (Left or Right) water inlet new hose angle valve Connect the water inlet and angle valve of the 1-3/4" 20-7/8" toilet with the matching hose and tighten it Rough-in 12"...
-
Page 10: Parts Identification
Parts identification Left side Bumper Seat Knob Ceramic toilet Right side Dryer shield Rear washing Remote control sensor Front washing Spray nozzle Touch the sensing area with foot www.woodbridgebath.com... - Page 11 Toilet installation 1. Installation of angle valve 3. Hose Draw the drain outlet centerline on the Connect the water inlet and angle valve floor.Install the angle valve at proper of the toilet with the matching hose and position on the wall according to the tighten it.
- Page 12 4. Mounting bracket installation 6. Screw installation Assemble the mounting bracket with Put the screw through the fixing sleeve bolts and then install them to the and then install it through the holes (on pre-installed flange plate on the ground both sides of the toilet ceramic) to the mounting bracket on the ground.
-
Page 13: Self-Inspection
Preparation 1. Turn on the angle valve Check the threaded connection for leaks to ensure complete sealing. Turn the angle valve counterclockwise to the full open position. (Note: The angle valve opens with a large torque for the first time.) Angle valve 2. -
Page 14: Filter Maintenance
Maintenance Main unit care and maintenance 3. Use only a soft cloth or soft brush to clean. Do not pull or push the wand, to 1. Shut off power supply before doing avoid damage. maintenance. 2. Use only a soft, damp cloth to clean. Avoid using harsh chemicals. -
Page 15: Emergency Troubleshooting
Emergency troubleshooting Power and water failure Product unused for a period of time Put around 2.1Gal (8L) water into a barrel When the product is left unused for a and flush the ceramic bowl. long time, especially in cold weather, it is highly recommended to drain the Note: Avoid water spilling from bowl. - Page 16 Description of the button function 1. When no one is seated, press and hold Stop Button to enter shutdown mode (white light off), press Stop Button again to return to functional mode (white light always on). In shutdown mode, all functions and buttons (with the exception of the Stop Button) will not operate.
-
Page 17: Led Display Description
LED display description sterilization water temperature temperature display seat temperature ECO energy saving Description of LED display: 1. During self-inspection, icons of sterilization, water temperature, seat temperature and ECO light up, and the temperature is displayed at 88. After self-inspection, sterilization, water temperature and ECO icons go off... -
Page 18: Troubleshooting Guide
Troubleshooting guide Problem Cause Solution Water supply hose is kinked. Straighten the hose to remove the kink. Angle valve is not fully Poor flushing Turn on the angle valve fully. turned on. Filter is dirty. Clean the filter. Angle valve is shut off. Turn on the angle valve. - Page 19 Problem Cause Solution Power off Turn on the power. The seat switch will not turn on unless the user is seated Sit back on the toilet seat. properly. Stuck due to impurities Remove impurities. Spray rod does not operate or Press the "STOP"...
- Page 20 Problem Cause Solution Night light Night light function is "OFF". Set to "ON". does not work The positive and negative direction of the batteries is Re-load batteries. Remote control incorrect. does not work Batteries have expired Load new batteries. The drying feature stops automatically after about 5 minutes of continuous use.
-
Page 21: Product Warranty Card
