INSTALLATION AND CARE GUIDE

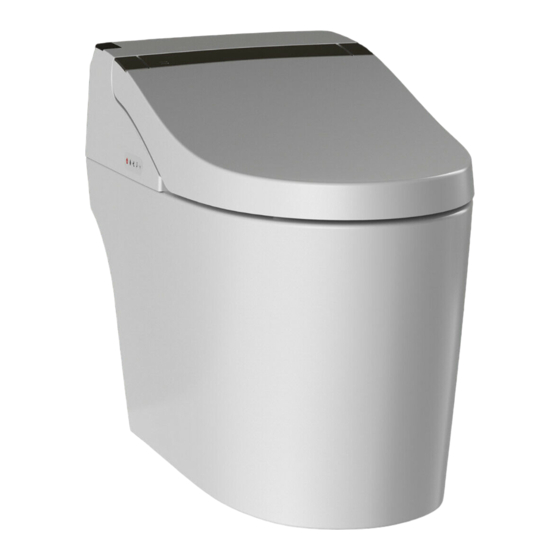

ELECTRONIC BIDET TOILET :B0960S
Compliance with the following codes & standard:
• 2015 Uniform Plumbing Code
• 2018 International Plumbing Code
• 2018 International Residential Code
• CSA B45.5 / IAPMO Z124-2017- Plastic Plumbing Fixtures
ICC
SCC Accredited
TM
LISTED
Accrédité
Customer Service Phone: 562-229-0088. (Monday - Friday 9 AM - 5 PM Pacific Time)
WOODBRIDGE
CB-P/S
ANSI
ACCREDITED
ISO/IEC 17065
OCPS
Product Certification Body
CCN
#1000
Or Email: help@woodbridgebath.com
www.woodbridgebath.com
R
( UPC )
®
( IPC )
®
®
( IPC )
PREFERED
EDUCATION
PROVIDER
20220630 REV. 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Woodbridge B0960S
Summary of Contents for Woodbridge B0960S
- Page 1 INSTALLATION AND CARE GUIDE WOODBRIDGE ELECTRONIC BIDET TOILET :B0960S Compliance with the following codes & standard: ( UPC ) ® • 2015 Uniform Plumbing Code ( IPC ) ® • 2018 International Plumbing Code ® ( IPC ) • 2018 International Residential Code •...
-
Page 2: Tools Required For Installation
ELECTRONIC BIDET TOILET WOODBRIDGE READ ALL INSTRUCTIONS BEFORE UNPACKING THE PRODUCT INSTRUCTIONS THAT, IF IGNORED COULD RESULT IN DEATH OR SERIOUS INJURY CAUSED BY INCORRECT HANDLING OR INSTALLATION OF THE PRODUCT. THESE INSTRUCTIONS MUST BE OBSERVED FOR SAFE INSTALLATION. 2 PEOPLE ARE REQUIRED TO LIFT AND DURING... -
Page 3: Important Safeguards
ELECTRONIC BIDET TOILET WOODBRIDGE IMPORTANT SAFEGUARDS When using electrical products, especially when children are present, basic safety precautions shouldalways be followed, including the following: 1.The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. -
Page 4: Grounding Instructions
ELECTRONIC BIDET TOILET WOODBRIDGE CAUTION – Indicates that failure to follow the instruction may cause body injury or property damage. 1. Do not install or use the product in wet places as steam room etc.This product must be connected to properly grounded power outlet socket. - Page 5 ELECTRONIC BIDET TOILET WOODBRIDGE AC 110V-120V,50/60Hz Rating pressure 1200W-1400W Rating power Main Unit Minimum water pressure 0.07MPa (20L/min. flow). Water pressure Maximum water pressure 0.8MPa (Hydrostatic pressure) range length is about 1.8m Electrical wire 1.6/1.1GPF(6.0/4.1 L) Flush volume Siphonic jet...
-
Page 6: Dimensions/Technical Data
WOODBRIDGE ELECTRONIC BIDET TOILET DIMENSIONS/TECHNICAL DATA Ø1/4" 3-1/2" Rough-in 13" 12" Standard 15-1/8" 11-3/4" 22-3/4" 5-7/8" 28-3/4" IMPORTANT INFORMATION • Measurements are +3/8" and subject to change without notice • Please note that installer(s) must be certify or warranty will be voided. - Page 7 ELECTRONIC BIDET TOILET WOODBRIDGE DIMENSIONS/TECHNICAL DATA 28-3/4" 17-7/8" 22-5/8" 16" Ø1/4" 1-3/4" 21-5/8" 10-1/4" 22-5/8" 21-5/8" 2-1/2" 2-1/8" 16" 2-3/8" 11-3/8" 3-3/4" 13" 1.The product drawing is for reference only, and we reserve the right to modify the appearance of the product.
- Page 8 ELECTRONIC BIDET TOILET WOODBRIDGE Installation Option 19-5/8" 15-3/4" Recommended location for remote control mounting (Left or Right) water inlet new hose angle valve Connect the water inlet and angle valve of the 1-3/4" 20-7/8" Rough-in toilet with the matching hose and tighten it 12"...
-
Page 9: Parts Identification
ELECTRONIC BIDET TOILET WOODBRIDGE PARTS IDENTIFICATION Bumper Left side Power indicator Energy saving indicator Human body sensing window Human body Remote sensing window sensing window Rear cleaning button Seat Drying button Power button Ceramic toilet Flush button Front cleaning button Water discharging Nozzle baffle... - Page 10 ELECTRONIC BIDET TOILET WOODBRIDGE Installation of ceramic toilet 1.Water supply angle valve installation 3.Mounting bracket installation • • Assemble the mounting L-Bracket with bolts Draw drain outlet centerline on the floor, and then install them to the pre-install flange install angle valve at proper position on plate on the ground and tighten with nuts.
- Page 11 ELECTRONIC BIDET TOILET WOODBRIDGE 6.Installation of hose •Connect water inlet and angle valve with new Plastic Insert Screw hose. Decorative cap Install Screw through Plastic Insert and into the opening on the side of the toilet. Tighten Screw into L-Bracket being careful not to over tighten.
-
Page 12: Before Installation
ELECTRONIC BIDET TOILET WOODBRIDGE Before Installation 1.Turn on the angle valve Check thread connection,make sure no leakage is found. Angle valve 2.Power Connection Insert power line leakage protection plug into the power socket, press the reset switch, plug indicator lights on indicating that the power is on. -
Page 13: Daily Maintenance
WOODBRIDGE ELECTRONIC BIDET TOILET Daily maintenance Main unit care and maintenace Spray nozzle maintenance and care 1.Shut off power supply at maintenance. 1.Nozzle self-cleaning Press “nozzle cleaning” button and nozzle will move forward and self-clean. 2.Turn the seat upward open,... -
Page 14: Emergency Troubleshooting
WOODBRIDGE ELECTRONIC BIDET TOILET Emergency Troubleshooting Electricity and water supply cut-off 1. Power failure •Manually press button of full/half flush to perform the toilet flushing. Operation panel 2.Water failure •Put around 8L water into a barrel and flush the bowl of ceramic. - Page 15 WOODBRIDGE ELECTRONIC BIDET TOILET Failure of remote control When the product is left unused for long time 1.Operate the panels on bidet seat to perform. •Especially in winter season,the water inside the tank should be discharged to avoid freezing. To discharge water 1.Turn off the water supply angle valve...
- Page 16 WOODBRIDGE ELECTRONIC BIDET TOILET The illustration of main unit keys 1. Long press "power" button to enter standby mode; and then quick press "power" button to restore functional mode. Power 2. When people sit, press "power" button to stop the function of rear, front cleaning or drying.
-
Page 17: Troubleshooting Guide
WOODBRIDGE ELECTRONIC BIDET TOILET Troubleshooting Guide Problem Cause Solution water supply hose buckling solve the buckling causes block turn on the fill valve fill valve is off No flushing Connect water supply and Water supply is cut off wait for the water... - Page 18 WOODBRIDGE ELECTRONIC BIDET TOILET Produdct Limited Warranty Thank you for choosing out product. This product is warranted for one(1)years since the purchasing date for free repair of problems arising out of defects in workmanship while using in accordance with installation manual and usage cations for intended purposes.
- Page 19 www.woodbridgebath.com...
- Page 20 Thank you for using WoodBridge products! Customer Service Phone: 562-229-0088. (Monday - Friday 9 AM - 5 PM Pacific Time) Or Email: help@woodbridgebath.com www.woodbridgebath.com...
