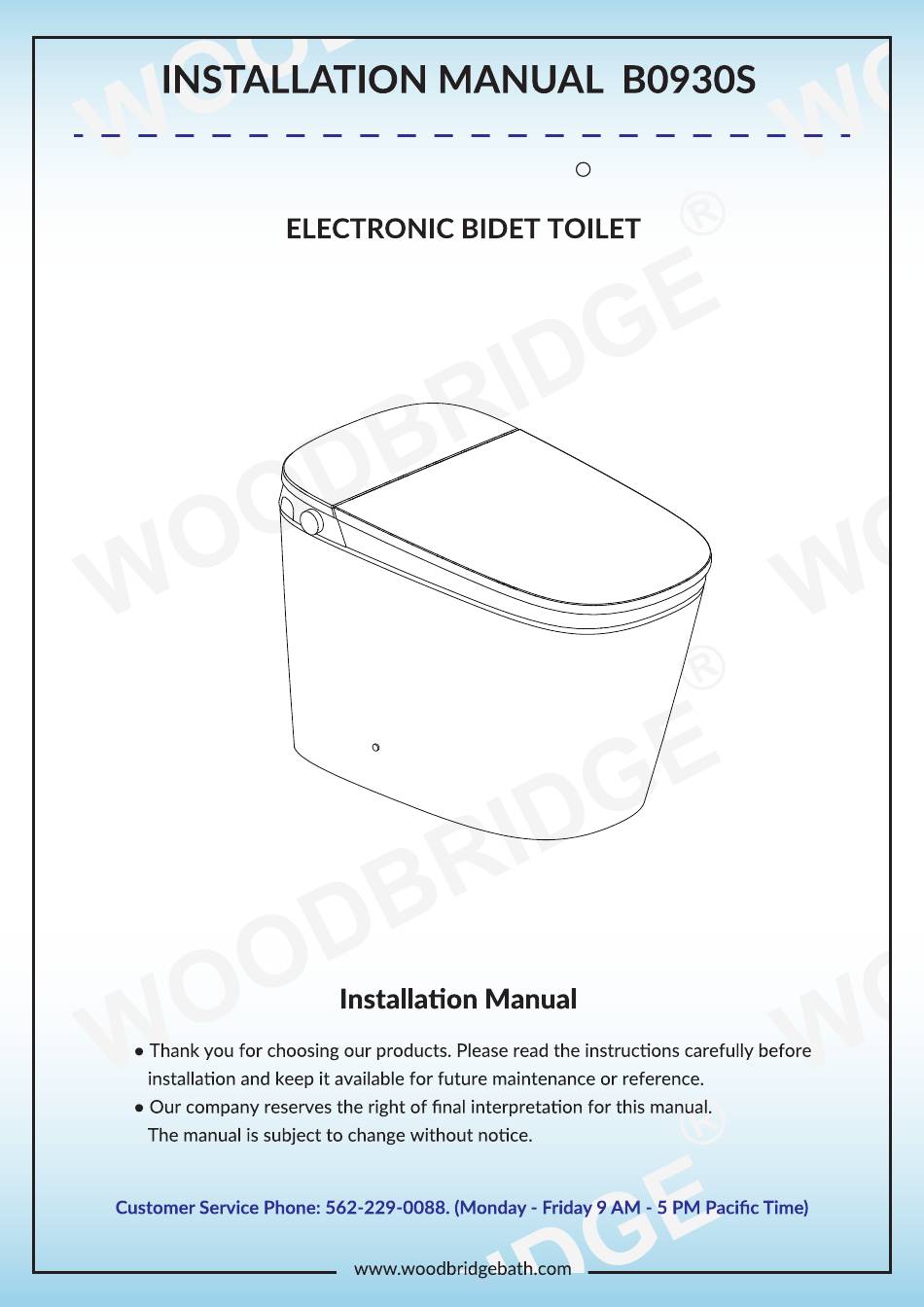

- Page 1 WOODBRIDGE Or Email: help@woodbridgebath.com...
-
Page 2: Important Safeguards
WOODBRIDGE IMPORTANT SAFEGUARDS When using electrical products, especially when children are present, basic safety precautions should always be followed, including the following: The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. -
Page 3: Important Safety Instructions
WOODBRIDGE IMPORTANT SAFETY INSTRUCTIONS CAUTION – Indicates that failure to follow the instruction may cause body injury or property damage. Do not install or use the product in wet places as steam room etc. It is recommended to use water-proof electrical outlet which should be installed in a place where is not easily to get wet. -
Page 4: Technical Specification
WOODBRIDGE TECHNICAL SPECIFICATION Model B0930S Rated voltage 110V-120V, 50/60Hz Rated power 875W Main Unit Water proof IPX4 Power cord length About 2.3m Flush volume 1.6/1.1Gpf, 6.0L(full flush)/4.1L(half flush) Flushing mode Siphonic jet Rough-in 12 inches (305mm) Toilet Outlet outside diameter ≤... - Page 5 WOODBRIDGE Warm air volume Over 0.2m3/min Warm air temperature 6-level adjustment Drying Heating power 230W device Thermal fuse, Thermostat, Leakage protection Safety device plug, Wind temperature sensor Surface temperature 6-level adjustment Heating power Heated seat After 10 minutes of use, the seat temperature...
- Page 6 WOODBRIDGE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 7: List Of Materials
WOODBRIDGE LIST OF MATERIALS Main Unit Remote Control Components Sealing Flange Rough-in Template WOODBRIDGE Or Email: help@woodbridgebath.com Installation Manual Filling funnel NPT 1/2 Three way angle valve Mounting Kit... -
Page 8: Technical Drawing
WOODBRIDGE TECHNICAL DRAWING Chair Height 17-3/8'' 3-1/8'' 13-5/8'' 10-7/8'' 7-1/4'' 20-1/4'' 12'' 27-5/8'' The drawing is for reference only, and we reserve the right to modify the product appearance. Product appearance is subject to change in kind. - Page 9 WOODBRIDGE DIMENSION/TECHNICAL DATA 27-5/8'' 13-5/8'' The product drawing is for reference only, and we reserve the right to modify the appearance of the product.
- Page 10 WOODBRIDGE Installation Option 19-5/8" 15-3/4" Recommended location for remote control mounting (Left or Right) Angle valve connector Inlet connector Ø3/8" Flexible hose Connect the water inlet and angle valve of the toilet with the matching hose and tighten it Rough-in 20"...
-
Page 11: Parts Identification
WOODBRIDGE PARTS IDENTIFICATION Left side Bumper Foam shield filling drawer Seat knob Ceramic toilet Right side Nozzle shield Dryer shield Night light sensor window Front Rear washing washing Spray nozzle Touch the sensing area with foot... -
Page 12: Mounting Bracket Installation
WOODBRIDGE INSTALLATION OF CERAMIC TOILET Install the matching three-way angle Mounting bracket installation valve ・ Assemble the mounting bracket with bolts and then install them to the pre-installed ・ Mark the center line of the sewage outlet flange plate on the ground and lock tight on the ground, and install a three-way with nuts. -
Page 13: Connect The Hoses
WOODBRIDGE 5. Screw installation Connect the hoses ・ Put the screw through the fixing sleeve ・ Connect the water supply hose of the and then install it through the holes (on toilet tank and the water inlet hose of the... - Page 14 WOODBRIDGE 7. Add foam agent (Please buy from local store) ・ Use your fingers or tools to reach under ・ Close the sealing cap and press tightly, the filling box and pull out the filling box. then push the filling drawer to the end.
-
Page 15: Power Connection
WOODBRIDGE PREVIOUS PREPARATEION Turn on the three-way angle valve ・ Check the threaded connection for leaks to ensure complete sealing. Turn the three-way angle valve counterclockwise to the full open position. (Note: The three-way angle valve opens with a large torque for the first time.) - Page 16 WOODBRIDGE AUTO OPEN/CLOSE LID The intelligent toilet can achieve the function of auto lid open/close. On closed situation, so please function the auto lid open/close function by using remote controller. 1. Approaching the toilet When user enters the sensing range, the seat lid opens automatically.
-
Page 17: Foot Sensor
WOODBRIDGE FOOT SENSOR The toilet is equipped with foot sensor lid-open function, it can make lid auto- open by sensing foot movement. When the lid and seat are both closed, touch the sensing area with foot to open the lid. -
Page 18: Daily Maintenance
WOODBRIDGE DAILY MAINTENANCE Main unit care and maintenance Spray nozzle care and maintenance Shut off power supply before doing When no one is seated, turn the knob maintenance. clockwise. The nozzle will automatically stretch out to allow access for cleaning. -
Page 19: Emergency Troubleshooting
WOODBRIDGE EMERGENCY TROUBLESHOOTING Power and water failure Product unused for a period of time ・ Fill up 2.1Gal (8L) water to a bucket and ・ When the product is left unused for a long flush the ceramic bowl. time, especially in cold weather, it is highly recommended to drain the water to Note: Avoid water spilling from bowl. - Page 20 WOODBRIDGE THE ILLUSTRATION OF MAIN UNIT KNOB Knob Anticlockwise Clockwise definition rotation rotation Knob Push the knob function In the seated state, turn the knob clockwise to start the feminine wash function, and turn it counterclockwise to start the rear wash function.
- Page 21 WOODBRIDGE DESCRIPTION OF THE TOP INDICATOR LIGHTS ② ③ ④ ① The power-on self-test is completed. Temperature: When the water temperature indicator light is on, it will display ① the water temperature, and when the seat temperature indicator light is on, it will display the seat temperature;...
-
Page 22: Troubleshooting Guide
WOODBRIDGE TROUBLE SHOOTING GUIDE Problem Cause Solution Water supply hose is kinked Straighten the hose to remove the kink No water Angle valve is off Turn on the angle valve from nozzle A water failure occurred Restore the water supply... - Page 23 WOODBRIDGE Problem Cause Solution User is not within the Adjust position on seat to activate the sensing area of the seat sensor Malfunction of It is normal for the deodorizing function deodorization Deodorization function to continue operating after user leaves,...
- Page 25 Or Email: help@woodbridgebath.com ASVFAF0321023A-1.0...
