INSTALLATION AND CARE GUIDE

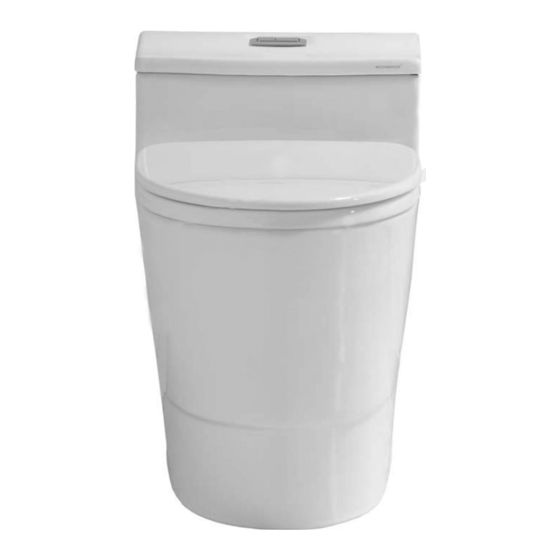

MODERN ONE PIECE TOILET : B0735
Compliance with the following Plumbing Codes & Standards:
• 2015 Uniform Plumbing Code
• 2018 International Plumbing Code
• WaterSense Certified Toilet
• CSA B45.5 / IAPMO Z124-2017- Plastic Plumbing Fixtures
ICC
R
ICC-ES
Customer Service Phone: 562-229-0088. (Monday - Friday 9 AM - 5 PM Pacific Time)
WOODBRIDGE
®
®
SCC Accredited
CB-P/S
TM
LISTED
OCPS
Accrédité
CCN
Or Email: help.woodbridge@gmail.com
www.woodbridgebath.com
R
( UPC )
( IPC )
®
ANSI
ACCREDITED
ISO/IEC 17065
Product Certification Body
#1000
190626 REV. 3
Advertisement
Table of Contents
Related Manuals for Woodbridge B0735
Summary of Contents for Woodbridge B0735
- Page 1 INSTALLATION AND CARE GUIDE WOODBRIDGE MODERN ONE PIECE TOILET : B0735 Compliance with the following Plumbing Codes & Standards: ( UPC ) ® • 2015 Uniform Plumbing Code ( IPC ) ® • 2018 International Plumbing Code ® • WaterSense Certified Toilet •...
-
Page 2: Tools Required For Installation
WOODBRIDGE DELUXE ONE PIECT TOILET READ ALL INSTRUCTIONS BEFORE UNPACKING THE PRODUCT INSTRUCTIONS THAT, IF IGNORED COULD RESULT IN DEATH OR SERIOUS INJURY CAUSED BY INCORRECT HANDLING OR INSTALLATION OF THE PRODUCT. THESE INSTRUCTIONS MUST BE OBSERVED FOR SAFE INSTALLATION. -
Page 3: Dimensions/Technical Data
WOODBRIDGE DELUXE ONE PIECT TOILET DIMENSIONS/TECHNICAL DATA 28 1/2" 14 1/4" 2 1/2" 7 1/4" 2" 18" 5 1/2" Rough-in 12" Standard IMPORTANT INFORMATION • Measurements are ± 3/8" and subject to change without notice • Please note that installer(s) must be certified or warranty will be voided. - Page 4 WOODBRIDGE DELUXE ONE PIECT TOILET WATER SUPPLY LOCATION & TECHNICAL INFORMATION Side View Back View Threaded Shunk (Water Supply Fill Valve) Supply Position 1 15" Supply Position 2 Floor 12" Rough-in 4 1/2" 12" Standard 10" You may connect the water supply line using two different Side View options.
- Page 5 IMPORTANT! Shut off main water supply prior to installation! REMOVE OLD TOILET 1. Shut off water supply line. If you do not have shut-off valve near the toilet shut off main water supply line. 2. Flush the old toilet and make sure that tank is empty. 3.
-
Page 6: Installation Instructions
WOODBRIDGE DELUXE ONE PIECT TOILET INSTALLATION INSTRUCTIONS INSTALL NEW TOILET Step 1. Lift and carefully put the toilet over the closet flange inside the outline made by template so the closet bolts can go through the mounting Bathroom holes in the toilet's base. Once the bowl is in the position... - Page 7 WOODBRIDGE DELUXE ONE PIECT TOILET TOILET SEAT ADJUSTMENT Remove the seat by placing in the vertical position and lifting off. This may require quite a bit of force so we recommend wedging palms face-up at the base of the seat to pry off. Then tighten the fittings and cover with the brushed nickel plates.
-
Page 8: Base Installation
WOODBRIDGE DELUXE ONE PIECT TOILET ADJUSTMENT & MAINTENANCE (DUAL FLUSH VALVE) Important Note: Flush GPF amount is factory set. No additional adjustment is required. This page is for reference only. All adjustments are already made by manufacturer. 1. BASE INSTALLATION... -
Page 9: Water Level Adjustment
WOODBRIDGE DELUXE ONE PIECT TOILET ADJUSTMENT & MAINTENACE (FILL VALVE) Important Note: Flush GPF amount is factory set. No additional adjustment is required. This page is for reference only. All adjustments are already made by manufacturer. Instructions: 95mm When valve installed, the critical level mark on fill valve (identified by C.L. - Page 10 Note: fill and flush valves are maintenance free. No maintenance is required. Retain these installation instructions for future reference! Thank you for using WoodBridge products! Customer Service Phone: 562-229-0088. (Monday - Friday 9 AM - 5 PM Pacific Time) Or Email: help.woodbridge@gmail.com...
-
Page 11: Installer Information
WOODBRIDGE NOTES NOTES INSTALLER INFORMATION INSTALLER INFORMATION DATE OF INSTALL: DATE OF INSTALL: INSTALLER’S NAME: INSTALLER’S NAME: PLUMBER: PLUMBER: CONTRACTOR: CONTRACTOR: LICENSE #: LICENSE #: www.woodbridgebath.com... - Page 12 . This warranty does not WOODBRIDGE extend to plumbing or components installed by dealers, installers or Woodbridge products must be installed by a fully insured and by any party other WOODBRIDGE licensed plumber only. Installation of any our product by anyone...
