Circuit Board Replacement Instructions

For ZZ Type Electric Screens

ATTENTION: Please make sure the version number and the Voltage of the circuit board matches the

version number and the Voltage of the screen. Elite Screens does not recommend making unnecessary

adjustments to the screen, as improper adjustments will damage the unit and void your warranty.

Make sure to unplug the screen from the power before starting the replacement process.

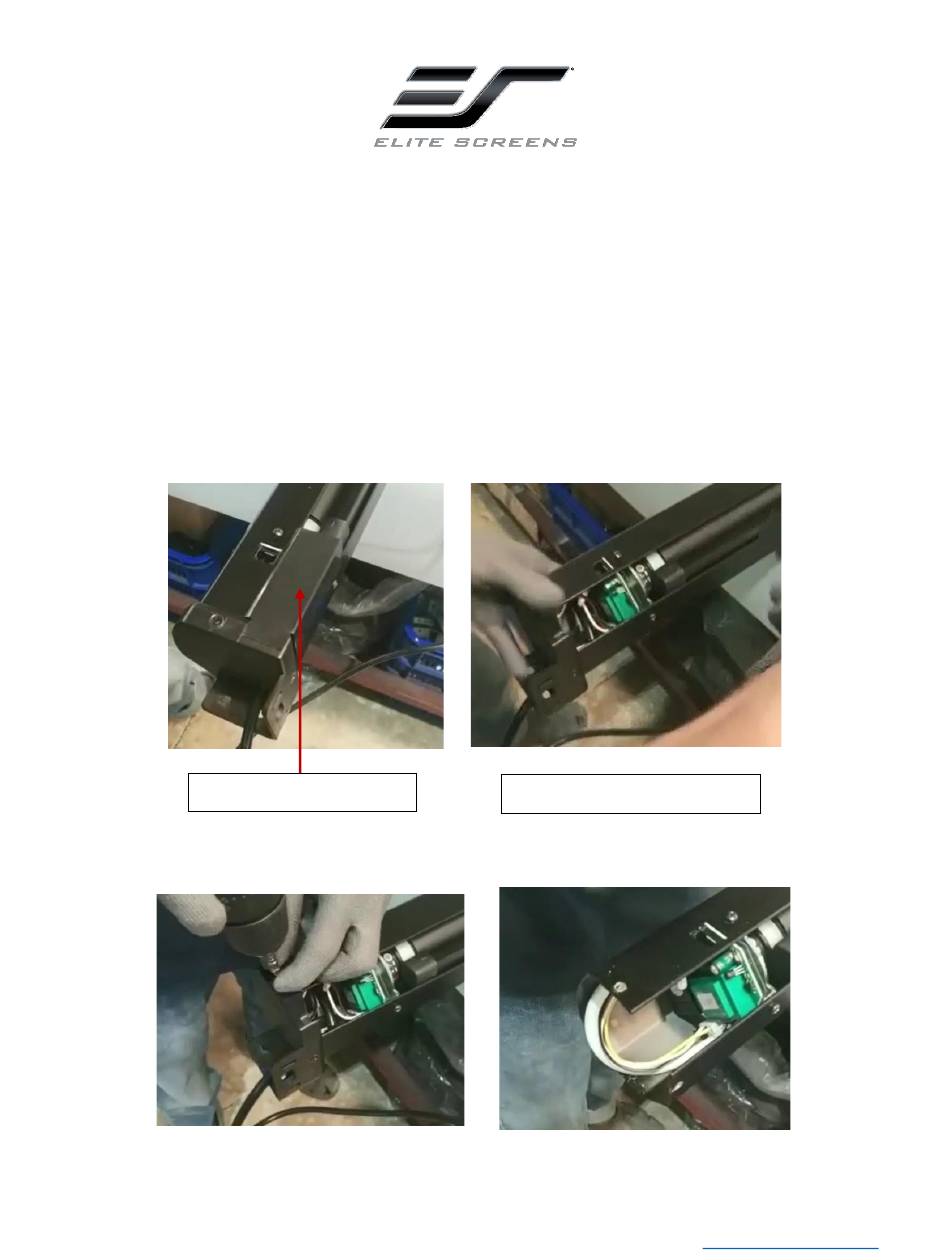

Step 1. Carefully remove the decorative sheet by pulling it outward towards the open end.

Decorative Sheet

Decorative Sheet removed

Step 2. After removing the decorative sheet, remove the screws on the left end cap (facing the screen)

with a Phillips screwdriver, then remove the end cap.

Rev. 08082022

www.elitescreens.com

Table of Contents

Do you have a question about the ZZ and is the answer not in the manual?

Page 1 ATTENTION: Please make sure the version number and the Voltage of the circuit board matches the version number and the Voltage of the screen. Elite Screens does not recommend making unnecessary adjustments to the screen, as improper adjustments will damage the unit and void your warranty.
Page 2 Step 3. Press in the clip on the white terminal, then pull out to remove the two white terminals. Two White Terminals Two White terminals removed Step 4. Remove the three screws that secure the circuit board with a Phillips head screwdriver. Set the screws aside to later secure the new circuit board.
Page 3 Step 6. Insert the two sets of white terminals into the new circuit board. Step 7. Replace and secure the end cap with screws removed in step 2. Step 8. Replace the decorative sheet removed in step 1. Rev. 08082022 www.elitescreens.com...
Page 4 2. Wait for 5 seconds to release the “stop” button. (The indicator on the remote control will flash.) At this point the RF remote control can control the screen. For a local Elite Screens contact or Technical Support, please visit www.elitescreens.com or contact us at service@elitescreens.com...
