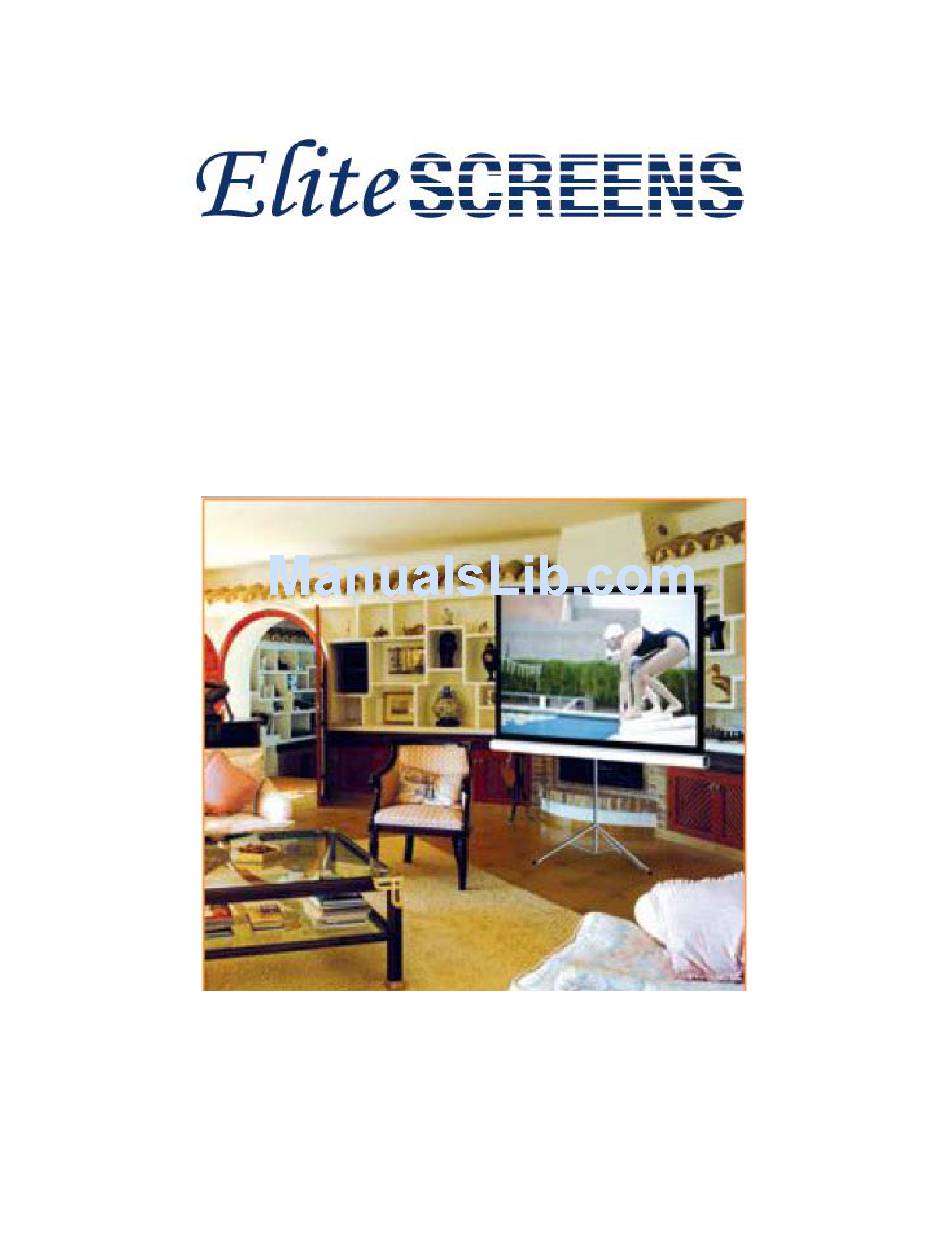

- Page 1 Tripod-Portable Screen Elite Tripod Series USER’S GUIDE Rev 1.1...
- Page 2 Tripod Screen Parts Identification Support beam Top Hook, Keystone Eliminator & Screen Handle Vertical Vertical Adjuster Extension Bar Support Mast Carrying/Adjustment handle & release Screen Tripod junction Screen Casing Tripod Support Legs Tripod Screen deployed Tripod Screen packed up for transport or storage Rev 1.1...
- Page 3 Using the Screen Follow the steps illustrated on (Fig. 1) 1. Place the screen in an upright position with the legs toward the ground. 2. Deploy the Tripod Support legs by pushing down on the Tripod Junction. 3. Turn the screen casing in a 90-degree horizontal position so that the screen casing is now parallel to the ground with the screen handle facing the bottom of the top hook.
- Page 4 2. Use the Vertical Adjuster to position the appropriate height of the Vertical Extension Bar *Note: Different tripod models have different vertical Adjusters. It could be a release button that loosens when depressed or it will be circular knob that will loosen or tighten by twisting it in a clockwise &...
- Page 5 Elite Screens will either replace or repair the defective unit with a brand new replacement *(see exceptions below) after the defective unit is received and/or confirmed defective. Once the product is received, Elite Screens will send out a new *unit to the customer by ground service (subject to inventory availability).
- Page 6 WO WAY TO REGISTER YOUR WARRANTY WITH LITE CREENS A. On Line (Faster and Easier) www.elitescreens.com/register.html B. Fill out & Fax to (562) 483-8498, Attn: Customer Service Dept. *Your Name: _______________________________________________________ Address: ____________________________________________________________ City/State/Zip ________________________________________________________ *Email Address: ______________________________________________________ *Phone: _____________________________________________________________ *Screen Model: _______________________________________________________ *Serial Number: _______________________________________________________ *Date of Purchase: _____________________________________________________...
