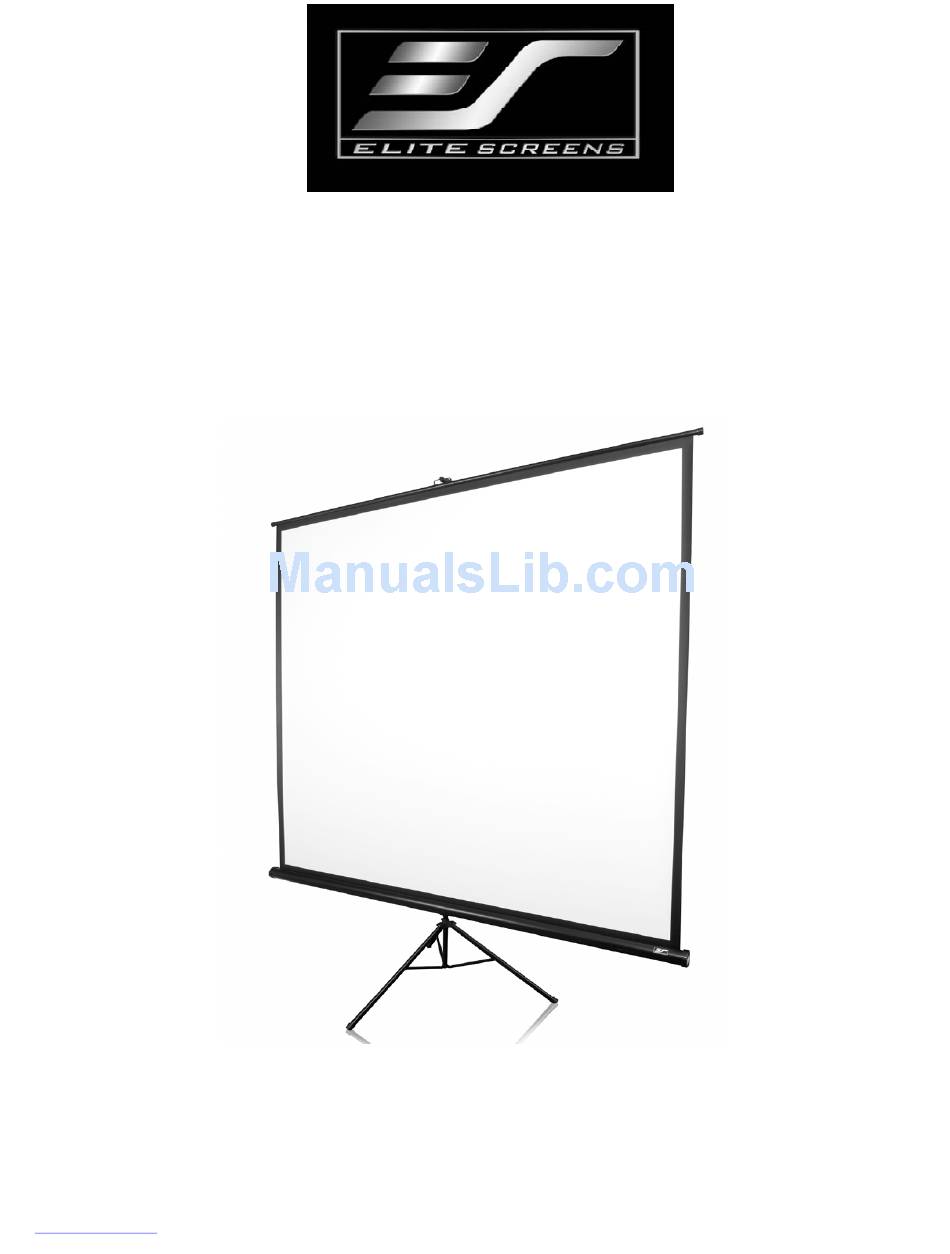

- Page 1 Tripod Portable Projection Screen Elite Tripod Series USER’S GUIDE Rev. 060809-JA www.elitescreens.com info@elitescreens.com...
-
Page 2: Using The Screen
Tripod Screen Parts Identification Support beam Top Hook, Keystone Eliminator & Screen Handle Vertical Extension Bar Vertical locking sleeve ring Screen Material Carrying handle & Screen height adjustment lock/release tab End cap Tripod junction Screen case Tripod Support Legs Using the Screen A. - Page 3 Fig.1 Fig. 2 B. Preparing the tripod screen for projection: Follow the steps below and Fig. 3. 1. Pull the screen handle up vertically and hook the screen handle on the Top Hook. *Note: Use the Keystone Eliminator to prevent “Keystone Effect” from occurring. Keystone Effect is caused when a projector presents its image at a downward angle causing a trapezoid-shaped image to appear on the screen.
- Page 4 C. Disassembling the screen: Follow the steps below and Fig. 4. 1. Unlock the Adjustment Handle by pulling the locking tab to the left and slowly slide the handle all the way down to bring down the position of the screen’s case. 2.
- Page 5 Tripod Series Dimension Table Unit: inches Top of Top of Screen Screen Case Case View Screen Nominal Screen at screen at case at case at length width Model Size Size H x Diagonal Highest lowest highest lowest closed closed H x W W (A) size (D) Level (B1)
-
Page 6: Warranty Information
DOA (Defective On Arrival) unit with a brand new replacement *(see exceptions below) after the DOA unit is received and/or confirmed defective. Once the product is received, Elite Screens will send out a new *unit to the customer by ground service (subject to inventory availability). Should a problem be reported after the 7-day grace period, the item must be shipped to us for warranty repair. - Page 7 ShenZhen GuangDong, China info.india@elitescreens.com Tel: +86-(0)755-8461-7989 Japan Contact: Fax: +86-(0)755-8461-7669 info.japan@elitescreens.com info@elitescreens.com.cn www.elitescreens.com.cn Taiwan: Elite Screens Taiwan Co. Ltd. No.38, Alley 22, Lane 66, Sec. 5, Nanjing E. Rd., Songshan District, Taipei City 105, Taiwan Tel: +886-(02)2747-8979 Fax: +886-(02)2747-8978 info@elitescreens.com.tw www.elitscreens.com.tw...
