Summary of Contents for Elite Screens Elite ezFrame Series

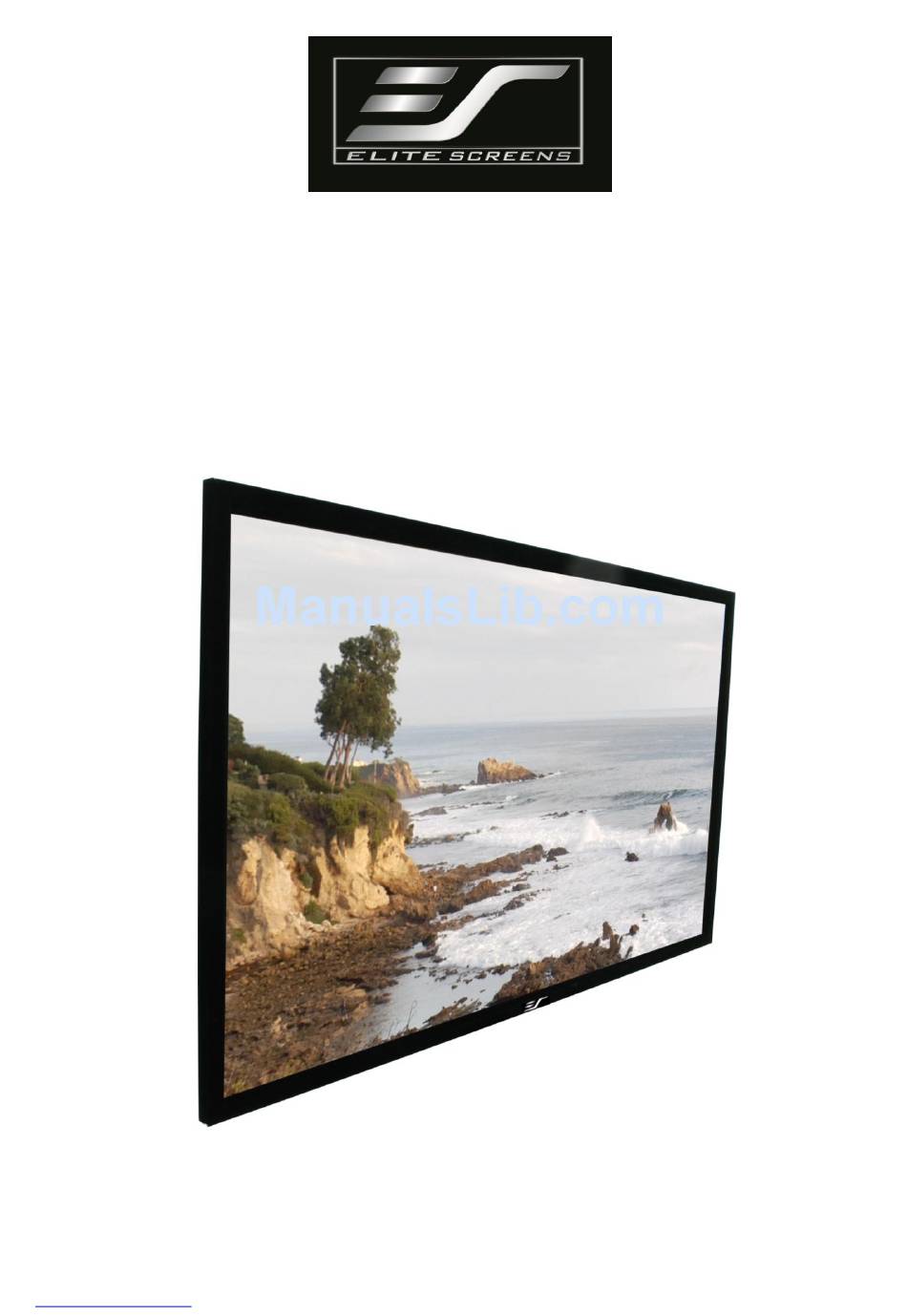

- Page 1 Elite ezFrame Series Fixed Frame Projection Screen User’s Guide Rev. 010410-JA www.elitescreens.com info@elitescreens.com...
-
Page 2: Parts List
12. Black cloth backing x 1 pc (AcousticPro1080 models only) Note: Please make sure all parts are included in your package before proceeding to assemble your Elite Screens fixed frame projection screen. ASSEMBLING THE FRAME 1. Insert the center joint connector to the horizontal frame piece and then fasten it with 2 screws 2. - Page 3 Please do not tighten the screws completely, to make sure the frame piece lines up correctly. 3. Insert both elbow joint connectors into the long horizontal frame (see fig.1) Long frame Push Push Joint ( fig.1) Push Push Short frame Short frame...
- Page 4 Join all four frame parts together following the steps showed below. (fig.2) Insert the exposed ends of the joint connectors into the short (vertical) frame and align the four corners so that they meet at perfect right angles Push Push ( fig.2) After making sure that all four corners join at right angles to form a perfect rectangle, fasten the four angles together by using the (x8) joint screws included.
- Page 5 Attaching the screen material to the frame 1. Lay out the screen and tension rods on a clean and dry surface. Insert the screen tension rods through the sleeves according to their corresponding lengths on each edge of the screen as seen below. (see fig.4) Tension Rod (Horizontal) x 4 Tension Rod (Vertical) x 2...
- Page 6 Black backing for AcousticPro1080 models This procedure only applies to AcousticPro1080 models, disregard if your ezFrame is not an AcousticPro1080 variant. The black backing counters the effects of light penetration that would otherwise light up all items behind the screen and spoil the picture. The black backing goes behind the projection surface and are held into position by Velcro-faced fix plates.
-
Page 7: Center Support
Attaching the Fix Plates___ 1. Make sure that the material and frame are both lying face down on a clean, dry and non-abrasive surface. 2. Center the material inside the frame. Please note the material will be noticeably smaller because stretching the material is required to create a sufficient amount of tension for perfect material flatness. -
Page 8: Installation
3. Slide the top end of the bar into the top center point location to complete center support bar installation. This will provide added stability to your frame and added tension to the material. Center Support Bar (Fig. 8) Installation 1. - Page 9 CAUTION Please follow these instructions carefully to ensure proper maintenance and safety with your ezFrame Screen 1. When hanging the screen up, please make sure that no other objects such as power switches, outlets, furniture, ladders, windows, etc. occupy the space designated for your Fixed-Frame screen. 2.
-
Page 10: Warranty Policy
(Defective on Arrival) unit with a brand new replacement *(see exceptions below) after the DOA unit is received and/or confirmed defective. Once the product is received, Elite Screens will send out a new *unit to the customer by ground service (subject to inventory availability). Should a problem be reported after the 7-day grace period, the item must be shipped to us for warranty repair. - Page 11 Taiwan Tech Support & Warranty Claim Please contact us at service@elitescreens.com.tw or call +886-(02)2747-8979 America: Asia: Elite Screens Inc Elite Screens China Ltd. 16410 Manning Way Longxi Duimianling Industry Zone Longcheng Cerritos, CA 90703 USA Longgang District, ShenZhen GuangDong, China Tel: 877-511-1211 Tel: +86-(0)755-8461-7989...
