Electric Screen
Elite Home 2 series
Ver.1.6
Users Guide
www.elitescreens.com
/ eliteinfo@elitescreens.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Elite Screens Elite Home 2 Series
Summary of Contents for Elite Screens Elite Home 2 Series

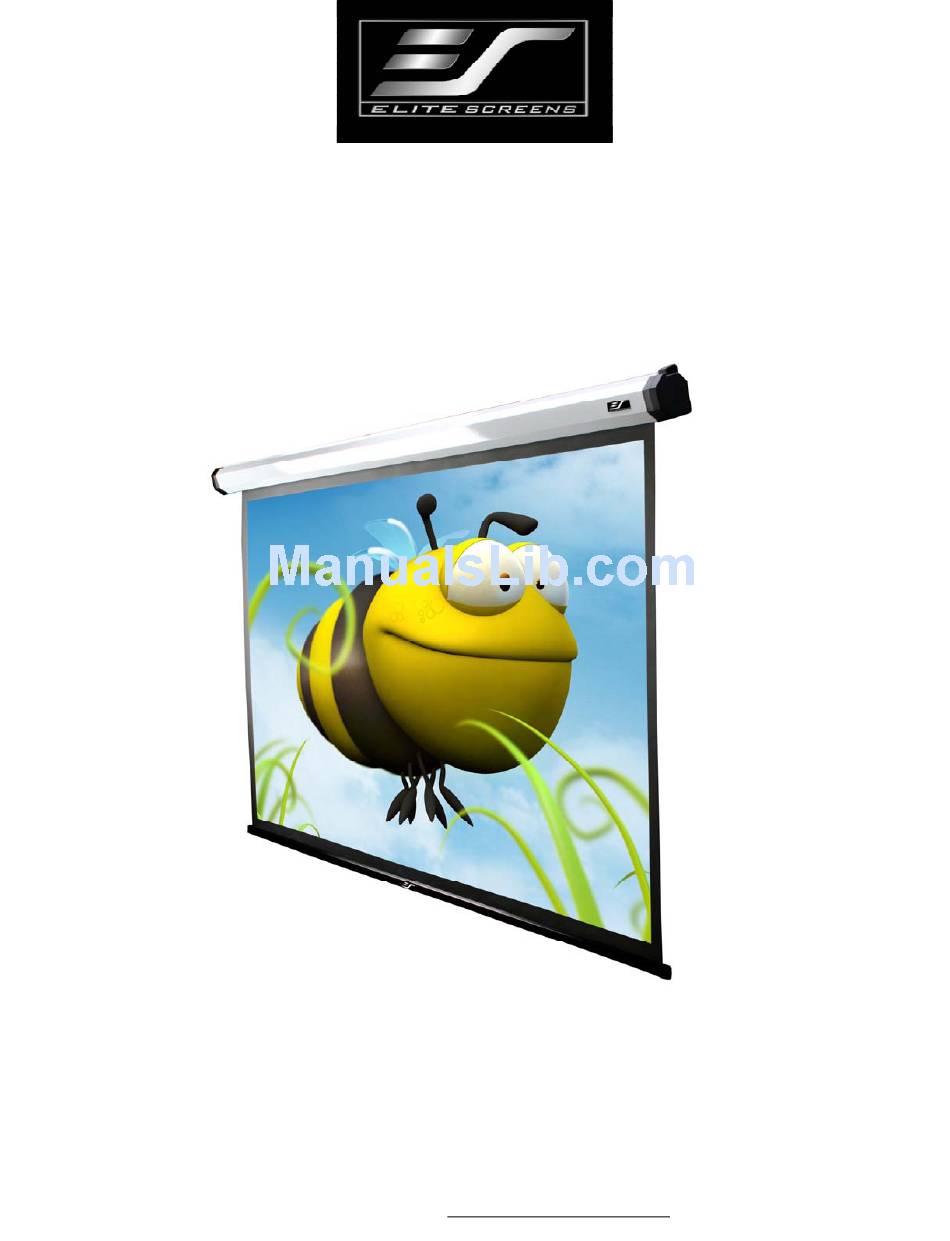

- Page 1 Electric Screen Elite Home 2 series Ver.1.6 Users Guide www.elitescreens.com / eliteinfo@elitescreens.com...
- Page 2 Accessories for Home 2 series ③ Wall box ① IR ② RF Green - 0 V +12V Eye receiver ④12V trigger ⑤ ⑥ Battery Please always point to the eye receiver when using the IR remote ⑦ Bubble level www.elitescreens.com / eliteinfo@elitescreens.com...
- Page 3 Important Safety and Warning Precautions 1. Be sure to read this manual before use and follow the procedures specified: Please retain this manual for future reference. To avoid any damage, do not use any accessories not recommended by the manufacturer. Handle the device carefully during transportation to avoid impact. Do not put the device on uneven or inclined surfaces.
- Page 4 Warning Individual modifications to this product are prohibited and will void the warranty. Please contact our Service Department for any questions. NOTE: Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
-
Page 5: Bubble Level
1. 5/12V Trigger: The built-in 5 12V trigger 3-prong power cable input for your new CineTension2 allows your screen to synchronize its drop and rise with the projector's power cycle. The screen drops when the projector powers up and retracts when the projector powers down. The 5/12 volt adaptor connects to your projectors trigger output via a separate cable that may or may not be provided by the projector manufacture. - Page 6 Please read this guide prior to installation. ● Make sure the current rating is equal to that of the appliance rating when an extension cord is used. ● Do not use any accessories not provided by the manufacturer with this screen. We will not be responsible for any risks of fire, electric shock, or injuries resulting from the misuse of this product with accessories not designed for use with this product.
- Page 7 2. Slide the Extruded Hanging Brackets (D) thru the rail located below the slide channel until it meets with the top part of the bolts (B) and then slightly tighten the lug-nuts located on the top and bottom of the bolt with a wrench to secure the extruded hanging brackets.
- Page 8 The IR receiver will be connected from the screen Power Cord Approx. 6 ft. length IR “eye” sensor 11.65 mm. in width Although the IR remote requires a direct line of sight with the IR sensor to function, the screen’s case can be hidden from sight and operated using the RF remote.
- Page 9 1. Q: Why does my screen no longer function? A: There are a few possible things you could check: A.) Make sure your wall plug has power and that the screen is properly plugged in. B.) Please check the fuse to y our screen. (Call Tech support for location of fuse) C.) If screen works well with the line switch but not with the remote control, make sure the remote control has good batteries in it.
- Page 10 ● Immediately advise Elite Screens of all damages or problems. Do not return merchandise to Elite Screens. File your claim with the carrier enclosing copies of the bill of lading (signed by the driver) and inspection report as support. Keep all packing materials and boxes with the damaged product.
- Page 11 Two ways to register your warranty with Elite Screens Inc. A. On Line (F aster and Easier) www.elitescreens.com/register.htm B. Fill out & Fax to (562)483-8498, Attn: Customer Service Dept. *Your Name: Address: _ ____ City/State/Zip: ____ _ ____ _ ____...
- Page 12 www.elitescreens.com / eliteinfo@elitescreens.com...
