Yard Master Plus Series
Indoor/Outdoor Portable Projection Screen
Thank you for choosing the Yard Master Plus portable projection screen! Please read through this user
guide before utilizing the screen. Correct usage and maintenance will ensure a long product life
Care & Use Instructions
◆ Elite highly recommends two people to assemble the Yard Master Plus screen.
◆Dust, dirt and scratches on the projection surface will affect the picture quality, please take note of the
points below to prevent that from occurring:
1. Do not touch the projection surface with your hands
2. Do not write or draw on the projection surface
3. Do not use fingers or sharp objects to point on the projection surface; this will damage the screen
material.
4. Use a soft-damp cloth to clean the projection surface; do not use chemical cleaning agents or
alcohol.
5. Use clean water when dampening the cleaning cloth and do not rub against the material to clean it.
◆After using the screen, disassemble it and store it in the carrying bag provided.
◆To avoid damage and injury, the screen should only be operated by adults.
Product Description
Design: The aluminum frame is designed to be light weight and easily operated making it easy to carry,
assemble and disassemble.
Screen Fabric: The screen fabric is attached to the rectangular frame and held in place by several press
stubs, which ensure an evenly stretched and flat surface. The CineWhite® (front projection) screen
material is durable and can be folded many times without causing damage or distortion to the surface.
A. Folding frame x1
Rev. 041818BR
User's Guide

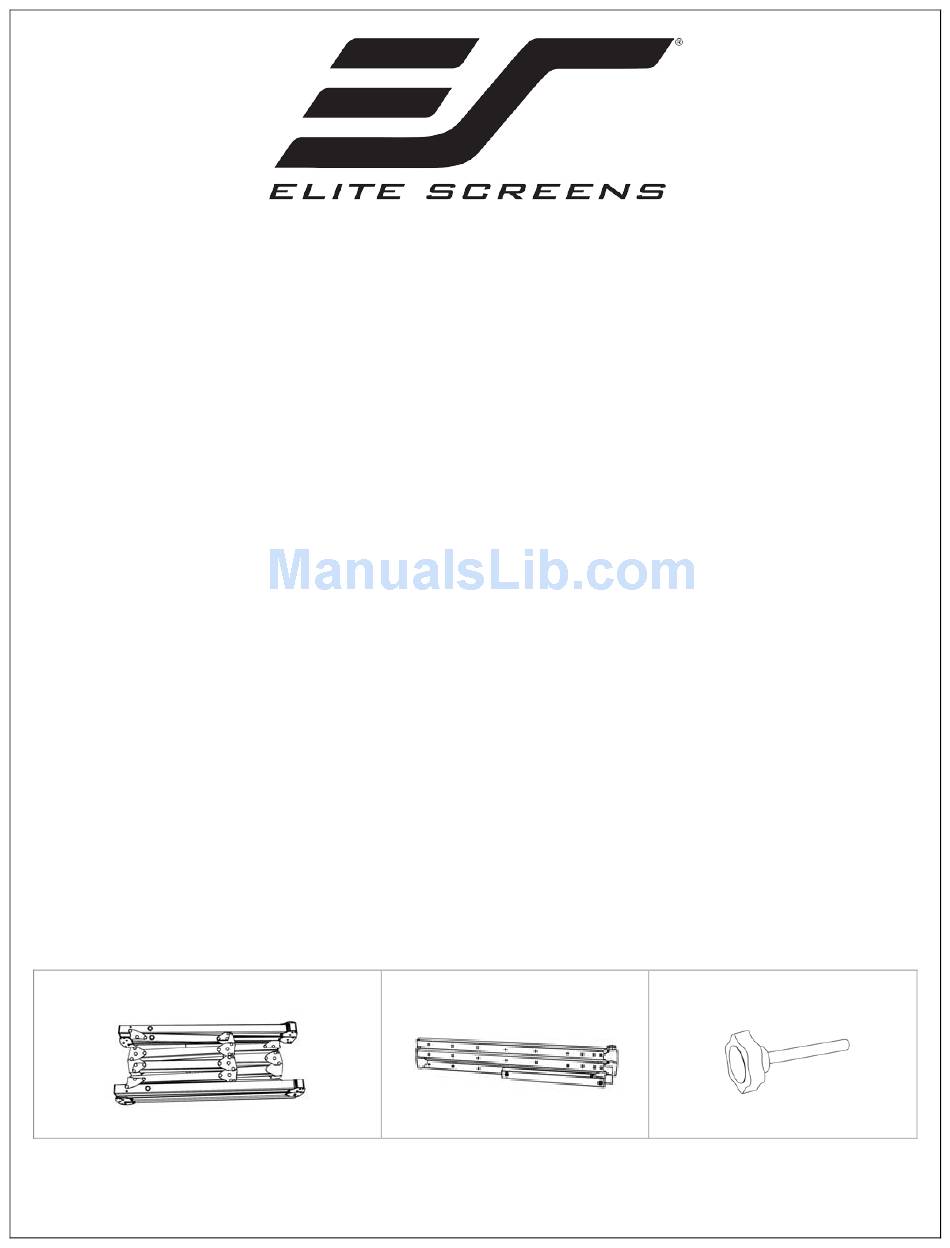

Parts Diagram
B. Left and right folding legs x2
1
C. Knob Screw (Refer to Chart)
www.elitescreens.com
Advertisement
Related Manuals for Elite Screens 100 series
Summary of Contents for Elite Screens 100 series
- Page 1 Yard Master Plus Series Indoor/Outdoor Portable Projection Screen User’s Guide Thank you for choosing the Yard Master Plus portable projection screen! Please read through this user guide before utilizing the screen. Correct usage and maintenance will ensure a long product life Care &...
- Page 2 D. Projection screen material x1 E. Screen material bag x1 F. Carrying Bag x1 G. Rope x2 H. Eyebolt x2 I. Stake x4 Note: The parts list above is subject to change without notice. Models Knob Screw Support Leg Max Height 8 pcs 95.5 inches 100”...
-
Page 3: Frame Assembly
Frame Assembly 1. Take the folding frame (A) out of the carrying bag (F) and place it on a flat surface. Fully unfold the longer sections first, as shown below 2. Next, unfold the frame until the latch on the hinge “clicks” into place. Repeat the procedure for the shorter sections, as shown below. - Page 4 2. Once the screen material is fully extended, secure the material by snapping the buttons onto the frame studs. Fasten the buttons in the following order as shown on Fig.1. Note: Snap the buttons on each corner first, then work your way out to the center on each side. Fig.1 Leg Attachment for 100”/ 120”...
- Page 5 3. After making sure the legs are secure to the frame, using two people, lift the screen up in a vertical position. While the screen is in a vertical position, fold the front feet of the legs out. 4. The assembly is now complete and the projection screen will be stable on a flat surface. Leg Attachment for 135”...
- Page 6 Be sure to place folding frame, legs, and smaller parts into the carrying bag first and place the material on top to keep material from creasing or tearing. For more information, technical support or your local Elite Screens contact, please visit www.elitescreens.com...
