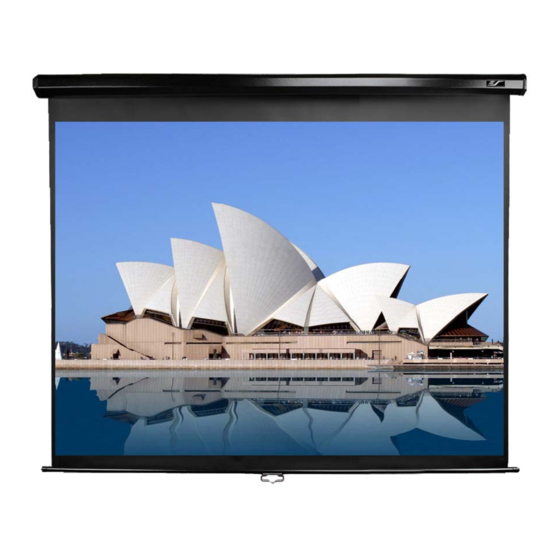

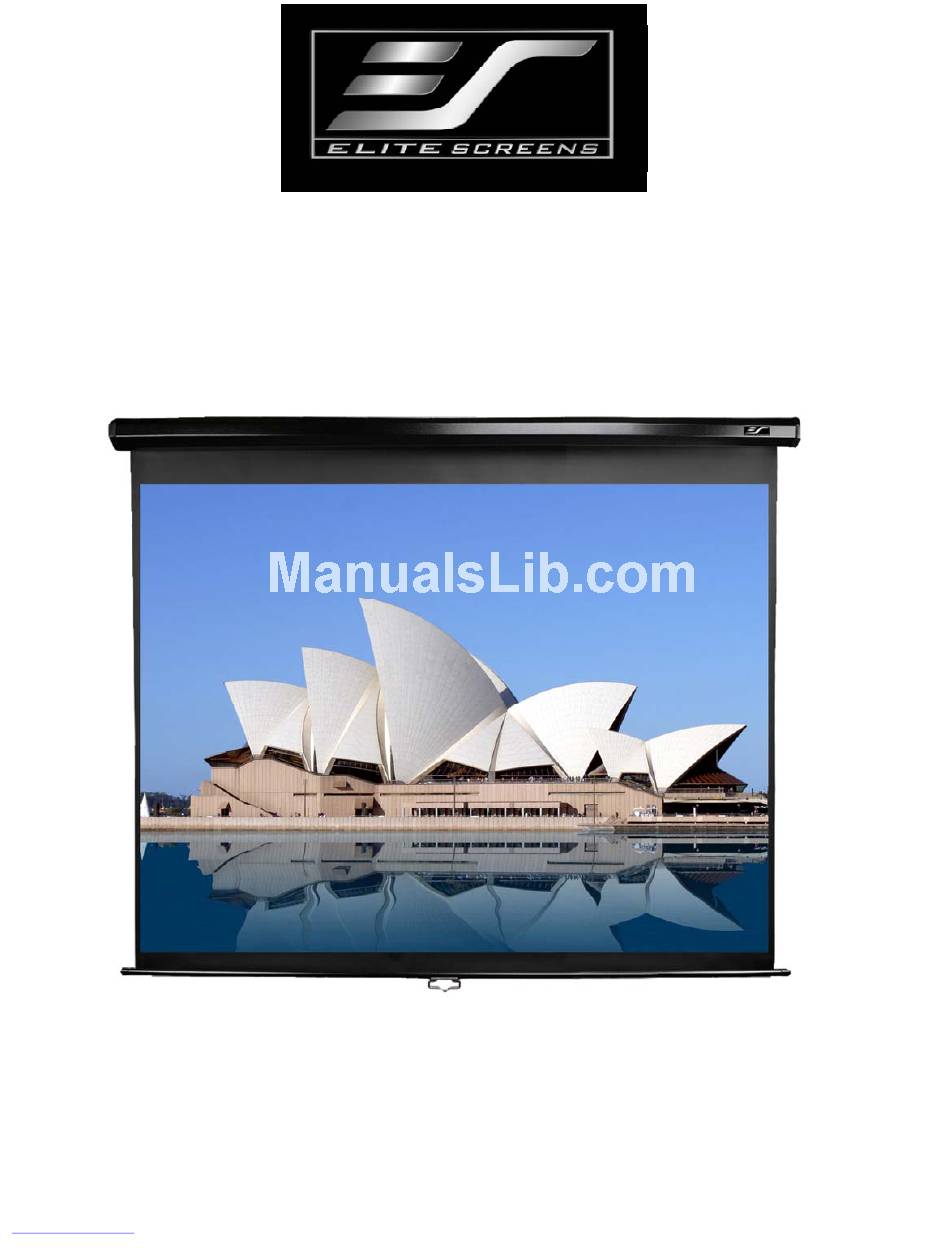

- Page 1 Manual Pull-Down Projection Screen Elite Manual Series USER’S GUIDE Ver. 1.2 www.elitescreens.com info@elitescreens.com...
-
Page 2: Pre-Installation
Pre-installation 1. Carefully unpack the screen. 2. Always handle the screen in a leveled position on a clean surface. INSTALLATION Flush Wall Mounting 1. Mark the location of where the screen is to be installed for the pre-drilled hole. 2. After marking the area and drilling the hole, insert the proper screw into the drilled hole and leave about 1/8”... -
Page 3: Screen Operation
SCREEN OPERATION Note: Always pull the screen down or let it up in a 90-degree vertical angle. Do not allow the screen to touch the screen case when the screen goes up or comes down to avoid damaging the screen material. 1. -
Page 4: Maintenance
MAINTENANCE Clean matte white screen material with a soft cloth and mild soap with water. When not in use, retract screen in its housing to keep the screen material surface clean. NOTE: Regardless of mounting method, the screen should be securely supported so that vibration or even abusive pulling on the viewing surface will not cause the case to work loose or fall. - Page 5 Unit: Inches Distance Weight Bottom Screen from Screen Diag. Case Screen View View Overall Edge Material to screen Models & Aspect Length Width Width Height Height Length Distance Weight Bar Height Width material Ratio (A1) (A2) (B1) (A3) (B4) Height (B3) (B5) to the wall (C1)
-
Page 6: Warranty Policy
• A RMA (Return Merchandise Authorization) number must be issued in order to process a replacement or to authorize a return for warranty repair. Elite Screens will, at its sole option, replace or repair the defective unit with a replacement *(see exceptions below) after the defective unit is received. Once the product is received, Elite Screens will send out a replacement *unit to the customer by ground service (subject to inventory availability). - Page 7 ShenZhen GuangDong, China info.india@elitescreens.com Tel: +86-(0)755-8461-7989 Japan Contact: Fax: +86-(0)755-8461-7669 info.japan@elitescreens.com info@elitescreens.com.cn www.elitescreens.com.cn Taiwan: Elite Screens Taiwan Co. Ltd. No.38, Alley 22, Lane 66, Sec. 5, Nanjing E. Rd., Songshan District, Taipei City 105, Taiwan Tel: +886-(02)2747-8979 Fax: +886-(02)2747-8978 info@elitescreens.com.tw www.elitscreens.com.tw www.elitescreens.com...
