Manual Pull-Down Screen
Elite Manual Series
USER'S GUIDE
MATTE WHITE
Rev. 1.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Elite Manual Series and is the answer not in the manual?

Questions and answers

Related Manuals for Elite Screens Elite Manual Series

Summary of Contents for Elite Screens Elite Manual Series

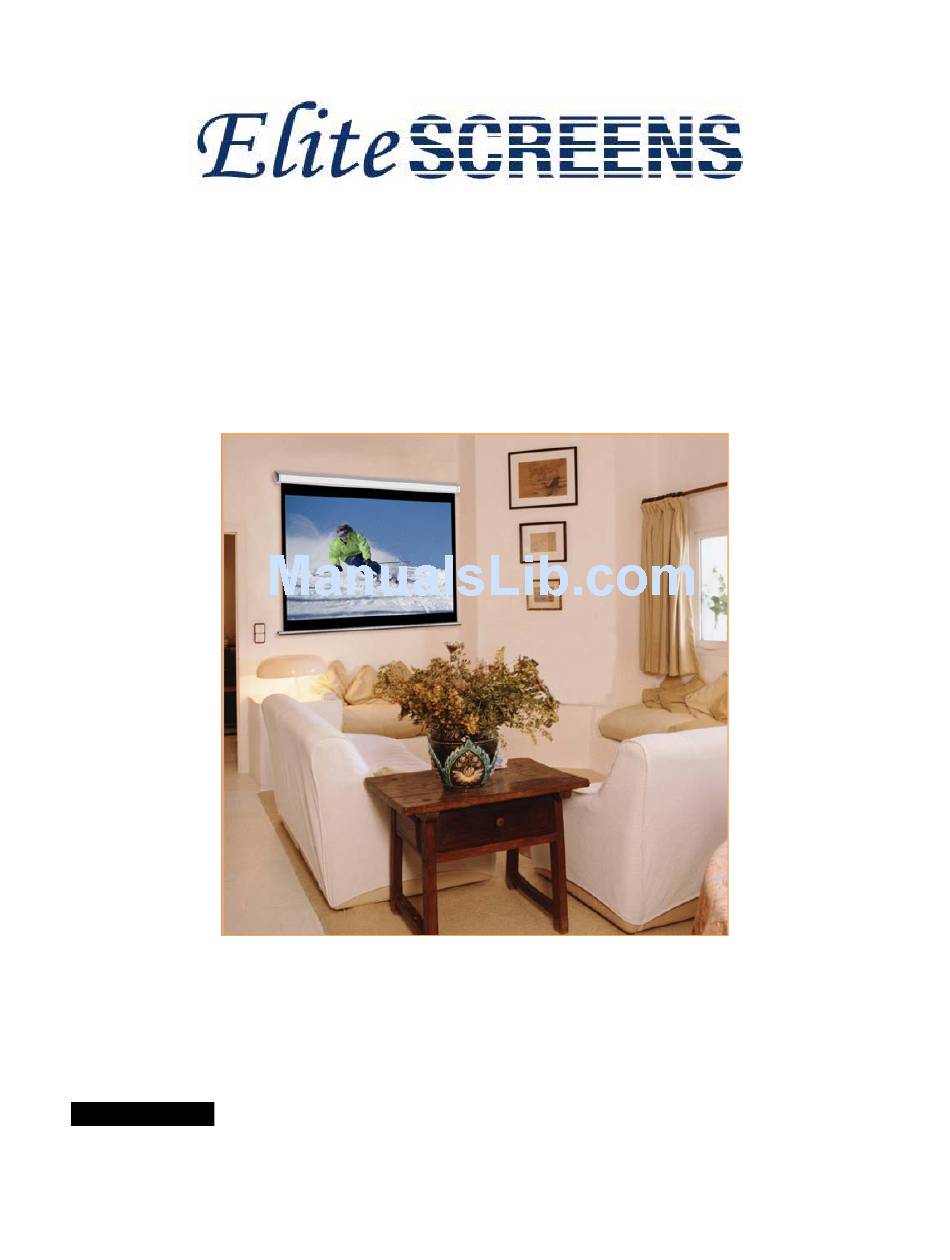

  • Page 1 Manual Pull-Down Screen Elite Manual Series USER’S GUIDE MATTE WHITE Rev. 1.3...

  • Page 2: Pre-Installation

    Pre-installation 1. Carefully unpack the screen 2. Always handle the screen on a clean and level surface. : Vertical hooks suspend the screen from the L-bracket wall mounts” They are secured in place with a nut. (c) : Wall-screw secures the L- bracket to either drywall or wall-studs. : Nut secures the end of the vertical hook (a) and holds it into place.

  • Page 3: Installation

    Installation Flush Wall Mounting 1. Using a tape measure, mark the keyholes that are located at the back of the screen’s case end cap. 2. After marking the area and predrilled hole, insert the screw and leave the screw’s head out about 4mm (1/8”) from the wall to mount the screen on. (Fig. 1) Fig.
  • Page 4 Optional “L” Bracket diagram 6-3/4” Length 1” Width 6 3/4” Height Find the studs on your wall or use drywall anchors to install L brackets to the desired location. Top of “L” bracket from top view “L” Bracket accessories Wood/Dry Wall installation: Use “B” wood screws provided for installation on wood studs on wall.

  • Page 5: Screen Operation

    SCREEN OPERATION Note: Always pull the screen down or let it up in either a steep incline or a 90-degree vertical angle. Do not allow the screen to touch the screen case when the screen goes up or comes down to avoid damaging the screen material.

  • Page 6: Maintenance

    Elite Screens will either replace or repair the defective unit with a brand new replacement *(see exceptions below) after the defective unit is received and/or confirmed defective. Once the product is received, Elite Screens will send out a new *unit to the customer by ground service (subject to inventory availability).
  • Page 7 WO WAY TO REGISTER YOUR WARRANTY WITH LITE CREENS A. On Line (Faster and Easier) www.elitescreens.com/register.html B. Fill out & Fax to (562) 483-8498, Attn: Customer Service Dept. *Your Name: _______________________________________________________ Address: ____________________________________________________________ City/State/Zip ________________________________________________________ *Email Address: ______________________________________________________ *Phone: _____________________________________________________________ *Screen Model: _______________________________________________________ *Serial Number: _______________________________________________________ *Date of Purchase: _____________________________________________________...
