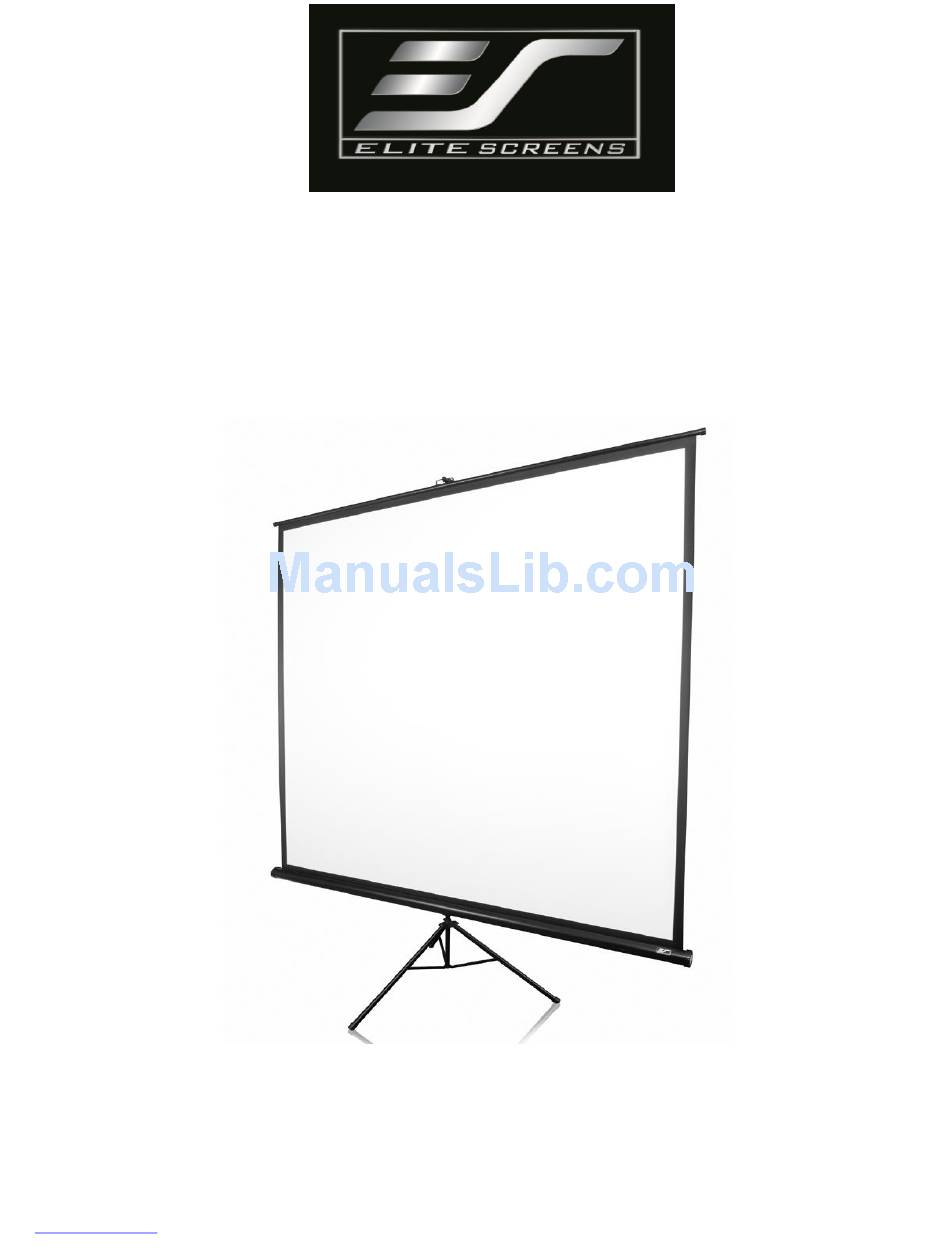

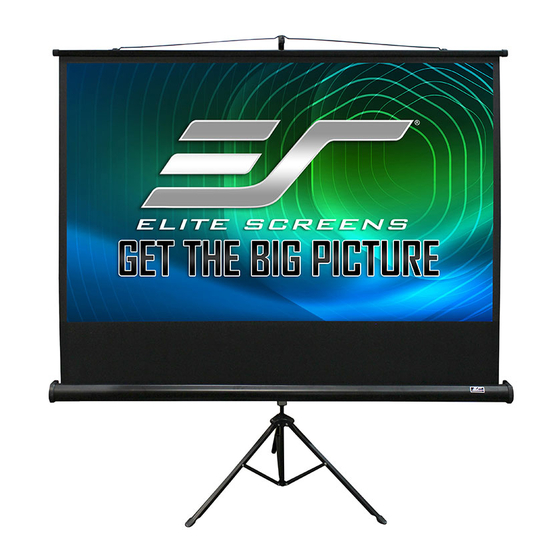

- Page 1 Tripod Portable Projection Screen Elite Tripod Series USER’S GUIDE Rev. 060809-JA www.elitescreens.com info@elitescreens.com...
-
Page 2: Using The Screen
Tripod Screen Parts Identification Support beam Top Hook, Keystone Eliminator & Screen Handle Vertical Extension Bar Vertical locking sleeve ring Screen Material Carrying handle & Screen height adjustment lock/release tab End cap Tripod junction Screen case Tripod Support Legs Using the Screen A. - Page 3 Fig.1 Fig. 2 B. Preparing the tripod screen for projection: Follow the steps below and Fig. 3. 1. Pull the screen handle up vertically and hook the screen handle on the Top Hook. *Note: Use the Keystone Eliminator to prevent “Keystone Effect” from occurring. Keystone Effect is caused when a projector presents its image at a downward angle causing a trapezoid-shaped image to appear on the screen.
- Page 4 C. Disassembling the screen: Follow the steps below and Fig. 4. 1. Unlock the Adjustment Handle by pulling the locking tab to the left and slowly slide the handle all the way down to bring down the position of the screen’s case. 2.
- Page 5 Tripod Series Dimension Table Unit: inches Top of Top of Screen Screen Case Case View Screen Nominal Screen at screen at case at case at length width Model Size Size H x Diagonal Highest lowest highest lowest closed closed H x W W (A) size (D) Level (B1)
-
Page 6: Limited Warranty Policy
: If a return is needed, Elite Screens will issue you a Return Merchandise Authorization (“RMA”) Number. This number is valid for (45) days from the date of issue, and is required to process any returns. A returned item sent to Elite Screens without a visible or valid RMA Number is subject to refusal by Elite Screens.
