Circuit Board Replacement Instructions

for Evanesce/Evanesce B/Evanesce Tab-Tension B Series & ZPM-RT Kit
For technical support or further assistance, call 877-511-1211 x604
ATTENTION: Please make sure the version number and the Voltage of the circuit board matches the
version number and the Voltage of the screen. Elite Screens does not recommend making unnecessary
adjustments to the screen, as improper adjustments will damage the unit and void your warranty.

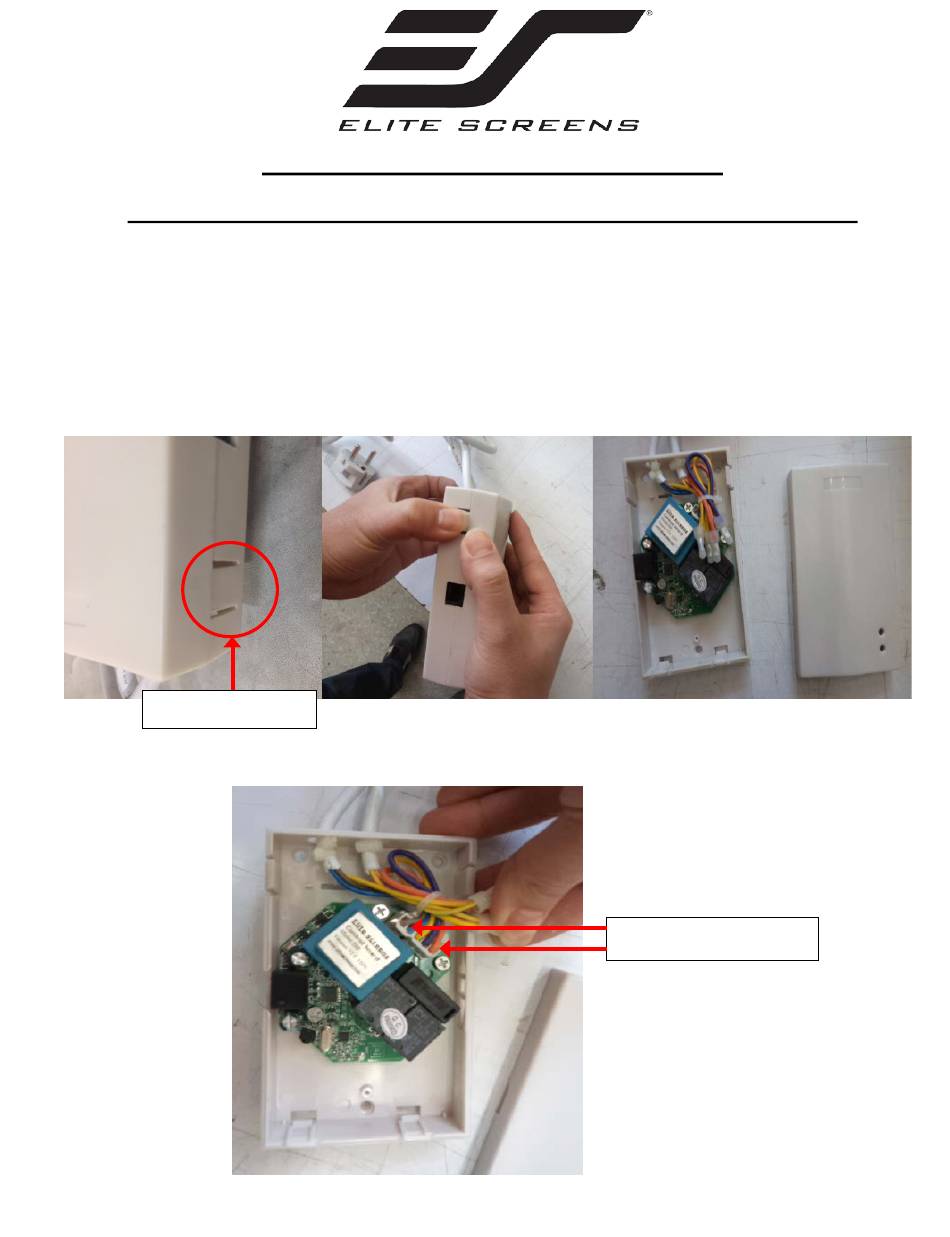

1. Open the control box and remove the cover. Press in the release tabs on both sides and pull to
remove.
Release tabs.
2. Press in the clips on the white terminals, then carefully pull out to remove the two terminals.
Two white terminals.
Updated 2/28/2017
1
www.elitescreens.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Evanesce Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Elite Screens Evanesce Series

  • Page 1 ATTENTION: Please make sure the version number and the Voltage of the circuit board matches the version number and the Voltage of the screen. Elite Screens does not recommend making unnecessary adjustments to the screen, as improper adjustments will damage the unit and void your warranty.
  • Page 2 3. Remove the three screws that secure the circuit board with a Phillips head screwdriver. Set the screws aside to later secure the new circuit board. Three screws. Finished disassembly. 4. Utilize the saved screws to secure the new circuit board in same location of the previous. Three screw locations.
  • Page 3 6. Replace circuit board cover. Be sure to listen for a "click" to insure the cover is secure. Finished assembly. For a local Elite Screens contact or Technical Support, please visit www.elitescreens.com Updated 2/28/2017 www.elitescreens.com...
