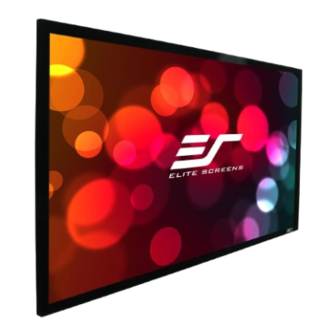

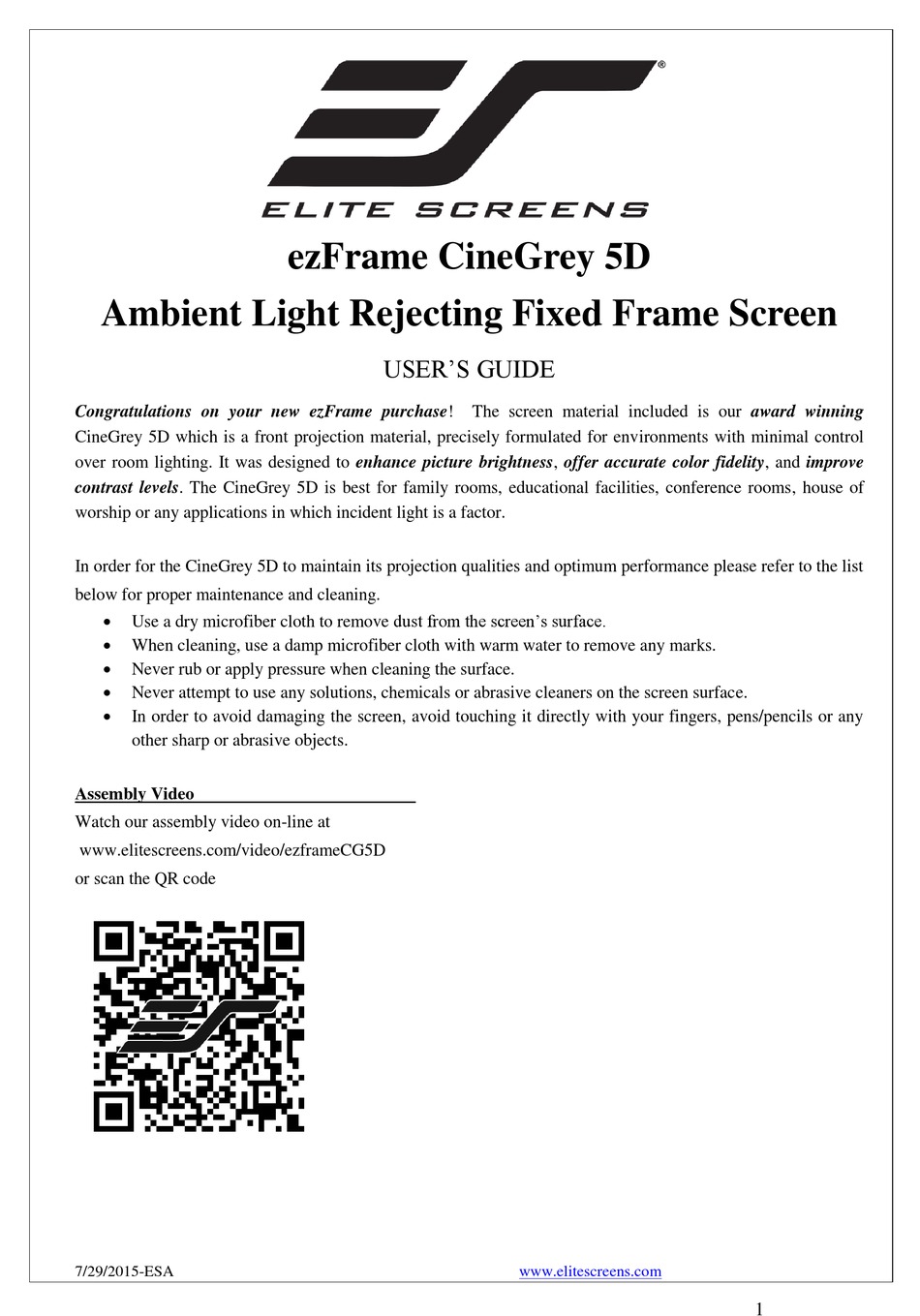

Ambient Light Rejecting Fixed Frame Screen
Congratulations on your new ezFrame purchase!
CineGrey 5D which is a front projection material, precisely formulated for environments with minimal control
over room lighting. It was designed to enhance picture brightness, offer accurate color fidelity, and improve
contrast levels. The CineGrey 5D is best for family rooms, educational facilities, conference rooms, house of
worship or any applications in which incident light is a factor.
In order for the CineGrey 5D to maintain its projection qualities and optimum performance please refer to the list
below for proper maintenance and cleaning.
Use a dry microfiber cloth to remove dust from the screen's surface.
When cleaning, use a damp microfiber cloth with warm water to remove any marks.
Never rub or apply pressure when cleaning the surface.
Never attempt to use any solutions, chemicals or abrasive cleaners on the screen surface.
In order to avoid damaging the screen, avoid touching it directly with your fingers, pens/pencils or any
other sharp or abrasive objects.
Assembly Video
Watch our assembly video on-line at
www.elitescreens.com/video/ezframeCG5D
or scan the QR code
7/29/2015-ESA
ezFrame CineGrey 5D
USER'S GUIDE
The screen material included is our award winning
www.elitescreens.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Elite Screens ezFrame R180WH1
Summary of Contents for Elite Screens ezFrame R180WH1
- Page 1 ezFrame CineGrey 5D Ambient Light Rejecting Fixed Frame Screen USER’S GUIDE Congratulations on your new ezFrame purchase! The screen material included is our award winning CineGrey 5D which is a front projection material, precisely formulated for environments with minimal control over room lighting.
- Page 2 Frame Parts List A. Vertical Frame x 2pcs B. ½ Horizontal Frame x2 pcs C. ½ Horizontal Frame x 2 pcs Hardware Parts List 84” 92” 100” 110” 120” 135” 150” 180” 200” Item Parts List Screen Screen Screen Screen Screen Screen Screen...
- Page 3 Frame Assembly Step 1. Place a soft-clean cloth on the ground of the area where the screen will be assembled. Step 2. Position the pieces of the frame on the soft-clean cloth in the arrangement shown below. Step 3. Insert the center joint connectors into one-half of the horizontal frame and secure with the M4x6 screws (2 for both top and bottom).
- Page 4 Step 5. Connect the elbow joints to top and bottom sections of the vertical frame. Once inserted, connect the vertical sections to the horizontal frame sections. Make sure all the holes are in alignment and the frames pieces are flush (no gaps). They should form perfect right angles. Step 6.
- Page 5 Step 9. Insert the Center Support Bar into the upper top groove on the back of the frame (not the one where the spring inserts) with the bottom end near the approximate center point of the frame. Rotate it in at an angle so that both ends of the bar are in alignment with the groove.
- Page 6 Projector Table Top: Make sure the projector (light in) is angled (ϴ1) to reflect (ϴ2) at the mirror-opposite angle (light out) to align with the viewer’s eye level. Images are not up to scale and are for illustrations purposes only. Note: Improper installation will result in light loss and produce a dark image.
- Page 7 Step 11. Position the fixed frame screen onto the top wall brackets as shown below and push down at the center of the top of the frame to secure. Step 12.With the frame slightly tilted outward; connect the bottom brackets onto the bottom groove of the frame. Slowly return the screen to a normal upright position.
- Page 8 4. When not in use, cover over the screen with a furniture sheet to protect it from dirt, grime, paint or any other impurities. 5. Spare Parts should be placed out of reach of small children in accordance with household safety guidelines. For Technical Support or an Elite Screens contact in your area, visit www.elitescreens.com Online User Guide or Download: www.elitescreens.com/UG...
