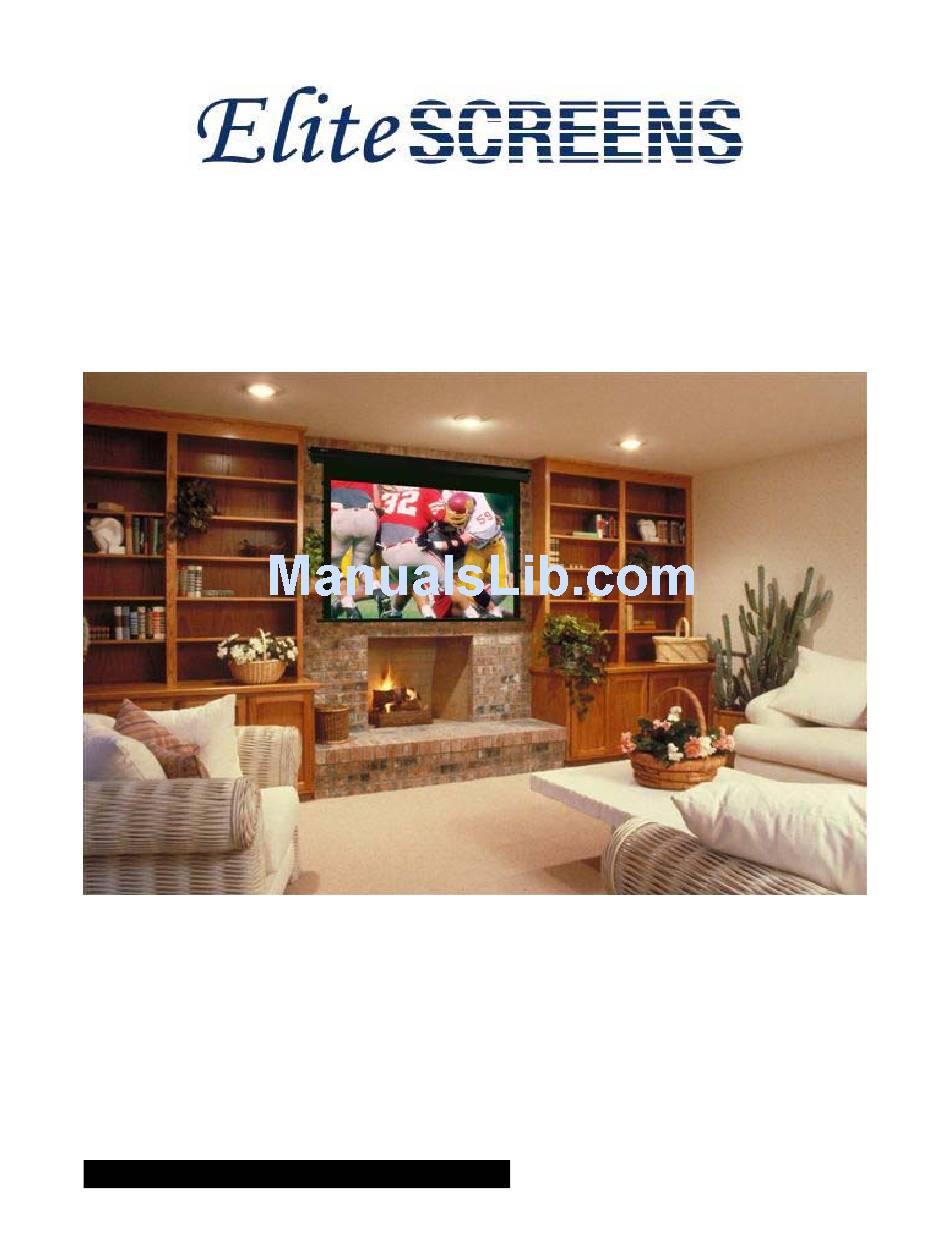

- Page 1 Tension Electric Screen Elite CineTension Series USER’S GUIDE Matte White/High Contrast Grey/High Gain Rev 1.3...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Carefully unpack the screen. 2. Position the power cord so it will not be tripped over, pulled, or near a hot area or surface. 3. To avoid an electric shock, do not attempt to disassemble this appliance yourself. 4. -
Page 3: Installation
INSTALLATION 1. Select the location for your screen projector and access to a good power source. For best results follow your users manual of your projectors recommended distance settings. 2. For the best support of your screen, it is ideal to secure the screen (see example page) into the studs of your house’s internal framework. - Page 4 Examples Of Installation & End Cap Dimensions Page 1. Start by locating the studs on your wall. Make sure to measure the keyholes located on the back end of the screens end caps. 2. Mark the area where screw hole will be inserted for the L”...
- Page 5 Remote control and 3 & 4 prong wire information This is the IR This is the RF Control box (Infra-Red) (Radio The 3 prong wire will come from remote with a Frequency) the outlet and the 4 prong cable range of 15 Ft. remote with a goes directly to the screen.
-
Page 6: Operation
The screen has a standard 110-volt power outlet. Note: Always press the “stop” button first, then press “up” or “down” when raising or lowering the screen. Elite Screens Technician for more detail to avoid damaging the screen and voiding your warrant Rev 1.3... - Page 7 Vertical Limit Switch Adjustment (Attention: This adjustment is not required. Always contact an Elite Screen Technician for assistance to avoid damaging the screen and voiding your warranty. *Important Note: It is strongly advised that the user not ever adjust the Vertical Limit Switch.
-
Page 8: Troubleshooting
TROUBLESHOOTING If the electric screen does not move, please check the following: 1. Check the power supply and fuse first. The screen will not move without power. 2. Make sure the power cord is plugged to the power outlet. 3. Check all cable connections to see if any may be disconnected. 4. - Page 9 Immediately advise Elite Screens of all damages or problems. Do not return merchandise to Elite Screens. File your claim with the carrier, enclosing copies of the bill of lading (signed by the driver) and inspection report as support. Keep all packing materials and boxes with the damaged product.
- Page 10 REGISTER YOUR ELITE PRODUCT WO WAYS TO REGISTER YOUR WARRANTY WITH LITE CREENS A. On Line (Faster and Easier) www.elitescreens.com /register.html B. Fill out & Fax to (562) 483-8498, Attn: Customer Service Dept. *Your Name: _______________________________________________________ Address: ____________________________________________________________ City/State/Zip ________________________________________________________ *e Mail Address: ______________________________________________________ *Phone: _____________________________________________________________ *Screen Model: _______________________________________________________...
