Summary of Contents for Elite Screens Electric110H

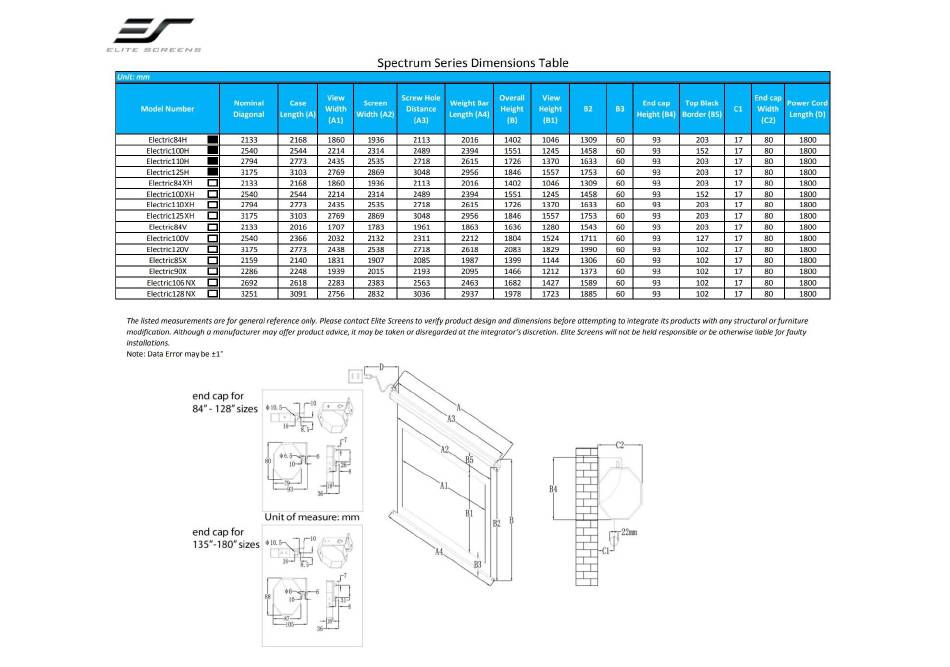

- Page 2 Caution: The screen’s Black Top Drop is already set to its maximum drop distance. There is NO extra Black Top Drop in the roller. Please be aware of this as it will void your warranty with Elite Screens. Unapproved changes or modifications (except for cutting the power cord for hardwire installations) to this unit are prohibited and will void your warranty.
-
Page 3: Installation Warning
Elite Screens is not liable for any faulty installations. Individual modifications to this product are prohibited and will void the warranty with the manufacturer. -
Page 4: Installation Instructions
Bubble Leveler Installation Instructions Please consult a professional Installer. Elite Screens is not liable for faulty installations. Flush Mount to the Wall 1. Mark the location of where the screen is to be installed, drill your holes, and insert the M10 Anchors (c). - Page 5 3. Attach the screen to the Mounting Bracket by inserting the top of the case to the first fix plate, and securing the back of the case to the second Fix Plate. Make sure the case slots are securely attached to the Mounting Bracket. Mounting Bracket Mounting Bracket Fix Plate 1...
- Page 6 M10 Anchor Ceiling Mounting Bracket Fix Plate 1 M4x50 Screw Mounting Bracket Fix Plate 2 3. Attach the screen to the Mounting Bracket by inserting the top of the case to the first Fix Plate, and securing the back of the case to the second Fix Plate. Make sure the case slots are securely attached to the Hanging Bracket.
- Page 7 3. Insert chains (not included) through the loop holes of the Suspended Ceiling Bracket Connector (d). Suspended Ceiling Bracket Connector Loop Holes Built in 3 Way Control Switch 1. The PowerMax Series comes with a 3 Way Control Switch attached to the Power Cord, which is 3.5 meters in length.
- Page 8 Release Tab Pull Bottom of case first away from wall/ceiling. Rev.123011-AS www.elitescreens.com info@elitescreens.com...
- Page 9 Attempting to increase the drop will damage the motor and VOID your warranty with Elite Screens. Do not use these instructions to try and get more out of your standard black masking drop. Please contact Elite Screens before making any adjustments.
- Page 10 3. Adjusting Retraction Position (shown in Fig. 3 – Fig. 7) If the screen will not retract completely (as shown in Fig. 3), use the following steps. Fig. 3 Use remote to retract screen as much as possible. Fig. 4 Use your allen-wrench to turn the UP switch counter-clockwise.
- Page 11 One full turn will retract your screen by 1”. In order to see adjustment, deploy and retract the screen. (Warning: If you continue to rotate the switch once the weight bar fits flush with the casing, the screen will attempt to retract further, causing damage to the unit.
- Page 12 Fig. 11 Note: As a rule, Elite Screens does not recommend making unnecessary adjustments to the screen, as improper adjustments will damage the unit. Please contact Technical Support for assistance @ (877) 511-1211...
- Page 13 Elite Screens – Limit Switch Adjustment – 2019 Version How to get a bigger top drop? turn the wrench counter clock-wise How to get a smaller top drop? turn the wrench clock-wise...
- Page 14 Elite Screens – Limit Switch Adjustment – 2019 Version How to adjust the retractation of the screen (only if the screen does not fully retract)? turn the wrench counter clock-wise How to adjust the rise for a further retractation of the screen?
