Download Print this page

Classic Exhibits SUPERNOVA VK-4048 Setup Instructions

10' x 20' inline

Advertisement

Quick Links

© 2024

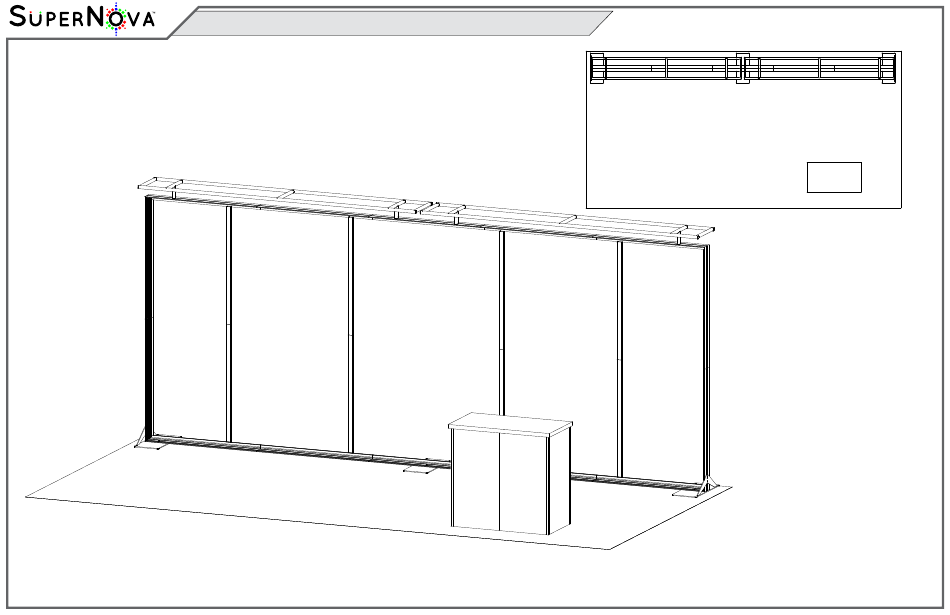

VK-4048 - 10' x 20' Inline
10'
Plan View
20'
SETUP INSTRUCTIONS
If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the SUPERNOVA VK-4048 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Classic Exhibits SUPERNOVA VK-4048

  • Page 1 © 2024 VK-4048 - 10’ x 20’ Inline 10’ Plan View 20’ SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
  • Page 2 © 2024 Plan View = 1 sq foot...
  • Page 3: General Setup Instructions

    © 2024 General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly.
  • Page 4 © 2024 CEI110 Frame Assembly Disassembly Slide both connectors across seam of extrusions. Tighten all knobs. Straight Connection 1) Loosen all knobs. Straight Connector When assembling frame, first attach all straight 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
  • Page 5 © 2024 LT Panel Assembly LT Panel Assembly While pushed in, pull panel up to disassemble 1) With a vertical offset, place LT-Panels side-by-side; slide vertically offset panel down to lock panels together and in place. 2) Corner Connectors (90°, T-Connector, Straight Connector) connect just as panels connect together.
  • Page 6 © 2024 SEG Installation Graphic Removal Corner A Corner B Corner D Corner C Step 1 Step 2 Step 3 It is important to first insert To remove the graphic from Insert corner A. Turn edge of Repeat Step 1 for opposite Once all corners are inserted, graphic into each alternate the frame, locate the fabric...
  • Page 7 © 2024 Case Packing VK-4048 Backwall Top View of Each Level Setup Hardware Level 1 Level 2 (Bottom level) Case 1 of 6...
  • Page 8 © 2024 Case Packing VK-4048 Backwall Top View of Each Level Canopy Pieces Level 1 Level 2 Level 3 (Bottom level) Case 2 of 6...
  • Page 9 © 2024 Case Packing VK-4048 Backwall Top View of Each Level Canopy Pieces Level 1 Level 2 Level 3 (Bottom level) Case 3 of 6...
  • Page 10 © 2024 Case Packing VK-4048 Backwall Top View of Each Level Level 1 Level 2 (Bottom level) Case 4 of 6...
  • Page 11 © 2024 Case Packing VK-4048 Backwall Top View of Each Level 15 15 16 16 17 18 18 Graphics Graphics Level 1 Level 2 (Bottom level) Case 5 of 6...
  • Page 12 © 2024 Case Packing LTC-116 Counter Top View of Each Level Internal Shelf Flat Panels Flat Panels Flat Panels Counter Top Connectors Shelf Supports Level 1 (Bottom Level) Level 2 Level 3 Level 4 Level 5 Level 6 Case 6 of 6...
  • Page 13 © 2024 Backwall Assembly Item Qty. Description 48”h CEI110 Vertical Extrusion 48”h CEI110 Vertical Extrusion 48”h CEI110 Vertical Extrusion Assemble frame flat on ground. 48”h CEI110 Vertical Extrusion 46.40”w CEI110 Horizontal Extrusion 46.40”w CEI110 Horizontal Extrusion 46.40”w CEI110 Horizontal Extrusion When assembled 46.40”w CEI110 Horizontal Extrusion 46.40”w CEI110 Horizontal Extrusion...
  • Page 14 © 2024 Lightbox Wiring Steps: 1) Connect power cords to Supernova lights, as shown. Power Power Break Break Transformer Transformers Transformer Power Power Break Break Light to Light Attachment Light to Transformer Attachment Male Female Lights Power Transformer 144W / 6 Amp / 24V Maximum of 7 lights per chain / 12 lights per Transformer Step 2 of 4...
  • Page 15 © 2024 Canopy Assembly Steps: 1) Connect canopy pieces together as shown. 2) Apply pillow case graphic to assembled canopy Repeat steps for other canopy assembly. Using Your Setup Instructions The Aero Setup Instructions are created specifically for your configuration. The instructions include an exploded view of the frame which is sequentially labeled.
  • Page 16 © 2024 Backwall Attachments Steps: Refer to the SEG Installation general information page. 1) Apply SEG Graphic to front of lightbox assembly. 2) Apply SEG Blocker to back of lightbox assembly. 3) Attach Canopies to top of backwall. Canopy Mount Attachment detail.
  • Page 17 © 2024 LTC-116 Counter Assembly Item Description Steps: 19”w x 38”h Panel 1) Connect panels together in numerical order. See LT Panel 19”w x 38”h Panel Assembly instruction on reverse side. 38”h 90° Connector 2) Connect shelf supports to Velcro on interior of assembled 19”w x 38”h Panel panels then set shelf on top of supports.
