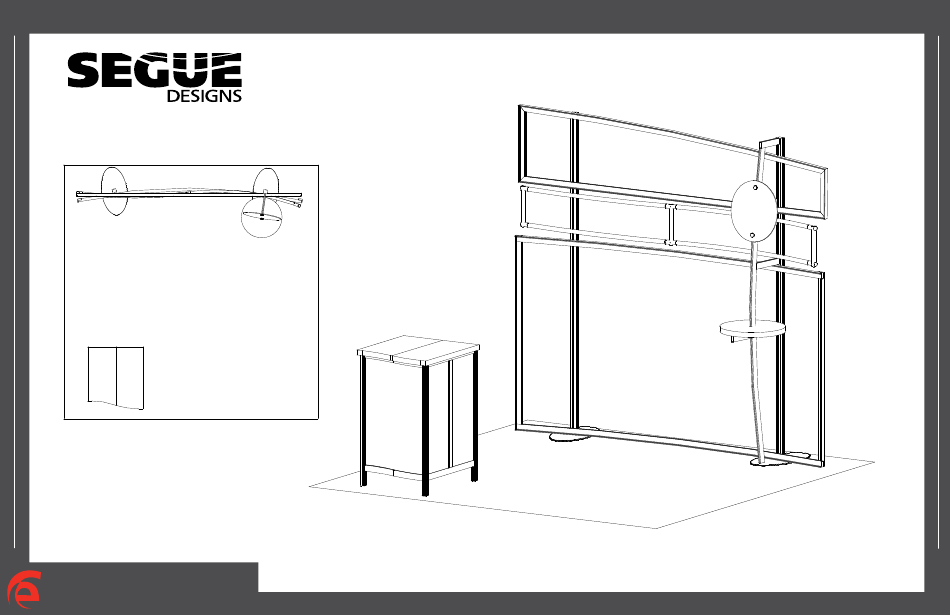

- Page 1 Step 1 Order #XXXXX - VK-1902 General Layout 10’ Plan View 10’ WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING © 2012 w w w . c l a s s i c e x h i b i t s . c o m Page 1 of 6...
- Page 2 Step 2 Order #XXXXX - VK-1902 General Information Using Your Setup Instructions The Visionary Designs Setup Instructions are created specifically for your Detail A configuration. They are laid out sequentially, including an exploded view of the entire display, and then a logical series of detailed steps to assemble the main structure and components.
- Page 3 Step 1 Order #XXXXX - VK-1902 Backwall Assembly Item Qty. Description Base Plate 47.875” Vertical Extrusion Screwcaps and connectors 47.875” Vertical Extrusion *** Round plate and horizontals #11 for graphic frame attachment Base Plate stay assembled when shipping** stay attached to verticals 47.875”...
- Page 4 Step 2 Order #XXXXX - VK-1902 Large Frame Assembly Graphic: To Ensure Proper Fit Item Qty. Description Steps: 12a/12b/12c 1/1/1 35.6954” TSP Horizontal Extrusion 1) Connect TSP pieces together [a to b to c] 13a/13b/13c 1/1/1 35.6954” TSP Horizontal Extrusion Corner A Corner B 2) Assemble SEG frame assemblies together.
- Page 5 Step 3 Order #XXXXX - VK-1902 Header Frame Assembly Graphic: To Ensure Proper Fit Item Qty. Description Steps: 16a/16b/16c 1/1/1 35.33” TSP Horizontal Extrusion 1) Connect TSP pieces together [a to b to c] 17a/17b/17c 1/1/1 35.6954” TSP Horizontal Extrusion Corner A Corner B 2) Assemble SEG frame assemblies together.
-
Page 6: Frame Assembly
Step 4 Order #XXXXX - VK-1902 Frame Assembly Using Your Setup Instructions The Aero Overhead Sign Setup Instructions are created specifically for your configuration. They include an exploded view of the frame which is sequentially numbered. We encourage you to study the instructions before attempting to assemble your exhibit. - Page 7 Step 5 Order #XXXXX - VK-1902 Frame Attachment Item Qty. Description 47.576” Curved Vertical Extrusion 8” Horizontal Extrusion 10.375” Horizontal Extrusion Steps: 1) Attach assembled large SEG frame to vertical extrusions using screwcaps provided. 2) Apply SEG graphic to frame. 3) Attach horizontal [10] to vertical [6] atop large frame.
- Page 8 Step 6 Order #XXXXX - VK-1902 Pedestal Assembly Item Qty. Description Steps: 40” Vertical Extrusion 1) Connect lower horizontal extrusions beween verticals approx at 4.5” from ground on stoppers as shown. 40” Vertical Extrusion w/ Hinges 2) Attach door where indicated. 40”...
- Page 9 Order #XXXXX - VK-1902 Case Packing Instruction - Case 1 of 3 Top View of each Case Counter Top and Shelf Support Lights Base Plates Setup Hardware Level 1 (Bottom) Level 2 Level 3 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING ©...
- Page 10 Order #XXXXX - VK-1902 Case Packing Instruction - Case 2 of 3 Top View of each Case Graphics Level 1 (Bottom) Level 2 Level 3 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING © 2012 w w w .
- Page 11 Order #XXXXX - VK-1902 Case Packing Instruction - Case 3 of 3 Top View of each Case Inserts Internal Shelf Supports Door 2-piece Counter Top Floor and Internal Shelf Level 1 (Bottom) Level 2 Level 3 Level 4 Level 5 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING ©...
