Step 1
Order #XXXXX -

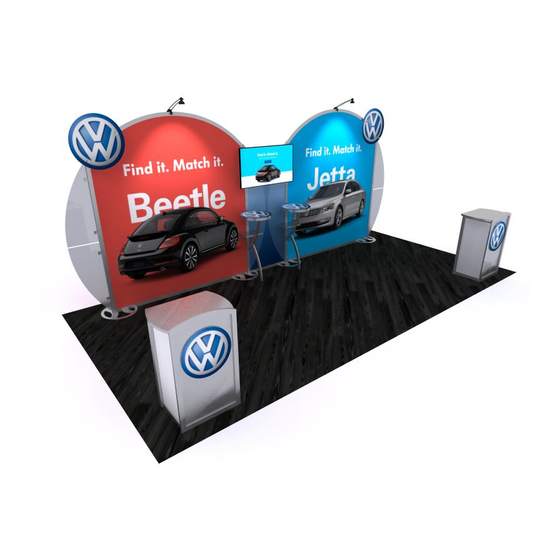

General Layout
866.652.2100
10'
20'

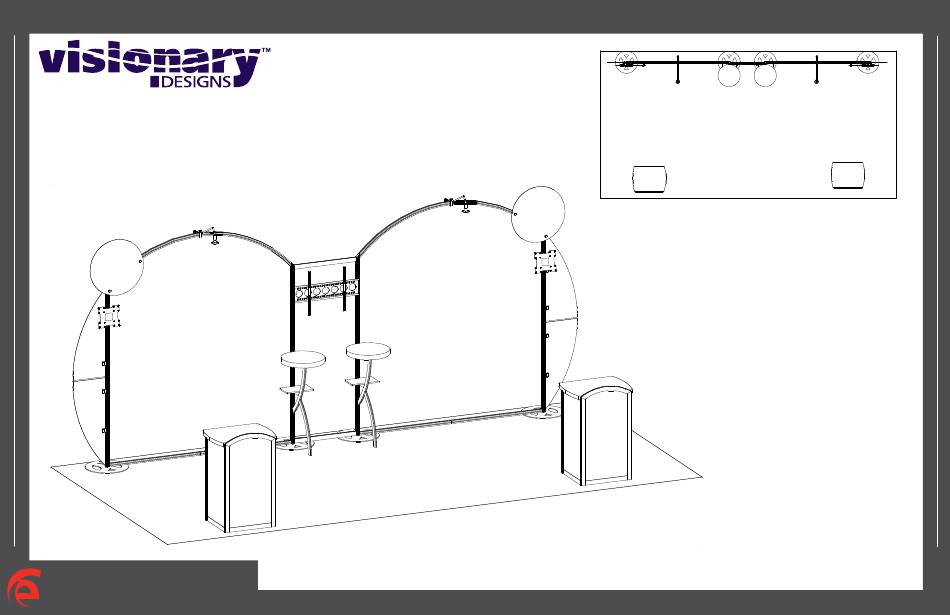

Plan View
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
© 2015
w w w . c l a s s i c e x h i b i t s . c o m
Page 1 of 4
