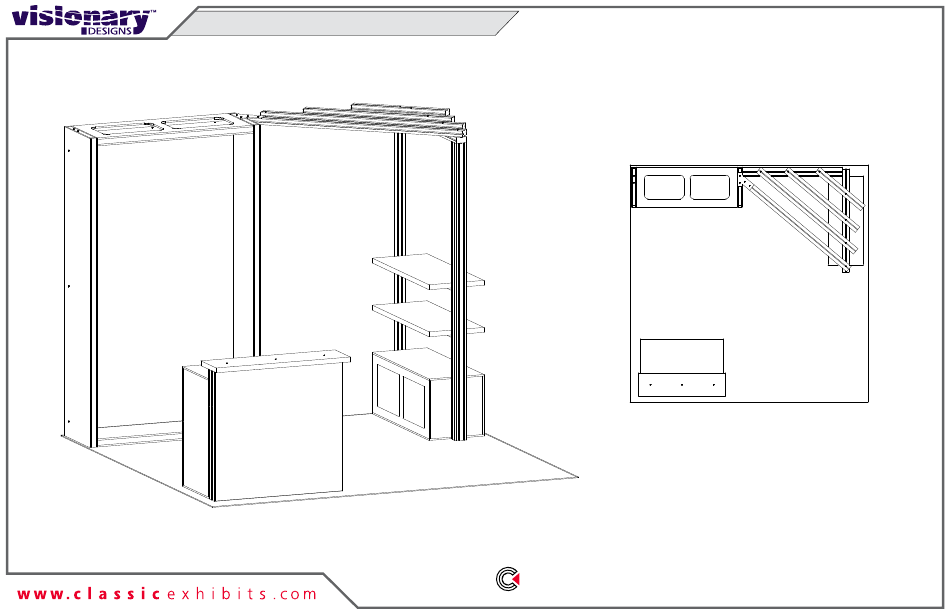

- Page 1 © 2023 Order #XXXXX VK-1366 10’ x 10’ Exhibit 10’ 10’ Plan View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
-
Page 2: Plan View
© 2023 Order #XXXXX Plan View = 1 sq foot... -
Page 3: General Setup Instructions
© 2023 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly. - Page 4 © 2023 Order #XXXXX CEI110 Frame Assembly Disassembly Slide both connectors across seam of extrusions. Tighten all knobs. Straight Connection 1) Loosen all knobs. Straight Connector When assembling frame, first attach all straight 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
- Page 5 © 2023 Order #XXXXX SEG Installation Graphic Removal Corner A Corner B Corner D Corner C Step 1 Step 2 Step 3 It is important to first insert To remove the graphic from Insert corner A. Turn edge of Repeat Step 1 for opposite Once all corners are inserted, graphic into each alternate the frame, locate the fabric...
- Page 6 © 2023 Order #XXXXX Crate Packing CRATE PACKING Crate 1 of 1...
- Page 7 © 2023 Order #XXXXX Recessed Wall Lightbox Assembly Item Qty. Description Steps: 90.5”h CEI110 Vertical Extrusion Refer to the CEI110 Frame Assembly general information page. 90.5”h CEI110 Vertical Extrusion 51”w CEI110 Horizontal Extrusion 1) Assemble verticals [1,2] between horizontals [3,4]. 51”w CEI110 Horizontal Extrusion 2) Connect power cords to Supernova lights as shown.
- Page 8 © 2023 Order #XXXXX Recessed Wall Assembly Item Qty. Description Steps: 2.5”w x 95.5”h x 20”d Side Panel 1) Connect bottom panel [C] to side panels [A,B] using roto cam locks. 2.5”w x 95.5”h x 20”d Side Panel Roto Cam Lock Connection detail.
- Page 9 © 2023 Order #XXXXX Backwall Lightbox Assembly Item Qty. Description Steps: 93.689”h CEI110 Vertical Extrusion Refer to the CEI110 Frame Assembly general information page. 93.689”h CEI110 Vertical Extrusion 50.417”w CEI110 Horizontal Extrusion 1) Assemble verticals [5,6] between horizontals [7,8]. 50.417”w CEI110 Horizontal Extrusion 2) Connect power cords to Supernova lights as shown.
- Page 10 © 2023 Order #XXXXX Backwall Lightbox Attachment Steps: 1) Connect vertical [5] of frame assembly to Panel [B], using Bolt to T-Nut Connection. 2) Apply SEG graphic to front of assembled lightbox. Refer to the SEG Installation general information page. When assembled S E G G ra ph ic Bolt to T-Nut...
- Page 11 © 2023 Order #XXXXX Product Display Wall Assembly Item Qty. Description Steps: 91.878”h Q918 Vertical Extrusion 1) Attach vertical [9] to lightbox vertical [6] using bolts & V4 connectors. 91.878”h Q918 Vertical Extrusion Lightbox Attachment detail. 44.835”w x 18”d x 109”h Storage Cabinet 2) Apply SEG blocker to back of lightbox.
- Page 12 © 2023 Order #XXXXX Product Display Wall Attachment Item Qty. Description Steps: 52”w S91 Horizontal Extrusion 1) Attach horizontals [12,13] on underside of Shelves [F] 12,13 44.835”w Z41 Horizontal Extrusion to verticals [9,10] as shown. 44.874”w x 18”d Shelf 2) Connect horizontal [11] to top of verticals [9,10]. When assembled Horizontals [12,13] stay permanently attached...
-
Page 13: Canopy Assembly
© 2023 Order #XXXXX Canopy Assembly Item Qty. Description Steps: 30”w S91 Horizontal Extrusion 1) Attach extrusions [14,15,16] to top of horizontals [8] & [11] 47”w S91 Horizontal Extrusion using bolts & V4 connectors. See Canopy Attachment detail. 64”w S91 Horizontal Extrusion 2) Connect extrusion [17] to top of horizontal [11], and attach 71.797”w S91 Horizontal Extrusion to top of wall panel [B] using custom bracket. - Page 14 © 2023 Order #XXXXX MOD-1726 Counter Steps: 1) Connect power cords to Supernova lights as shown. 2) Apply SEG graphic to front of lightbox. Refer to the SEG Installation general information page. FRONT VIEW When assembled Transformer S E G G r a p h i c BACK VIEW...
