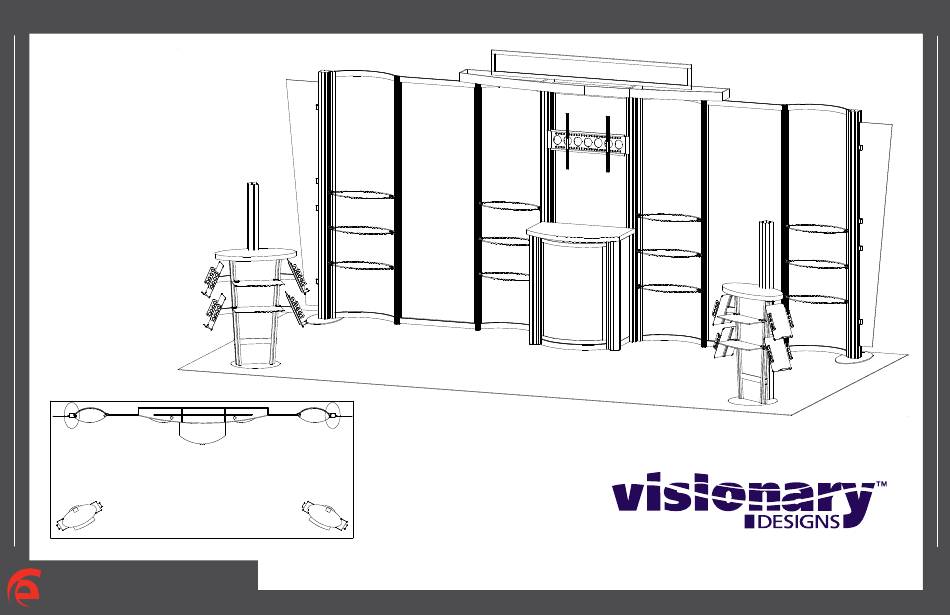

- Page 1 Step 1 Order #XXXXX - VK-2914 - General Layout 866.652.2100 10’ 20’ Plan View WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING © 2015 w w w . c l a s s i c e x h i b i t s . c o m Page 1 of 7...
- Page 2 Step 2 Order #XXXXX - General Information 866.652.2100 Using Your Setup Instructions The Visionary Designs Setup Instructions are created specifically for your Detail A configuration. They are laid out sequentially, including an exploded view of the entire display, and then a logical series of detailed steps to assemble the main structure and components.
- Page 3 Step 3 Order #XXXXX - VK-2914 - Backwall Section Identification 866.652.2100 SECTIONS IDENTIFICATION Assemble Sections A & B separately then connect with center extrusions. SEC. A SEC. B IN RED IN GREEN WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING ©...
-
Page 4: Section A Assembly
Step 1 Order #XXXXX - VK-2914 - Backwall Assembly - Section A 866.652.2100 V10 Pressure SECTION A ASSEMBLY Screw Attachment Item Qty. Description **Note: Keep vertical Slide V10 pressure Oval Base Plate extrusions [2 & 8] and [9 & 3] screw between grooves 83.75”h Square Vertical Extrusion assembled when shipping. - Page 5 Step 2 Order #XXXXX - VK-2914 - Backwall Assembly - Section B 866.652.2100 V10 Pressure SECTION B ASSEMBLY Screw Attachment Item Qty. Description **Note: Keep vertical Slide V10 pressure Oval Base Plate extrusions [2 & 8] and [9 & 3] screw between grooves 83.75”h Square Vertical Extrusion assembled when shipping.
-
Page 6: Front View
Step 3 Order #XXXXX - VK-2914 - Backwall Assembly - Sections Assembly 866.652.2100 SECTIONS ASSEMBLY Item Qty. Description Steps: 29.5”w Z45 Horizontal Extrusion 1) Connect horizontal extrusions [11a &13a ] between verticals [3 & 3a]. 29.5”w Z45 Horizontal Extrusion NOTE: This connects Sections A & B together. 32.5”w Monitor Mounting Plate 2) Attach monitor mounting plate [14] to face of verticals [3 &... - Page 7 Step 4 Order #XXXXX - VK-2914 - Backwall Counter & Shelves 866.652.2100 Item Qty. Description Steps: Steps Cont’d: 38” Round Vertical Extrusion 1) Attach angled vertical extrusions [17 & 17A] to verticals 4) Attach monitor mount to horizontal plate [14]. 38”...
- Page 8 Step 5 Order #XXXXX - VK-2914 - Ceiling and Header Assembly 866.652.2100 Item Qty. Description 78” Header Horizontal Extrusion 78” Header Horizontal Extrusion with holes and bolts 5.823” Header Horizontal Extrusion Steps: 1) Attach vertical extrusions [19] between horizontal extrusions [18 & 18A]. Note: Place infills between horizontal and vertical extrusions as shown.
- Page 9 Step 6 Order #XXXXX - VK-2914 - Attachments 866.652.2100 Steps: 1) Attach Ceiling/Header to top of assembly. 2) Connect the graphic wings to the outter verticals. WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING ©...
- Page 10 Step 7 Order #XXXXX - VK-2914 - Pedestal Workstation 866.652.2100 Item Qty. Description Steps: 1) Attach diagonal extrusions [21 & 22] and square vertical extrusion [23] to round base plate [20]. Round Base Plate 38.125”h Left Diagonal Extrusion w/ A10 Clamps Attached 2) Place infill into groove between diagonal extrusions [21 &...
- Page 11 Order #XXXXX - VK-2914 - Crate Packing 866.652.2100 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING © 2015 w w w . c l a s s i c e x h i b i t s . c o m...
- Page 12 Order #XXXXX - Crate Packing 866.652.2100 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING © 2015 w w w . c l a s s i c e x h i b i t s . c o m...
