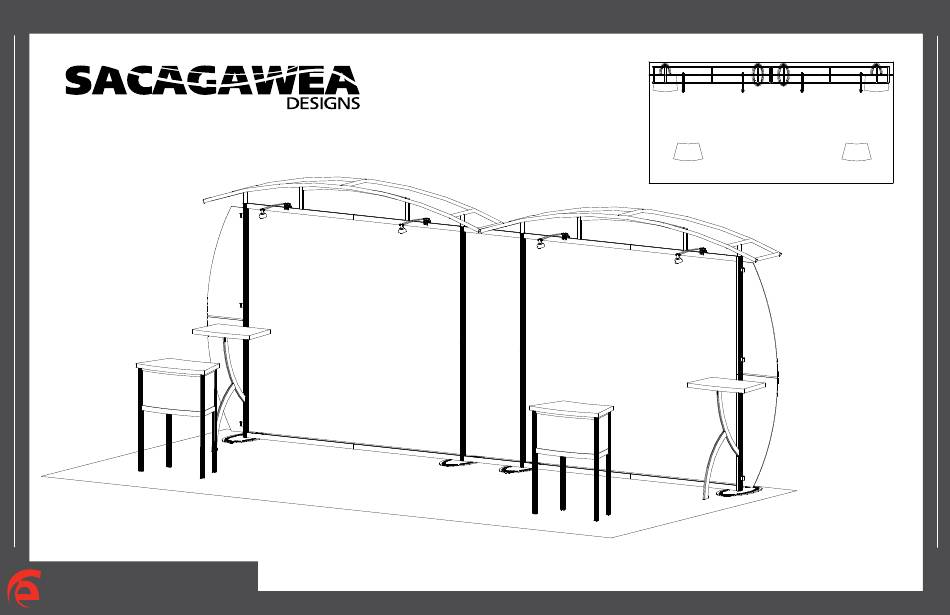

- Page 1 Step 1 Order #xxxxx - Sacagawea - VK-2106 - General Layout 866.652.2100 10’ Plan View 20’ WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING © 2012 w w w . c l a s s i c e x h i b i t s . c o m Page 1 of 4...
- Page 2 Step 2 Order #xxxxx - Sacagawea - General Information 866.652.2100 Using You Set-up Instructions: The Visionary Designs Set-up Instructions for Sacagawea displays are created Hex Key Tool Typical Connection Typical Connection specifically for your configuration. They are laid out sequentially, including an exploded view of the entire display and a logical series of detailed steps for assembly.
-
Page 3: Front View
Step 1 Order #xxxxx - Sacagawea - Backwall Assembly 866.652.2100 Steps: 1) Attach base plates [1] to lower verticals [2a,3a,2c,3c] with bolts. 2) Connect upper verticals [2b,3b,2d,3d] to lower verticals [2a,3a,2c,3c] with connection bars [b]. 3) Connect horizontals [4a,4b] and [5a,5b] with connection bars [a]. 4) Connect vertical assemblies [2a/2b,3a/3b,2c/2d,3c/3d] with horizontal assemblies [4a/4b,5a/5b] and horizontals [4c,5c] as shown. - Page 4 Step 2 Order #xxxxx - Sacagawea - Counter and Wing Attachment 866.652.2100 Steps: Item Qty. Description 1) Attach lights as indicated. 7/8/9 2/2/2 Header Frame 2) Attach assembled header frames and apply graphics as shown. 30.2” Curved Extrusion 3) Attach assembled counter supports [10/11] to verticals where indicated. Leg Support 4) Attach support legs [10a] to counter supports [10/11].
- Page 5 Step 3 Order #xxxxx - Sacagawea - Serpentine Canopy Assembly 866.652.2100 Steps: 1) Connect canopy pieces together as shown. 2) Apply pillow case graphic to assembled canopy Using Your Setup Instructions The Aero Overhead Sign Setup Instructions are created specifically for your configuration. They include an exploded view of the frame which is sequentially numbered.
- Page 6 Step 4 Order #xxxxx - Sacagawea - Pedestal Assembly - QTY. 2 866.652.2100 Item Description 38”h Vertical Extrusion 13/13a 12”w Horizontal Extrusion 25”w Horizontal Extrusion Steps 1) Attach horizontal extrusions [13 and 13a] between vertical extrusions [12], placing inserts between horizontals. 2) Attach curved horizontal extrusions [14] between vertical extrusions [12], placing insert between curved horizontals.
-
Page 7: Top View
Order #xxxxx - Case Packing Instruction - Case 1 of 4 866.652.2100 Top View Canopy Pieces Wing Panels Graphics Base Plates Counter Level 1 Level 2 Level 3 Level 4 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING ©... - Page 8 Order #xxxxx - Case Packing Instruction - Case 2 of 4 866.652.2100 Top View Canopy Pieces Wing Panels Graphics Base Plates Counter Level 1 Level 2 Level 3 Level 4 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING ©...
- Page 9 Order #xxxxx - Case Packing Instruction - Case 3 of 4 866.652.2100 Top View Front Insert Assembled Assembled Pedestal Pedestal Side Side Counter Top Shelf Level 1 Level 2 Level 3 Level 4 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING ©...
- Page 10 Order #xxxxx - Case Packing Instruction - Case 4 of 4 866.652.2100 Top View Front Insert Assembled Assembled Pedestal Pedestal Side Side Counter Top Shelf Level 1 Level 2 Level 3 Level 4 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING ©...
