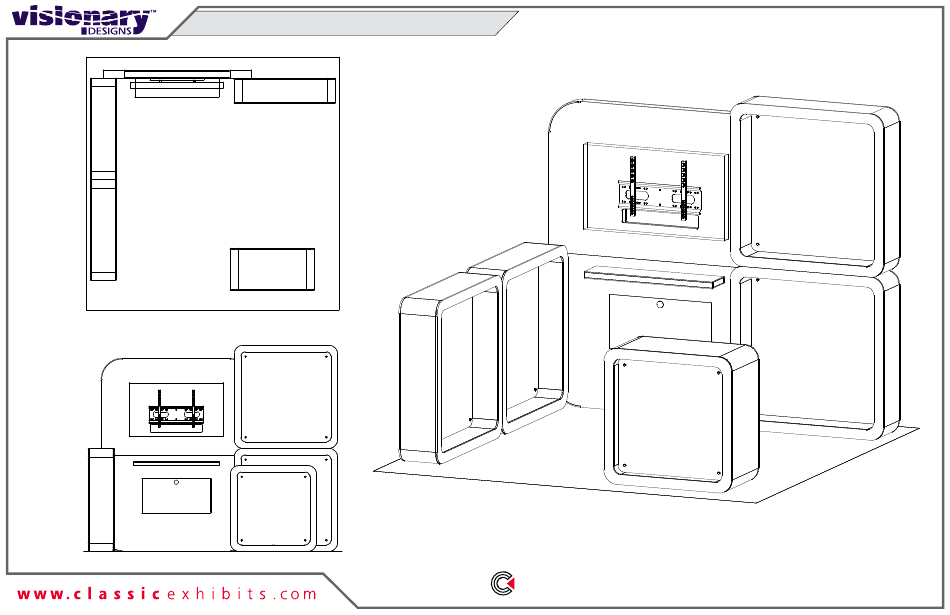

- Page 1 © 2024 Order #XXXXX VK-1128 10’x10’ Booth 10’ Plan View 10’ Elevation View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
- Page 2 © 2024 Order #XXXXX Plan View = 1 sq foot...
- Page 3 © 2024 Order #XXXXX General Information WARNING General Setup Instructions - Read entire setup instruction manual prior to unpacking parts and pieces. - The setup instructions are created specifically DO NOT USE POWER TOOLS for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed LADDERS OR LIFTS explanation for assembly.
- Page 4 © 2024 Order #XXXXX Supernova Lighting Light to Light Attachment Light to Tranformer Attachment RGB Controller Attachment RGB Controller Male - Female Lights Female Connect transformer Power Power to RGB Controller, Transformer Transformer then connect transformer 48W / 2 Amp / 24V 48W / 2 Amp / 24V Maximum of 5 lights to power source.
- Page 5 © 2024 Order #XXXXX Crate Packing CRATE PACKING Crate 1 of 1...
- Page 6 © 2024 Order #XXXXX Assembly Item Qty. Description Steps: 48”w x 48”h x 12”d Cabinet 1) Connect Cabinets [A] & [B] together using roto cam locks. 48”w x 48”h x 12”d Cabinet Roto Cam Lock Connection detail. 70”w x 45”h x 4”d Wall Panel 2) Assemble Wall Panels [F1-F2] together using roto cam locks.
-
Page 7: Back View
© 2024 Order #XXXXX Assembly (cont’d) Item Qty. Description 48”w x 48”h x 12”d Cabinet 48”w x 48”h x 12”d Cabinet Steps: 1) Attach plex panels inside of Cabinets [C] and [D], using standoffs and screw caps. . 2) Connect Cabinets [C] & [D] together using roto cam locks. Roto Cam Lock Connection detail. - Page 8 © 2024 Order #XXXXX Attachments Steps: 1) Install Monitor Mount to backwall panels [F2]. Monitor Mount Attachment detail. 2) Attach keyboard Shelf to backwall panels [F1], Roto Cam Lock Connection. Roto Cam Lock Connection When assembled Step 2 Step 1 Monitor Mount Attachment Hole for wire Place hex tool in hole on side of panel.
-
Page 9: Side View
© 2024 Order #XXXXX Wiring Steps: 1) Place Greeting Counter in front of backwall assembly, as shown on layout. 2) Connect power cords to Supernova lights inside Greeting Counter, as shown. 3) Attach power cords to Supernova lights inside Cabinets [A & B]. Transformers are permanently attached to the back side of panel [F1].
