© 2021
REV 9/2021
Order #XXXXX

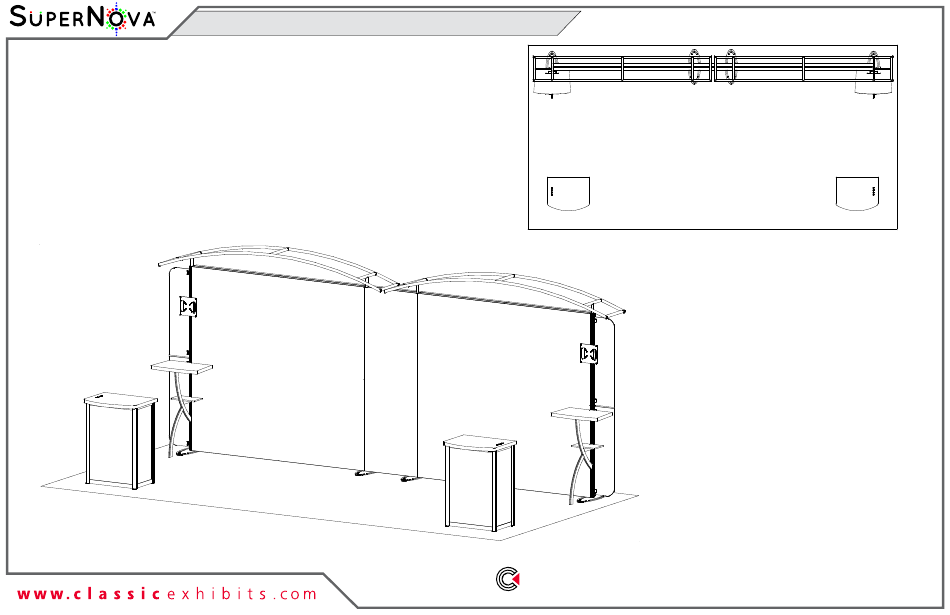

VK-2991 - 10' x 20' Display
20'
10'
Top View
Perspective View
SETUP INSTRUCTIONS
If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the SUPERNOVA VK-2991 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Classic Exhibits SUPERNOVA VK-2991

  • Page 1 © 2021 REV 9/2021 Order #XXXXX VK-2991 - 10’ x 20’ Display 20’ 10’ Top View Perspective View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
  • Page 2: Grid View

    © 2021 Order #XXXXX Grid View = 1 sq foot...
  • Page 3: General Setup Instructions

    © 2021 Order #XXXXX General Information General Setup Instructions Lighting Installation Warning If utilizing your own hardware, - Read entire setup instruction manual prior to purchase nylon washers to prevent metal screw heads from damaging unpacking parts and pieces. the circuit board. Keep assembled when packing.
  • Page 4 © 2021 Order #XXXXX CEI110 Frame Assembly Disassembly Slide both connectors across seam of extrusions. Tighten all knobs. Straight Connection 1) Loosen all knobs. Straight Connector When assembling frame, first attach all straight 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
  • Page 5 © 2021 Order #XXXXX Counter Attachment COUNTER ATTACHMENT Counter Attachment Bottom view of counter Bolt Bolt Counter Mounting Plate w/ Wig Nuts Mounting Plate Fixed Bolts Counter 2) Mounting plate bolt in, 3) Place mounting plate onto 1) Mounting plate & wing nuts, Mounting packed position.
  • Page 6 © 2021 Order #XXXXX SEG Installation Graphic Removal Corner A Corner B Corner D Corner C Step 1 Step 2 Step 3 It is important to first insert To remove the graphic from Insert corner A. Turn edge of Repeat Step 1 for opposite Once all corners are inserted, graphic into each alternate the frame, locate the fabric...
  • Page 7 © 2021 Order #XXXXX Case Packing Top View of Each Level Monitor Mount Base Plates (Qty. 2) Graphics Wings (Qty. 4) Setup Hardware 5,5A 6A,7A Counter Level 1 (Bottom Level) Level 2 Level 3 Case 1 of 6...
  • Page 8 © 2021 Order #XXXXX Case Packing Top View of Each Level Canopy Pieces Level 1 (Bottom Level) Level 2 Level 3 Case 2 of 6...
  • Page 9 © 2021 Order #XXXXX Case Packing Top View of Each Level Shelf Supports Counter Infills Door Shelf 18 19 Level 1 (Bottom Level) Level 2 Level 3 Level 4 Case 3 of 6...
  • Page 10 © 2021 Order #XXXXX Case Packing Top View of Each Level Monitor Mount Base Plates (Qty. 2) Graphics Setup Hardware 5,5A 6A,7A Canopy Pieces Counter Level 1 (Bottom Level) Level 2 Level 3 Level 4 Case 4 of 6...
  • Page 11 © 2021 Order #XXXXX Case Packing Top View of Each Level Level 1 (Bottom Level) Level 2 Level 3 Level 4 Case 5 of 6...
  • Page 12 © 2021 Order #XXXXX Case Packing Top View of Each Level Shelf Supports Counter Infills Door Shelf 18 19 Level 1 (Bottom Level) Level 2 Level 3 Level 4 Case 6 of 6...
  • Page 13 © 2021 Order #XXXXX Backwall Assembly Steps: Item Qty. Description 1) Assemble extrusions [1] thru [4A] and [1] thru [4A], 1,1A,1,1A 42” CEI110 Vertical Extrusion Z45 Connection flat on floor. See CEI110 Frame Assembly sheet. 2,2A,2,2A 42” CEI110 Vertical Extrusion V4 Connector (Top View) 2) Connect extrusions [5] to [5A].
  • Page 14: Canopy Assembly

    © 2021 Order #XXXXX Canopy Assembly Using Your Setup Instructions The Aero Setup Instructions are created specifically for your configuration. The instructions include an exploded view of the frame which is sequentially labeled. We encourage you to review the instructions before attempting to assemble your exhibit.
  • Page 15: Completed Assembly

    © 2021 Order #XXXXX Backwall Attachments Item Qty. Description Steps: 12.184” Z45 Horizontal Extrusion 1) Attach assembled extrusions [12/13] to verticals [6] and [6]. 30.2” Z45 Curved Extrusion 2) Attach support legs [14] to curved extrusion [13]. 24.45” Z45 Support Leg 3) Attach shelf to verticals [6] and [6].
  • Page 16 © 2021 Order #XXXXX Left Reception Counter Assembly Item Qty. Description Steps: 37.5” RSG530 Vertical Extrusion w/ Door Hinges 1) Attach lower horizontals [20] and [21] between verticals [16] [17] [18] and [19]. 37.5” RSG530 Vertical Extrusion 2) Connect door to vertical [19]. See Door Connection detail.
  • Page 17 © 2021 Order #XXXXX Right Reception Counter Assembly Item Qty. Description Steps: 37.5” RSG530 Vertical Extrusion w/ Door Hinges 1) Attach lower horizontals [20] and [21] between verticals [16] [17] [18] and [19]. 37.5” RSG530 Vertical Extrusion 2) Connect door to vertical [19]. See Door Connection detail.
