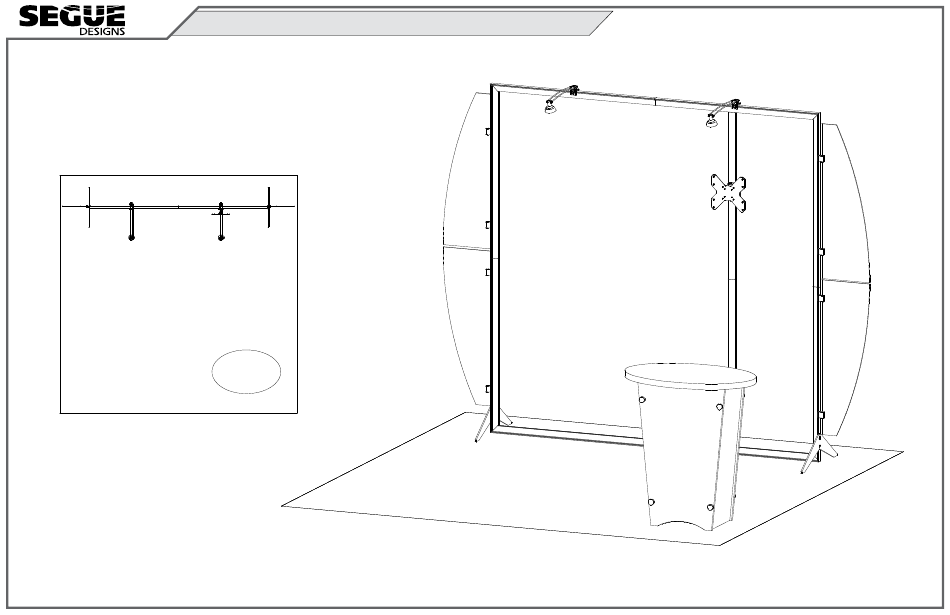

- Page 1 © 2024 VK-1915 - 10’ x 10’ Sunrise Inline 10’ 10’ Plan View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
-
Page 2: Plan View
© 2024 Plan View = 1 sq foot... -
Page 3: General Setup Instructions
© 2024 General Information General Setup Instructions WARNING - Read entire setup instruction manual prior to unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly. - Page 4 © 2024 Tool-less Frame Assembly Slide connector across seam of extrusions. Disassembly Tighten all knobs. Straight Connection 1) Loosen all knobs. When assembling frame, first attach all straight Straight Connector 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
- Page 5 © 2024 SEG Installation Graphic Removal Corner A Corner B Corner D Corner C Step 1 Step 2 Step 3 It is important to first insert To remove the graphic from Insert corner A. Turn edge of Repeat Step 1 for opposite Once all corners are inserted, graphic into each alternate the frame, locate the fabric...
- Page 6 © 2024 Case Packing VK-1915 Backwall Top View of Each Level 9 10 Lights Foot Graphics Wings Setup Hardware Foot Monitor Mount Level 1 Level 2 Level 3 Level 4 (Bottom level) Case 1 of 2...
- Page 7 © 2024 Case Packing LTK-1001 Counter Top View of Each Level Counter Top Front Panel Back Panel w/ Door (2) Side Panels Shelf Shelf Supports Standoffs Keys Hardware Floor Level 1 (Bottom Level) Level 2 Level 3 Level 4 Level 5 Case 2 of 2...
-
Page 8: Front View
© 2024 Backwall Assembly Item Qty. Description Steps: 45”h TSP46 Vertical Extrusion w/ A10 clamps Refer to the Tool-less Frame Assembly general information page. 45”h TSP46 Vertical Extrusion w/ A10 clamps 45”h TSP46 Vertical Extrusion w/ A10 clamps 1) Assemble extrusion [1-2], [3-4], [5-6], [7-8], [9-10] together using straight connectors. 45”h TSP46 Vertical Extrusion w/ A10 clamps 2) Connect vertical assemblies [1/2], [3/4] between horizontal assemblies [5/6], [7/8] 45”w TSP46 Horizontal Extrusion... - Page 9 © 2024 Monitor Mount Attachment Steps: 1) Connect Monitor Mount to vertical assembly [9/10]. Monitor Mount Attachment detail. Completed Assembly Monitor Mount Attachment A ttach Monitor Mount back piece to vertical extrusion using bolts. Then slide monitor mount into back piece as shown. Bolts Monitor Monitor Mount...
- Page 10 © 2024 LTK-1001 Counter Assembly Setup Instructions: 1) Attach pins at bottom interior of side panels. Note: Pins are designed to be slightly angled. 2) Use screw caps to secure the side panels to front panel and back panels, making sure Velcro is facing inward. 3) Slide floor into the bottom of assembled pedestal base.
