Classic Exhibits Visionary Designs VK-1324 Setup Instructions

Advertisement

Quick Links

© 2015
Order #XXXXX -
VK-1324
10'

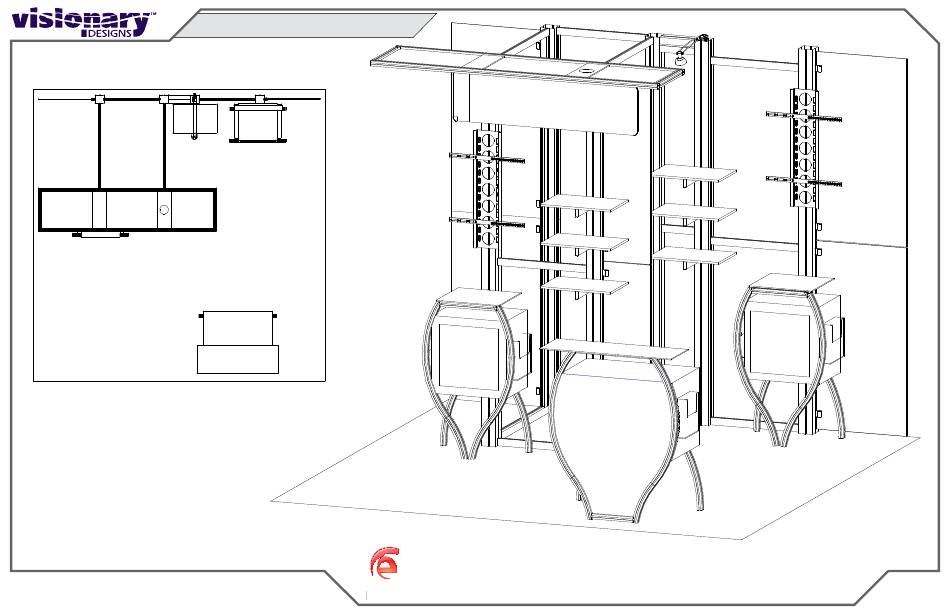

Plan View
10'
Perspective View
SETUP INSTRUCTIONS
w w w . c l a s s i c e x h i b i t s . c o m
If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Visionary Designs VK-1324 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Classic Exhibits Visionary Designs VK-1324

  • Page 1 © 2015 Order #XXXXX - VK-1324 10’ Plan View 10’ Perspective View SETUP INSTRUCTIONS w w w . c l a s s i c e x h i b i t s . c o m If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
  • Page 2: General Setup Instructions

    © 2015 Order #XXXXX - General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly.
  • Page 3 © 2015 Order #XXXXX - Backwall Assembly Steps: 1) Connect horizontals [2], [2A], & [2B] between verticals [1] & [3]. 2) Attach horizontals [8] & [8A] between verticals [1] & [7]. 3) Connect horizonals [6] & [6A] between verticals [5] & [7]. Item Qty.
  • Page 4 © 2015 Order #XXXXX - Ceiling Assembly Item Qty. Description 13/13A 73.085”w S44 Horizontal Extrusion 15.5”w S44 Extrusion 15.5”w Z140 Extrusion 15.5”w Z140 Extrusion w/ Puck Light Steps: 1) Attach extrusions [14] to horizontal [13]. 2) Insert infills and extrusions [15] & [16]; secure with horizontal [13A] Infill Infill Infill...
  • Page 5 © 2015 Order #XXXXX - Attachments Item Qty. Description Shelf Support Horizontal Extrusion Steps: 1) Attach shelves to verticals [3] & [10]. See Shelf Attachment detail. 2) Connect Graphic Wings to installed A10 Clamps on verticals [1], [3], & [12]. 3) Install Light on top of vertical [10].
  • Page 6 © 2015 Order #XXXXX - Attachments Cont’d Steps: 1) Attach monitor mounts to verticals [2] & [12]. Monitor Mount Attachment detail. Graphic Header 2) Connect Graphic Header to front verticals [2] & [3]. NOTE: Will attach using velcro. Monitor Mount Attachment Attach back plate to connectors Slide connectors into groove using screws provided.
  • Page 7 © 2015 Order #XXXXX - Backwall Pedestals Item Qty. Description Literature Pocket Attachment Detail 3” Horizontal Extrusion Attach literature pockets with Velcro Steps: to sides of pedestal. 1) Screw assembled pedastal to Q914 vertical with screwcaps. 2) Attach counter top support [A] to backwall verticals [2,4,20]. 3) Attach counter top to front horizontal and support [A] using screws.
  • Page 8 © 2015 Order #XXXXX - Freestanding Pedestal Setup Instructions: 1) Attach counter top to front horizontal using screws as shown in detail. 2) Attach literature pockets to Velcro on sides of pedestal as shown. Counter Counter Top Attachment Detail Literature Pocket Attachment Detail Attach literature pockets with Velcro to sides of pedestal.
