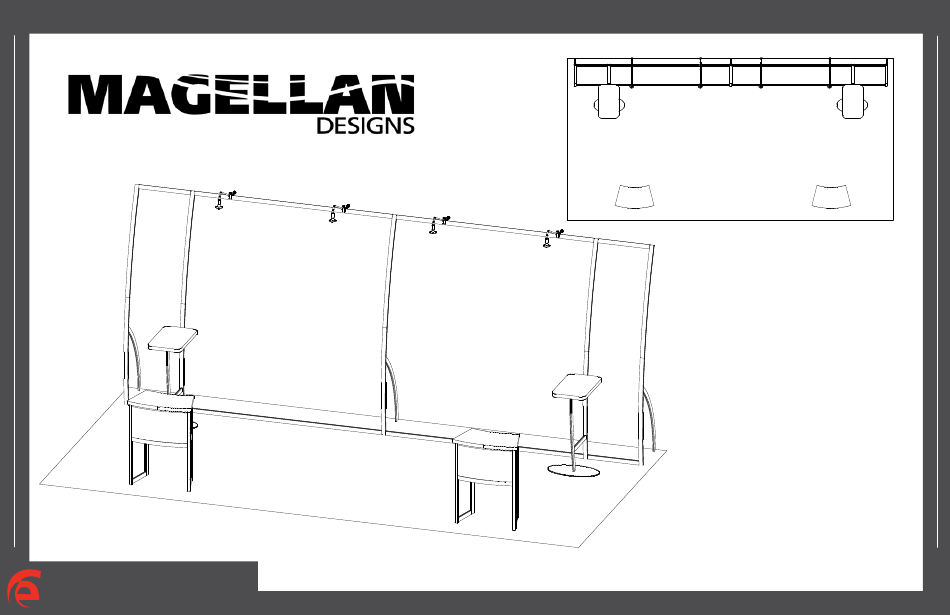

Step 1

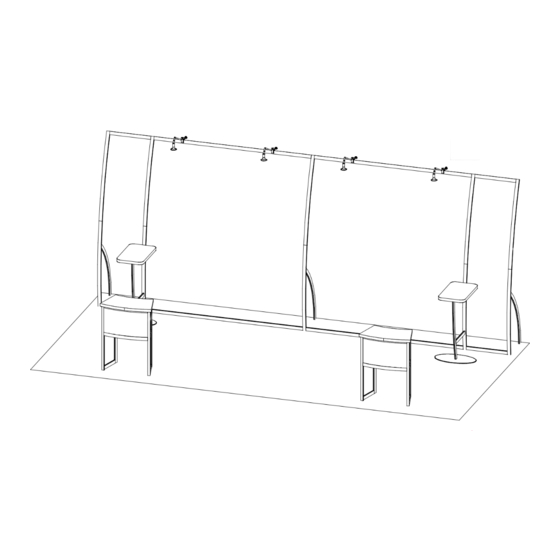

Order #XXXXX - VK-2094 - Magellan Miracle - General Layout
866.652.2100
10'
20'
Plan View
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
© 2012
w w w . c l a s s i c e x h i b i t s . c o m
Page 1 of 4

Advertisement

loading
Need help?

Need help?

Do you have a question about the Magellan Designs VK-2094 and is the answer not in the manual?

Questions and answers

Summary of Contents for Classic Exhibits Magellan Designs VK-2094

  • Page 1 Step 1 Order #XXXXX - VK-2094 - Magellan Miracle - General Layout 866.652.2100 10’ 20’ Plan View WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING © 2012 w w w . c l a s s i c e x h i b i t s . c o m Page 1 of 4...
  • Page 2 Step 2 Order #XXXXX - General Information 866.652.2100 Typical Connection Typical Connection Using You Set-up Instructions: The Visionary Designs Set-up Instructions for Magellan displays are created specifically for your configuration. They are laid out sequentially, including an exploded view of the entire display and a logical series of detailed steps for assembly.
  • Page 3: Back View

    Step 1 Order #XXXXX - Backwall Assembly 866.652.2100 Part Number Description GREEN STAR indicates location 48.5”h Lower Curved Extrusion of connection lock with knob. 48.5”h Upper Curved Extrusion Light Connection 48.5”h Lower Curved Extrusion Attach lights to FRONT 48.5”h Upper Curved Extrusion backwall where 48.5”h Lower Curved Extrusion VIEW...
  • Page 4 Step 2 Order #XXXXX - Backwall Assembly (Cont’d) 866.652.2100 Part Number Description GREEN STAR indicates location 48.5”h Lower Curved Extrusion Light Connection of connection lock with knob. 48.5”h Upper Curved Extrusion Attach lights to 48.5”h Lower Curved Extrusion backwall where 48.5”h Upper Curved Extrusion desired and 17a/17b...
  • Page 5 Step 3 Order #XXXXX - Backwall Workstation Assembly 866.652.2100 Part Number Description Base Plate 37.6”h Curved Vertical Extruaion Oval Flange Plate Monitor Mount Attachment 18.5”w Horizontal Extrusion 15.69”w Horizontal Extrusion Monitor Mount Steps 1) Attach curved vertical [23] to base plate [22], see Base Plate Attachment detail.
  • Page 6 Step 4 Order #XXXXX - Pedestal Assembly - QTY. 2 866.652.2100 Part Number Description 37.5”h Vertical Extrusion 37.5”h Corner Extrusion 37.5”h Corner Extrusion 37.5”h Vertical Extrusion 30/30a 11”w Horizontal Extrusion 24.875”w Horizontal Extrusion Steps (Cont’d): Steps 3) Place hooks onto horizontal extrusions 1) Attach horizontal extrusions [30 and 30a] between vertical where indicated, see Hook Attachment detial.
  • Page 7 Step 5 Order #XXXXX - Packing Instruction - Case 1 of 4 866.652.2100 Top View of Each Level Backwall Components Halogen Lights Backwall Counter Base Plate Graphics Flange Plate Setup Hardware Level 1 (Bottom) Level 2 Level 3 Level 4 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING ©...
  • Page 8 Step 6 Order #XXXXX - Packing Instruction - Case 2 of 4 866.652.2100 Top View of Each Level Backwall Components Halogen Lights Backwall Counter Base Plate Graphics Flange Plate Setup Hardware Level 1 (Bottom) Level 2 Level 3 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING ©...
  • Page 9 Step 7 Order #XXXXX - Packing Instruction - Case 3 of 4 866.652.2100 Top View of Each Level Pedestal Components Front Insert Assembled Assembled Pedestal Pedestal Side Side Counter Top Internal Shelf Level 1 Level 2 Level 3 Level 4 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING ©...
  • Page 10 Step 8 Order #XXXXX - Packing Instruction - Case 4 of 4 866.652.2100 Top View of Each Level Pedestal Components Front Insert Assembled Assembled Pedestal Pedestal Side Side Counter Top Internal Shelf Level 1 Level 2 Level 3 Level 4 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING ©...
