Step 1

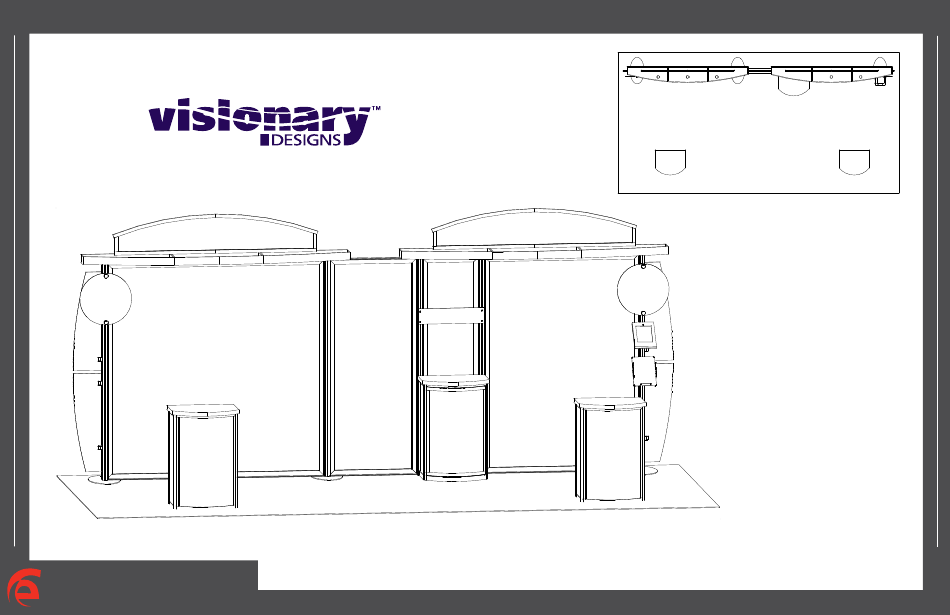

Order #XXXXX - VK-2959 - General Layout
866.652.2100
10'
Plan View
20'
Perspective View
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
© 2015
w w w . c l a s s i c e x h i b i t s . c o m
Page 1 of 8

Advertisement

loading
Need help?

Need help?

Do you have a question about the VISIONARY DESIGNS VK-2959 and is the answer not in the manual?

Questions and answers

Summary of Contents for Classic Exhibits VISIONARY DESIGNS VK-2959

  • Page 1 Step 1 Order #XXXXX - VK-2959 - General Layout 866.652.2100 10’ Plan View 20’ Perspective View WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING © 2015 w w w . c l a s s i c e x h i b i t s . c o m Page 1 of 8...
  • Page 2 Step 2 Order #XXXXX - General Information 866.652.2100 Using Your Setup Instructions The Visionary Designs Setup Instructions are created specifically for your Detail A configuration. They are laid out sequentially, including an exploded view of the entire display, and then a logical series of detailed steps to assemble the main structure and components.
  • Page 3 Step 1 Order #XXXXX - Backwall Assembly - TSP Frames A & B 866.652.2100 Steps: Item Qty. Description 1) Assemble TSP50 frames together as shown. 1ea. 84”h TSP50 Vertical Extrusion Refer to TSP50 w/ A1 L Bracket Attachment detail. 1ea. 22”w TSP50 Horizontal Extrusion 1ea.
  • Page 4 Step 2 Order #XXXXX - Backwall Assembly - TSP Frames C & D 866.652.2100 Steps: Item Qty. Description 1) Assemble TSP50 frames together as shown. 1ea. 83.75”h TSP50 Vertical Extrusion Refer to TSP50 w/ A1 L Bracket Attachment detail. 1ea. 34”w TSP50 Horizontal Extrusion 1ea.
  • Page 5 Step 3 Order #XXXXX - Backwall Sections Assembly 866.652.2100 Item Qty. Description Steps: 84”h Vertical Extrusion 1) Attach base plates [11a] to verticals [11] and [12] with bolt as shown. 84”h Vertical Extrusion 2) Attach assembled TSP frames [A,B,C,D] between verticals. Custom Cam Lock 83.75”h Vertical Extrusion Refer to custom cam lock detail.
  • Page 6 Step 4 Order #XXXXX - Backwall Counter Assembly 866.652.2100 Item Qty. Description Steps: 38”h Vertical Extrusion 1) Attach lower horizontals [14,15] between verticals [12,13] and backwall as shown. 38”h Vertical Extrusion 2) Attach upper horizontals [14,15A] between verticals [12,13] and backwall as shown. Curved Horizontal Extrusion 3) Attach door to vertical [13].
  • Page 7 Step 5 Order #XXXXX - Attachments 866.652.2100 Item Item Qty. Description 16a/16b 16a/16b 5.862” Vertical Extrusion 17a/17b 17a/17b 40.319” Curved Extru. 18a/18b 18a/18b 39” Horizontal Extrusion Example of Canopy Connection Connecting Attaching Graphics Canopy Pieces Attach Header Graphic to Back of Together assembled header frame.
  • Page 8 Step 6 Order #XXXXX - Attachments Cont’d 866.652.2100 Steps: Monitor Mount Attachment 1) Attach graphic using standoff barrels and caps. Graphic Attachment Wing Graphic Attachment detail. 2) Attach literature rack to backwall as shown. Graphic Literature Rack Attachment detail. 3) Attach iPad clamshell atop counter as shown. Bolt Standoff iPad Attachment...
  • Page 9 Step 7 Order #XXXXX - MOD-1267 Pedestal Assembly 866.652.2100 Item Qty. Description Steps 38”h Vertical Extrusion w/ Door Hinges 1) Attach lower horizontal extrusions [23,24,25] between 38”h Vertical Extrusion w/ Door Stop vertical extrusions [19,20,21,22] as shown. 38”h Vertical Extrusion 2) Hang assembled door on hinges on vertical [19] as shown.
  • Page 10 Step 8 Order #XXXXX - MOD-1267 Pedestal Assembly 866.652.2100 Item Qty. Description Steps 38”h Vertical Extrusion w/ Door Hinges 1) Attach lower horizontal extrusions [23,24,25] between 38”h Vertical Extrusion w/ Door Stop vertical extrusions [19,20,21,22] as shown. 38”h Vertical Extrusion 2) Hang assembled door on hinges on vertical [19] as shown.
