Classic Exhibits visionary DESIGNS VK-1950 Manual

Order #XXXXX - VK-1950 - Lightbox Assembly
Item Qty Description
1 2 Base Plate
2/2a 1/1 45" Half Round Vertical Extrusion
3/3a 1/1 45" Half Round Vertical Extrusion
4/4a 2/2 44.5041" Z45 Horizontal Extrusion
5/5a 2/2 46.6892" Z45 Curved Horizontal Extrusion
**Note: the opening
of SEG extrusions must
be positioned outward
from the light box.
Graphic: To Ensure Proper Fit
Corner A
Corner B
Corner D
Corner C
It is important to first insert Step 1 Step 2
graphic into each alternate
Insert corner A. Turn edge of Repeat Step 1 for opposite
corner then to the sides of
graphic so silicon welt is corner C, then insert corner
the frame. If this is not done, perpendicular to face of B, followed by corner D, to
graphic will not fit into the graphic. Insert narrow side complete the installation of
frame correctly.
of welt with fabric to outside the corners.
into the channel. Repeat for
other side of this corner.
Graphic Removal
Step 3
Once all corners are inserted,
press one silicon edge into
channel from corners and
work toward the center.
Make sure welt is fully inserted
into channel. Continue until
all sides are done. Smooth
out edges of graphic.
To remove the graphic from
the frame, locate the fabric
pull tab. Gently pull up on the
tab to remove the fabric.
w w w . c l a s s i c e x h i b i t s . c o m

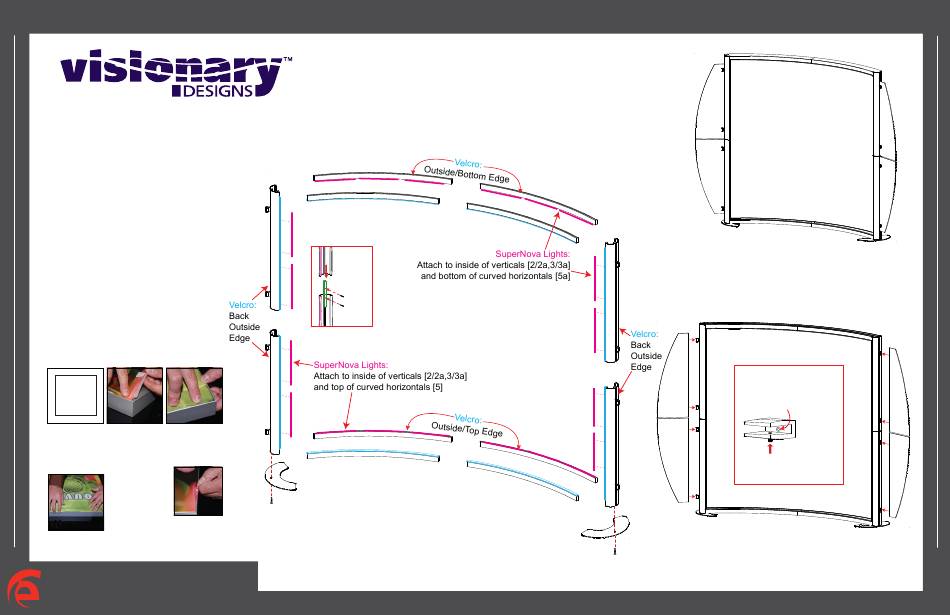

Steps:
1) Attach lower vertical extrusions [2,3] to base plates [1] using screws.
2) Attach upper vertical extrusions [2a,3a] to lower vertical extrusions [2,3] as shown in detail.
3) Connect curved horizontals [4,4a,5,5a] together as shown.
4) Attach horizontal assemblies between vertical assemblies [2/2a,3/3a] as shown.
5) Apply blocker fabric to velcro on outside of horizontals [5/5a) and verticals.
6) Attach SuperNova light to verticals [2/2a,3/3a] and horizontals [5,5a] as shown,
connecting connectors together.
7) Attach SEG graphics to front SEG groove according to detail below.
8) Attach wings to A-10 clamps as shown.
5a
4a
2a
*
* Screws
2
5
4
1
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
5a
4a
3a
*
3
5
4
1
866.652.2100
A10 Clamp Detail
Tighten set screw to
secure A10 to extrusion.
Tighten knob to secure
header/wing in place.
© 2013
