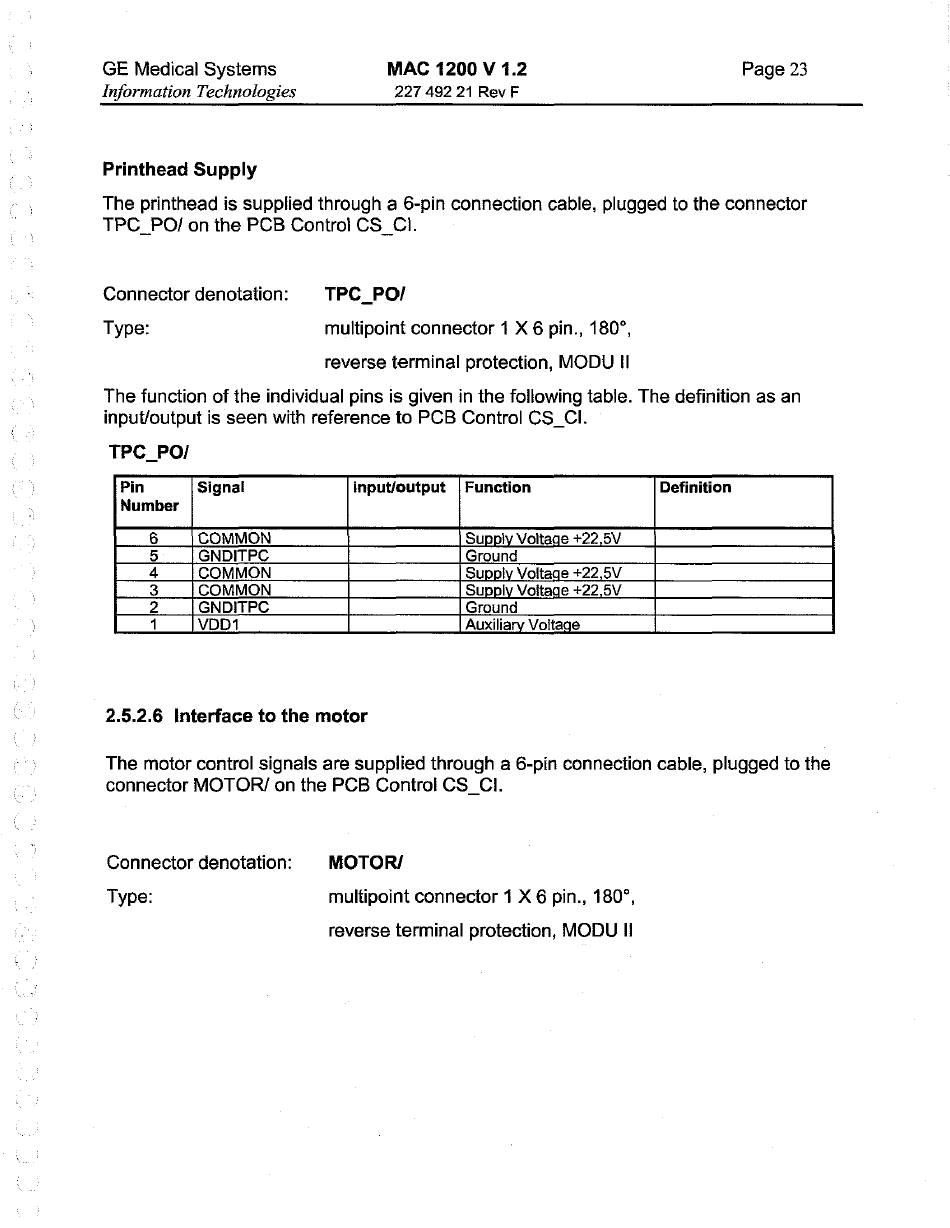

GE Medical Systems
Information Technologies
MAC 1200 V 1.2
227 492 21 Rev F
Page 23
Printhead Supply
The printhead is supplied through a 6-pin connection cable, plugged to the connector
TPC PO/ on the PCB Controi CS CI.
Connector denotation: TPC_PO/
Type: multipoint connector 1 X 6 pin., 180°,
reverse terminal protection, MODU Il
The function of the individual pins is given in the following table. The definition as an
input/output is seen with reference to PCB Control CS CI.
TPC PO/
Pin
Number
Function
Signal input/output Definition
6 COMMON Su M +22,5V
GNDIT
4 N
M
GND
2.5.2.6 Interface to the motor
nd
+22
№ e +22,5V
nd
The motor control signals are supplied through a 6-pin connection cable, plugged to the
connector MOTOR/ on the PCB Control CS Ci.
Connector denotation: MOTOR/
Type: multipoint connector 1 X 6 pin., 180°,
reverse terminal protection, MODU I!
