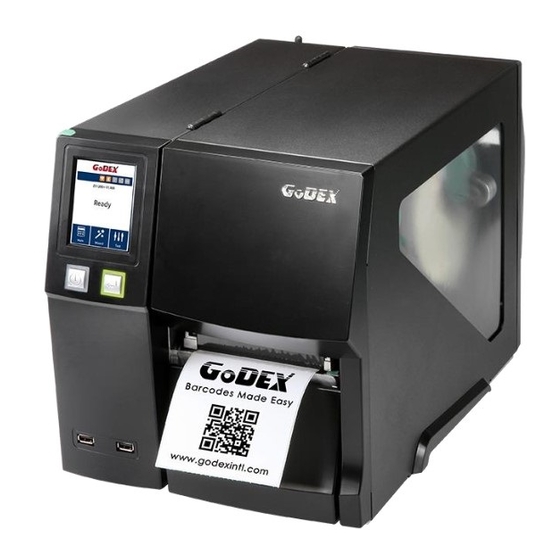

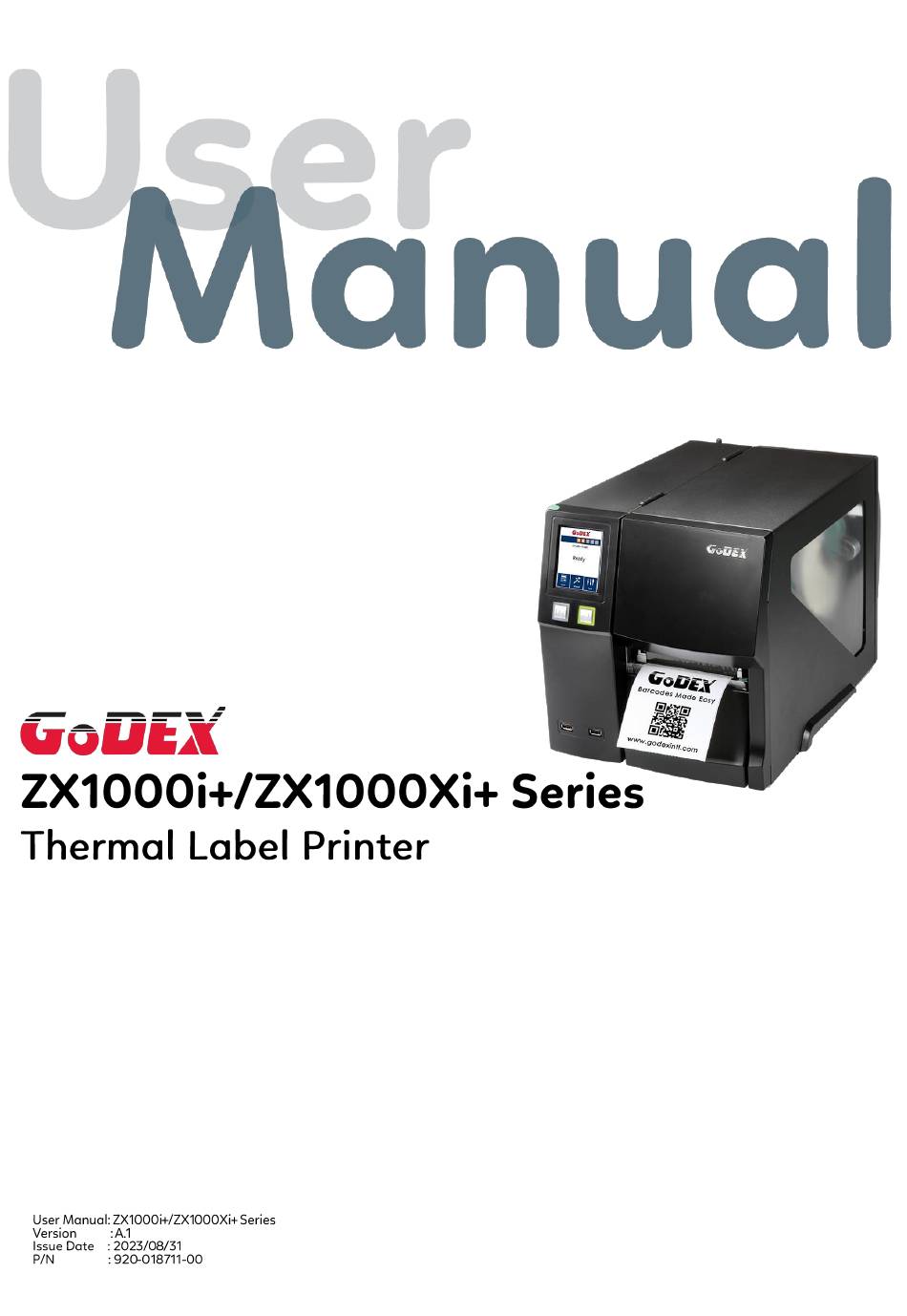

Godex ZX1000i+ Series User Manual

Thermal label printer
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZX1000i+ Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Godex ZX1000i+ Series

Summary of Contents for Godex ZX1000i+ Series

  • Page 2 ............................................5 .............................................. 5 ........................................ 6 ................................................8 ..........................................8 ......................................12 ..................................14 ....................................15 ..........................................21 ............................................21 .........................................22 .........................................27 ......................................33 ............................................35 ..............................................37 .............................................39 ....................................39 ........................................40 ...............................................47 ..........................................47 ..........................................48 ...........................................51 ..................................51 ........................................52 ........................................53 .......................................54 ................................55 .........................................56 ............................................57 ...........................................58 ........................................59 ─ ..........................64 ─ ............................66 ─...
  • Page 3 ● ● ● ●...
  • Page 6 Stylus pen Printer cover Touch panel Viewing window Power button Feed button Lower cover plate USB Host Feed slot for continuous labels Calibration button Ethernet port Serial port (DB-9) Applicator Interface(OPTION) USB port USB Host Parallel port(OPTION) Power jack On/Off switch...
  • Page 7 Ribbon rewind hub Ribbon supply hub Print mechanism Platen roller Release lever for print head Paper guide Label tension guide Label roll guide Label supply hub Adjustable Sensor Paper guide...
  • Page 8 ： ： Place the printer on a flat surface and open the printer cover Turn it anticlockwise to a top right position as shown in the illustration...
  • Page 9 Now slide the label roll guide forward and fold it down Place the label roll on the label supply hub, pushing it right up to the printer housing. (Do not apply too much pressure to avoid damaging the label stock.)
  • Page 10 Load the label roll into the printer as shown in the illustration. Pass it through the printer as indicated by the red arrows. Pass the label stock through the Adjustable Sensor and up to the tear-off plate.
  • Page 11 2. Return the print head release lever to its original position. 1. The labels pass between the wall of the printer housing and the adjustable paper guide. Then close the printer cover.
  • Page 12 Place the printer on a flat surface and open the printer cover Place a new ribbon on the ribbon supply hub. The two illustrations as below show you how to install the ribbon depending on the ribbon type (ink side in or out). Ink side out Ink side out...

  • Page 21: Operation Touch Panel

    OPERATION TOUCH PANEL TOUCH PANEL FEED BUTTON POWER BUTTON...
  • Page 22 Power on Tap the screen with your finger or the stylus pen when you want to select on screen items such as settings icons.
  • Page 23 Tap “Main” -- Screen could show more detail of “Main” Tap “Wizard “-- Set up printer of “Darkness” “Speed” ... Tap “Test”-- self-Test page and Out of Dump Mode for setting.
  • Page 24 finish setting tap back to main page if do not save, tap system would not save any changes. UNLOCK LOCK If printer functions locked, printer can not receive any commands from GoLabel or any devices.
  • Page 25 From the Home screen, tap to Main Page. From the Main Page tap Recall Label to Recall Label Page.
  • Page 26 From the Recall Label page, the touch panel shown on all labels. The Data processing time will be extended as long as the labels increase. to choose labels. to choose labels. Label can see printing label Keeping tap to next page Print out selected label.
  • Page 29 繁體中文 簡體中文 日本語 усский...

  • Page 32: Warning Icon

    WARNING ICON ERROR ICON ERROR DESCRIPTION...
  • Page 33 Model & Version USB ID setting Serial port setting MAC address of Ethernet port IP protocol setting IP address of Ethernet port Gateway setting Netmask setting Number of DRAM installed Image buffer size Number of forms Number of graphics Number of fonts Number of Asian fonts Number of Databases Number of Scalable fonts...

  • Page 34: Calibration Button

    CALIBRATION BUTTON Press Press...

  • Page 35: Lcd Touch Panel

    OPERATION TOUCH PANEL LCD TOUCH PANEL FEED BUTTON POWER BUTTON...
  • Page 37          ...
  • Page 38 ─────────────────────────────────────────────────────────────────── ────────────────────...
  • Page 47 Place the printer on a flat surface and open the printer cover μ μ...
  • Page 48 Unscrew the screw marked in the illustration on the front of the printer, which secures the lower cover plate. Remove lower cover plate to the a little bit right then can get out.
  • Page 49 Connect the cutter cable connector to the cutter jack on the printer. Be sure the cutter module insert to printer properly. (see red arrow)
  • Page 50 Secure the cutter module on the printer housing using the screws. Finish the cutter module installed. Now load the label roll into the printer and close the printer cover.
  • Page 51 Open the printer cover. using a screwdriver or a coin, loosen the screw to take out the TPH module. Turn the print head counterclockwise to a top right position Hold the print head module, pull out the TPH cable smoothly. To install TPH module, follow the reverse order.
  • Page 52 Open the printer cover. using a screwdriver or a coin to loosen the screw Turn the print head counterclockwise to a top right position If no improvement is visible, turn the screws(A) indicator board clockwise or counterclockwise as far as possible and be sure to align with the indicator board and indicator line.
  • Page 55 Open the printer cover. using a screwdriver or a coin to loosen the screw When using a variety of label stock and ribbons, the ink may not be evenly distributed. If there is no printed image on one side of the paper , or the ribbon wrinkles, the print head pressure must be readjusted using the TPH spring boxes.
  • Page 56 〫 Reset Mark 即可取出印 表頭...
  • Page 57 Unscrew the screw at the bottom of cutter. Remove the cutter cover. Clean and remove jammed paper. Reinstall CUTTER back onto printer.
  • Page 58 ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦...
  • Page 59 ─ 、 、 、 、 、 、...
  • Page 60 、 、 、 、 、 、...
  • Page 62 ─   ：...
  • Page 63   ...
  • Page 64 ─ Step 1. Step 2. Applicator module Step 3. Parallel module...
  • Page 66 ─ Plug label dispenser connector into the Open the right side connection port cover Install label dispenser cover and screw Remove leftmost and 10. Install roller combination rightmost screws 11. Install backing paper recycling roller Remove the front cover combination Remove the plug 12.
  • Page 67 ─ Remove the screws Unattach the option cover Unattach the connector Insert BT Module Plug the connector Put the option cover back and screw it...
  • Page 68 ─...
  • Page 72 Values may vary according to the actual situation Port NO. range of setting: 500~65535...
  • Page 74 ─ * Quick setting only supports GoLabel 1.15K and Arm 7 (FW1.100) Or Arm 9 (FW2.00A) or higher version...
  • Page 80 ─ 1. Open TPH rotary arm Check whether the rewinder knob is in closed position 2. Install the label roll Label Liner 4. Close TPH rotary arm and the printer is 3. Pull the Liner back to ready to print rewinder shaft and rotate it in 2~3 circles Rewind shaft...
  • Page 81 1. Have the rewinder knob to straight position 2. Pull the Liner roll USER MANUAL ENDI...
  • Page 82 ─ Overview Of Perforation Cutter CONNECTION CABLE OF CUTTER COVER ， (Power off the printer and remove the power cable before installing the perforation cutter module) 1. Loose the screw (as circle indicated). Remove the cover panel by pushing to the direction of right-hand side.
  • Page 83 Plug in the cable connector to the bottom 5-PIN jack of printer’s left panel Insert the perforation cutter module to dock with the printer Hold the perforation cutter module firmly and tighten the screw Load consumables and close printer cover Installation is now complete...
  • Page 85 ─ CONNECTION CABLE OF CUTTER cover...
  • Page 86 Plug in the cable connector to the bottom 5-PIN jack of printer’s left panel Insert the cutter module to dock with the printer Hold the cutter module firmly and tighten the screw Installation is now Load consumables and close printer cover complete Caution ****Printer power should be off when plugging the connector to avoid malfunction...
  • Page 88 ─ Plastic tubes & Platen module bracket Lebal bracket Label stop plate Label holder - UP Label holder - Down High-speed cutter Ticket tray Loose the screw (as the picture shows). Tilt the front cover forward and move it to the right and release.
  • Page 89 Assemble the label stop plate and plastic tubes. ※ (Please remove the double-sided adhesive backing paper on the label stop plate.) Install the label bracket and the label holders respectively. During the installation, push the parts to the left end and fix them with double-sided tape.
  • Page 90 When installing the cutter, plug in the cable into the socket first, then insert the left side of the cutter into the mechanism fillister.(as shown in the picture) Finally fix the cutter with screws(as shown in the picture) Snap the ticket tray to the cover of cutter to complete the installation.
  • Page 91 CONNECTION CABLE OF CUTTER TICKET TRAY Anti-Static tape The applicable F/W version is V2.100 or above ※...

This manual is also suitable for:

Zx1000xi+ series
