The eVolve Smart is capable of detecting the following operating errors.
All of them will be displayed with a specific number of red light blinks:
- D state Error
- E state Error
- Proximity Error
- Negative PWM voltage Error
- Non-current selected Error (Dip-Switch)
- Welded contact Error
- Locking System Error
- Communication Error
- No input voltage Error
- Maximum temperature Error
- Minimum temperature Error
Whatever the error case is, the Charge Point will stop charging and
technical assistance will be required, except from the temperature errors.
In this last case, the Charge Point starts charging when the operating
temperature is reached again.
In the following sections it will be explained how the eVolve indicates the
above mentioned errors and the actions taken by the Charge Point.
i
1 — D S T A T E E R R O R
In some old EVs, this state means that there are some gases coming out
from the batteries. So, an external ventilation in the car park might be
required. If this is the case, the status LED bar flashes permanently.
14
Please note each LED beacon is independent of the other.
1

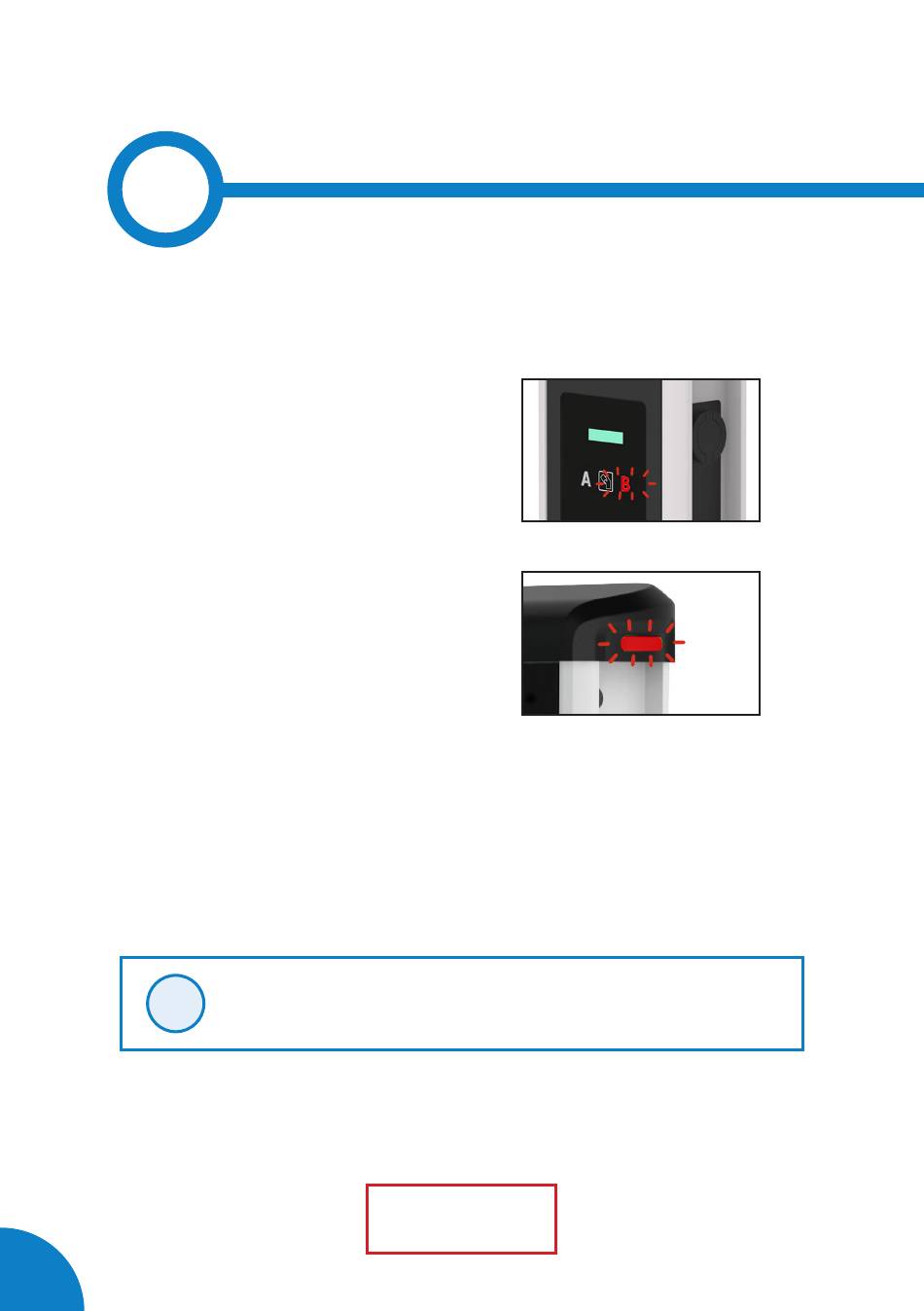

Blink Sequence
Wallbox
Post
