Chapter 1: Introduction
Channel bandwidth
The channel bandwidth depends on the modulation scheme that is
used. Devices compliant with the 802.11b standard use the CCK
(11 Mbps, 5.5 Mbps), DQPSK (2 Mbps), and DBPSK (1 Mbps)
modulation schemes. The SOHO 6 Wireless automatically selects
the modulation scheme that provides the lowest Packet Error Rate
(PER). The PER is never allowed to exceed 8%. When a different
modulation scheme is selected, the data rate changes accordingly.

SOHO 6 Wireless front and rear views

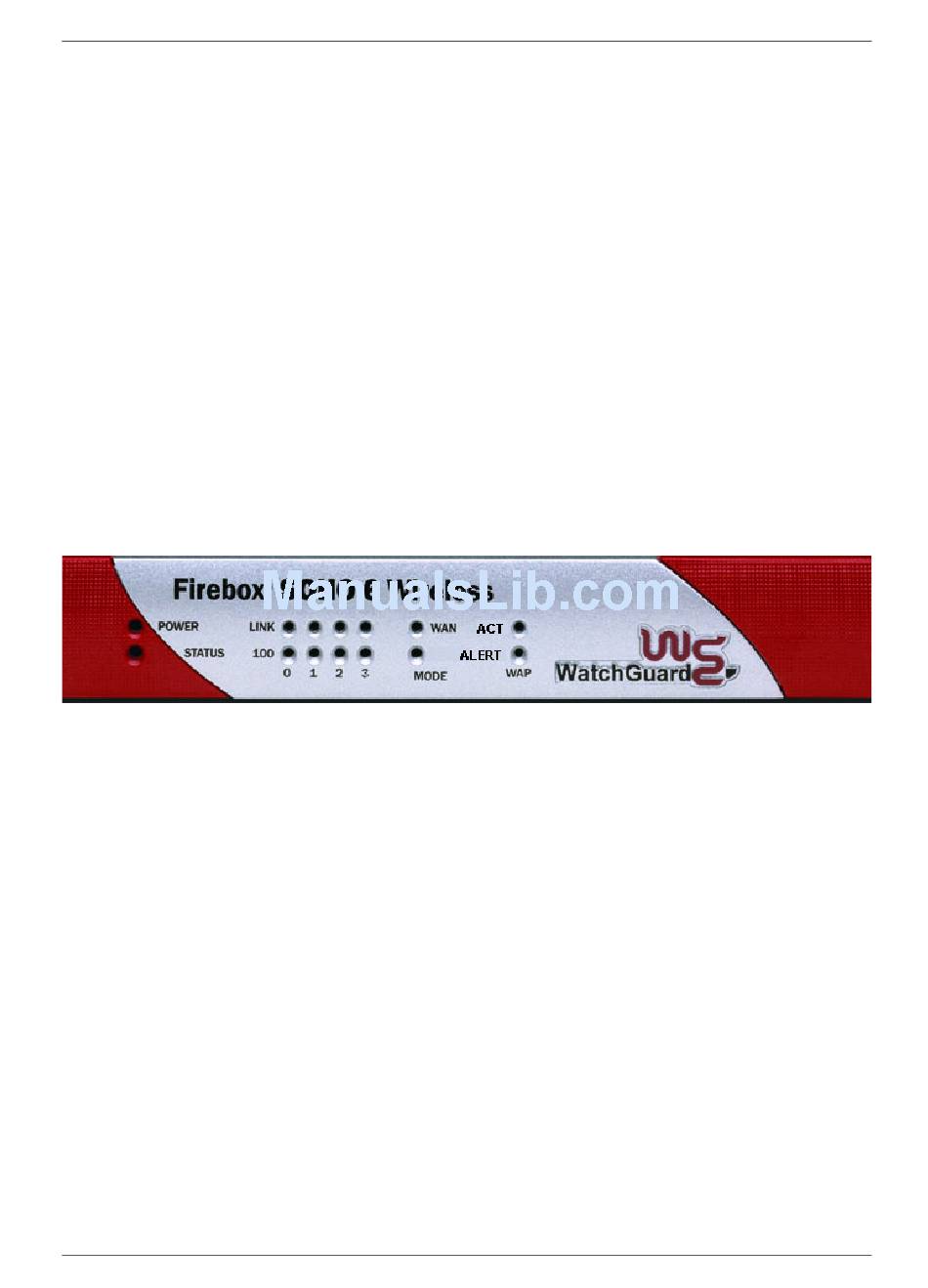

There are 14 indicator lights on the front panel of the SOHO 6
Wireless. The illustration below shows the front view.
PWR
PWR is lit while the SOHO 6 Wireless is connected to a
power supply.
Status
Status is lit while a management connection is in use.
Link
Link indicators are lit while there is an active physical
connection to the related Ethernet port. A link indicator
flashes when data flows through the Ethernet port.
100
The 100 indicator is lit when a port is in use at 100 Mb. The
100 indicator is not lit when a port is in use at 10 Mb.
